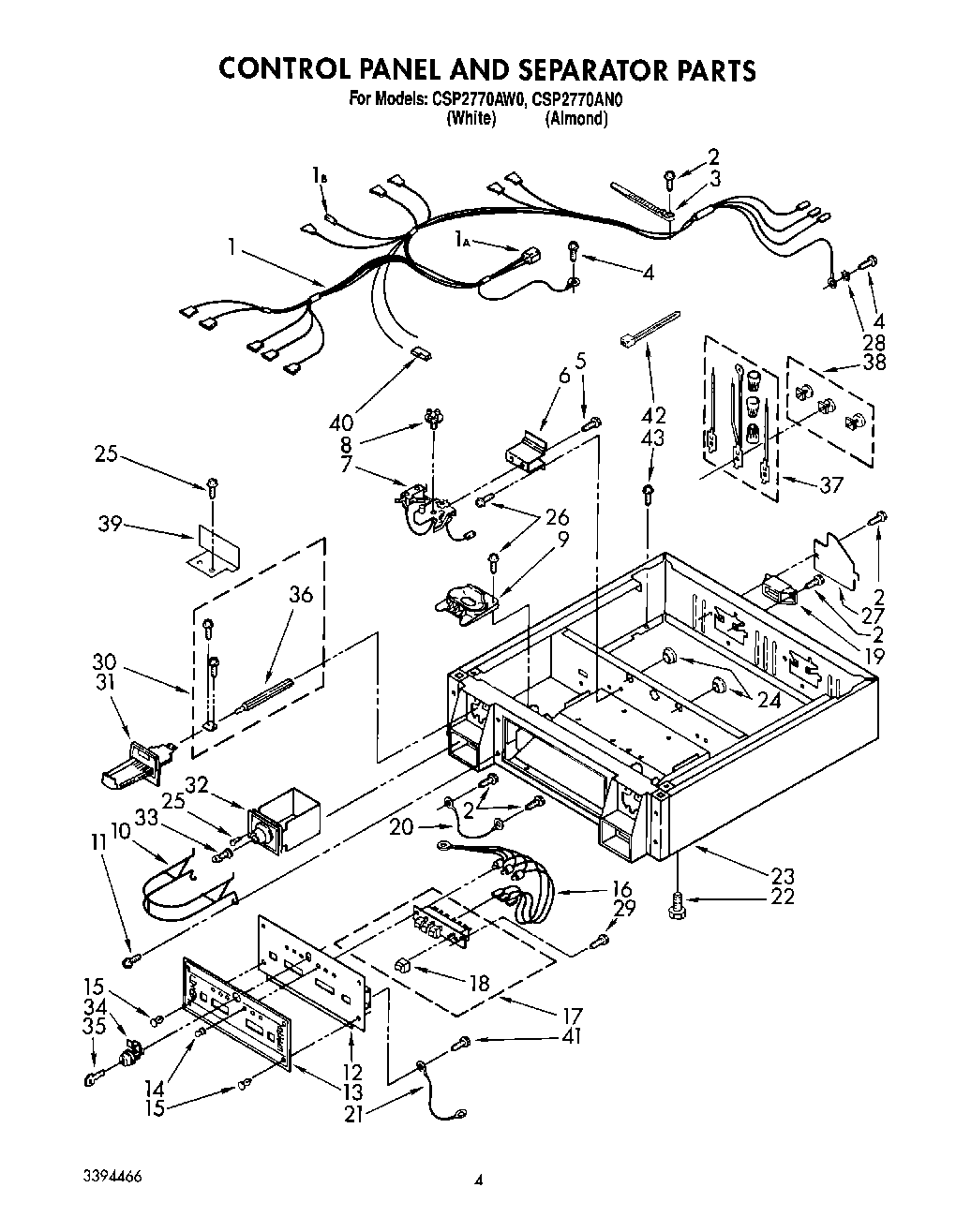

CSP2770AW0 02 – SECTION

Products

Position	Product
1B	Receptacle
1	Harness, Wire (2)
1A	Receptacle (2)
2	WP308544 Whirlpool Screw
3	WPL 3389969
4	W10850756 Whirlpool Screw
6	3390115 Whirlpool Bracket Assembly
7	279737 Whirlpool Dryer Load Timer
8	WP343777 Whirlpool Cam
8	WP3387974 Whirlpool Cam
8	WP339855 Whirlpool Cam
9	Funnel, Coin (2)
10	Protector, Slide (2)
11	Screw, 10-32 x 1/2
12	Panel, Control
13	Insert, Decorative
14	Lens, Light (6)
15	Rivet
16	Indicator, Light (2)
17	SWITCH-PB
18	Button (4)
19	279320 Whirlpool Dryer Rear Terminal Block Kit
20	Strut
21	Wire, Ground
22	WPL 122007
23	Collar (White)
23	Collar (Almond)
24	Bushing, Snap (2)
25	WP356418 Whirlpool Screw
26	Screw (8)
27	W11736322 Whirlpool Cover Assembly
28	Retainer, Terminal (2)
29	WP489128 Whirlpool Refrigerator Screw
30	Slide Extension Bag Assembly
31	Slide Mechanism (When Ordering, Specify Number Of Coins And Denomination)
32	Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart
33	Key, Money Box (When Ordering, Specify Vender of Money Box Lock)
34	Security Lock & Cam Assembly
35	Key, Service Door
36	B
37	279318 Whirlpool Terminal
38	279393 Whirlpool Terminal Block Screw and Nut Kit
39	3390424 Whirlpool Extension
40	Receptacle, Latching (2-Way) (Uses Terminal 94614)
41	303776 Whirlpool Dishwasher Screw
42	Tie, Cable
43	WP489069 Whirlpool Compactor Screw
