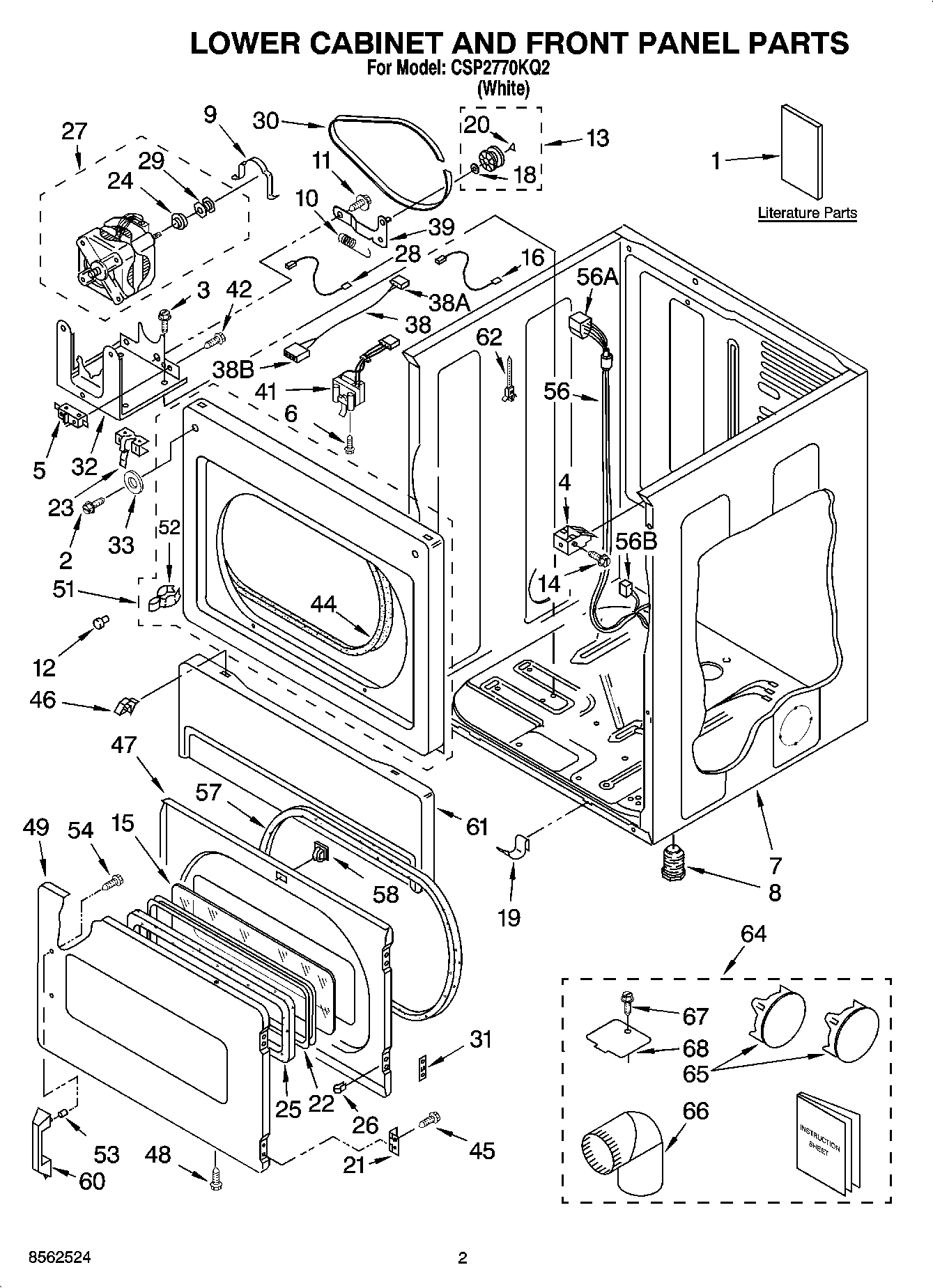

CSP2770KQ2 01 – LOWER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
WPL LIT8527882
WPL LIT8527883
WPL ARI22137A4
WPL LIT8527892
WPL LIT8527886
WPL LIT8562524
2WP3373329 Whirlpool Dishwasher Screw
3SCREW
43391846 Whirlpool Clip
5279782 Whirlpool Lid Switch
6WP3395530 Whirlpool Screw
7W11417441 Whirlpool Cabinet
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12693152 Whirlpool Bumper
13279640 Whirlpool Dryer Idler Pulley Kit
14681615 Whirlpool Screw
15Window (2)
16Wire, Belt Switch
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
223392914 Whirlpool Window Frame
23WP8066120 Whirlpool Lever Assembly
24WP3393657 Whirlpool Belt Retainer
25Gasket, Window
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
283398948 Whirlpool Wire
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
38B3936144 Whirlpool Connector
388283298 Whirlpool Wire Harness
38AWP717253 Whirlpool Dishwasher Connector
39W10837240 Whirlpool Dryer Idler Pulley
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47W10244331 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W10322548 Whirlpool Door Assembly
51Front Panel
53Fastener, Tubular
54Screw, 8-18 x 3/4 (Door Handle)
56Harness (Lower)
56BReceptacle, Latching (2-Way) (Uses Terminal 94614)
56APlug, Multi- Terminal 56B
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
60WP3392906 Whirlpool Door Handle
61WP3406797 Whirlpool Toe Panel
62WP3391018 Whirlpool Wire Tie
64W10470674 Whirlpool Dryer Side Vent Exhaust Kit
664“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
67WP488729 Whirlpool Refrigerator Door Screw
68WPW10354249 Whirlpool Cover
