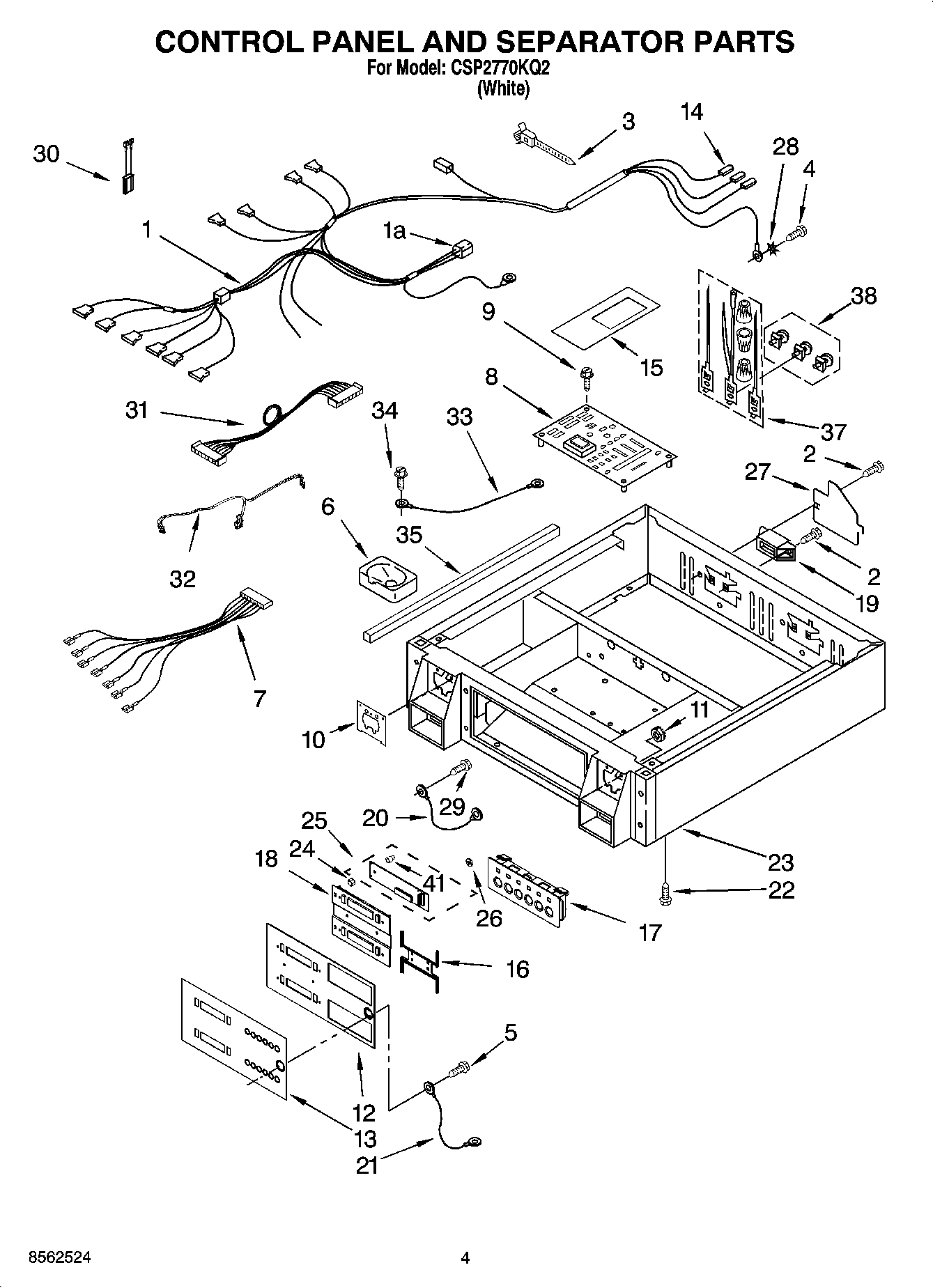

CSP2770KQ2 02 – CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
1A	Collar Harness (Upper 1A 692998 Receptacle (2))
1	Collar Harness (Lower)
2	W11676450 Whirlpool Screw
3	WP3391018 Whirlpool Wire Tie
4	W10850756 Whirlpool Screw
5	WP489128 Whirlpool Refrigerator Screw
6	WP385421 Whirlpool Coin Operated Laundry Funnel
7	Harness, Switch
8	Control Board
9	WPW10366705 Whirlpool Screw
10	279950 Whirlpool Funnel
11	WP3400029 Whirlpool Dishwasher Nut
12	Panel, Control
13	Insert & Button Overlay
14	WP94614 Whirlpool Terminal
15	Board-Shield
16	Bracket, Switch Mounting
17	Switch, Clean Touch (2)
18	Lens Display
19	WP3397659 Whirlpool Terminal Block
20	Wire, Ground
21	Jumper Wire
22	3400500 Whirlpool Screw
23	W10862444 Whirlpool Collar
24	WP486255 Whirlpool Air Conditioner Nut
25	Display Board Assembly (Includes Illus. 41)
26	Washer
27	W11539855 Whirlpool Refrigerator Pump
28	Retainer, Terminal (2)
29	WP489399 Whirlpool Refrigerator Screw
30	A.C. Line Filter
31	Harness, Control to Display
32	Harness, Wiring
33	Jumper Wire, Ground
34	303776 Whirlpool Dishwasher Screw
35	Seal, Foam
37	279318 Whirlpool Terminal
38	279393 Whirlpool Terminal Block Screw and Nut Kit
41	Stacking Spacer
