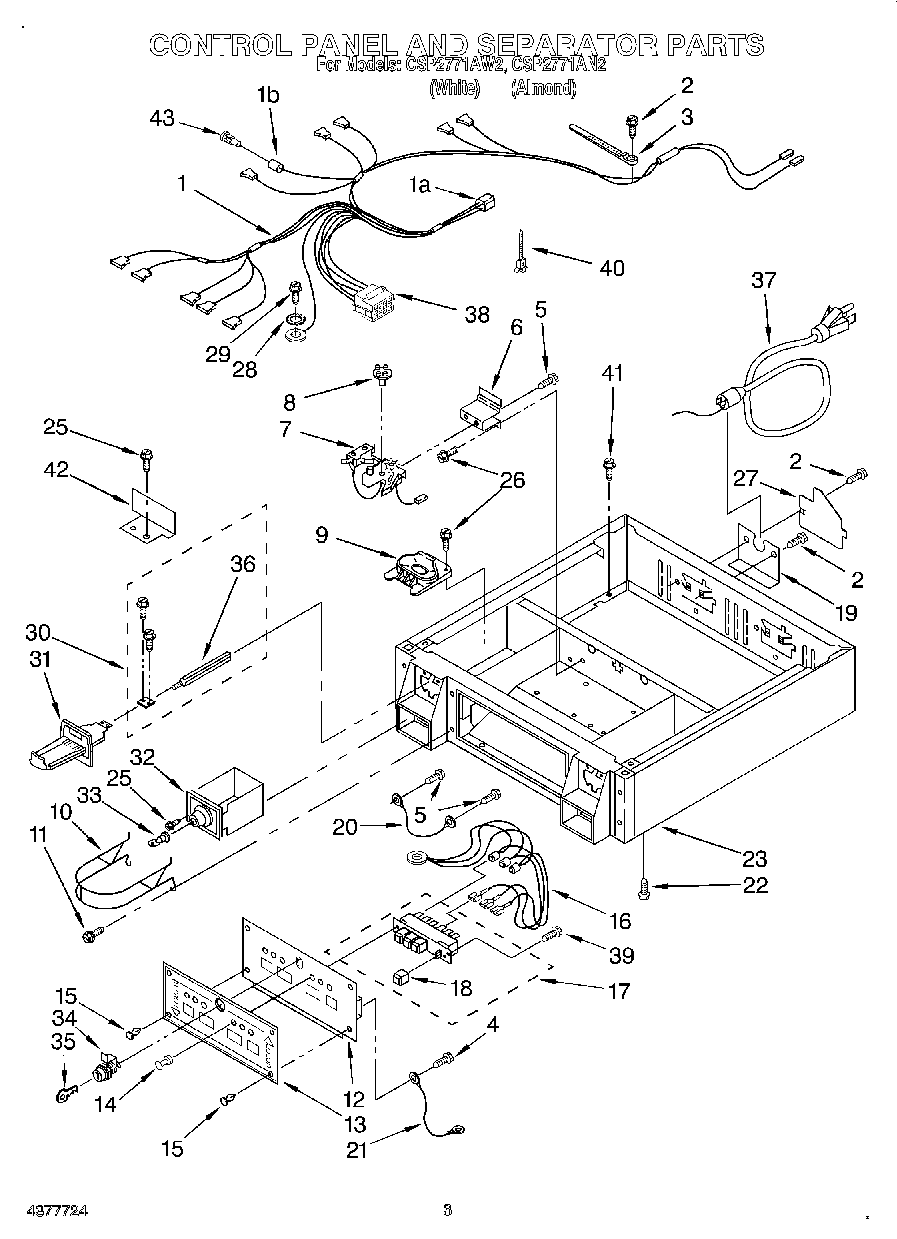

CSP2771AN2 03 – CONTROL PANEL AND SEPARATOR

Products

Position	Product
1A	Receptacle (2) (Uses Terminals 94614)
1	Harness, Wire (2)
1B	Receptacle
2	W11676450 Whirlpool Screw
3	WPL 3389969
5	303776 Whirlpool Dishwasher Screw
6	3390115 Whirlpool Bracket Assembly
7	279737 Whirlpool Dryer Load Timer
8	WP343777 Whirlpool Cam
8	WP3387974 Whirlpool Cam
9	Funnel, Coin (2)
10	Protector, Slide (2)
11	Screw, 10-32 x 1/2
12	Panel, Control
13	Insert, Decorative
14	Lens, Light (6)
15	Rivet
16	Lights, Indicator (240 Volts)
17	Switch, Pushbutton
18	Button (4)
19	3390189 Whirlpool Relief Valve
20	Strut
21	Wire, Ground
23	Collar (Almond)
23	Collar
25	WP356418 Whirlpool Screw
26	Screw (8)
27	W11539855 Whirlpool Refrigerator Pump
28	Retainer, Terminal (2)
29	W10850756 Whirlpool Screw
30	Slide Extension Bag Assembly
31	Slide Mechanism (When Ordering, Specify Number Of Coins And Denomination)
32	Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart
33	Key, Money Box (When Ordering, Specify Vender of Money Box Lock)
34	Security Lock & Cam Assembly
35	Key, Service Door
36	Bolt, Slide Mechanism
37	W11222083 Whirlpool Power Cord
38	Receptacle, Latching (2-Way) (Uses Terminal 94614)
39	WP489128 Whirlpool Refrigerator Screw
40	WP3391018 Whirlpool Wire Tie
41	3400500 Whirlpool Screw
42	3390424 Whirlpool Extension
43	Plug
