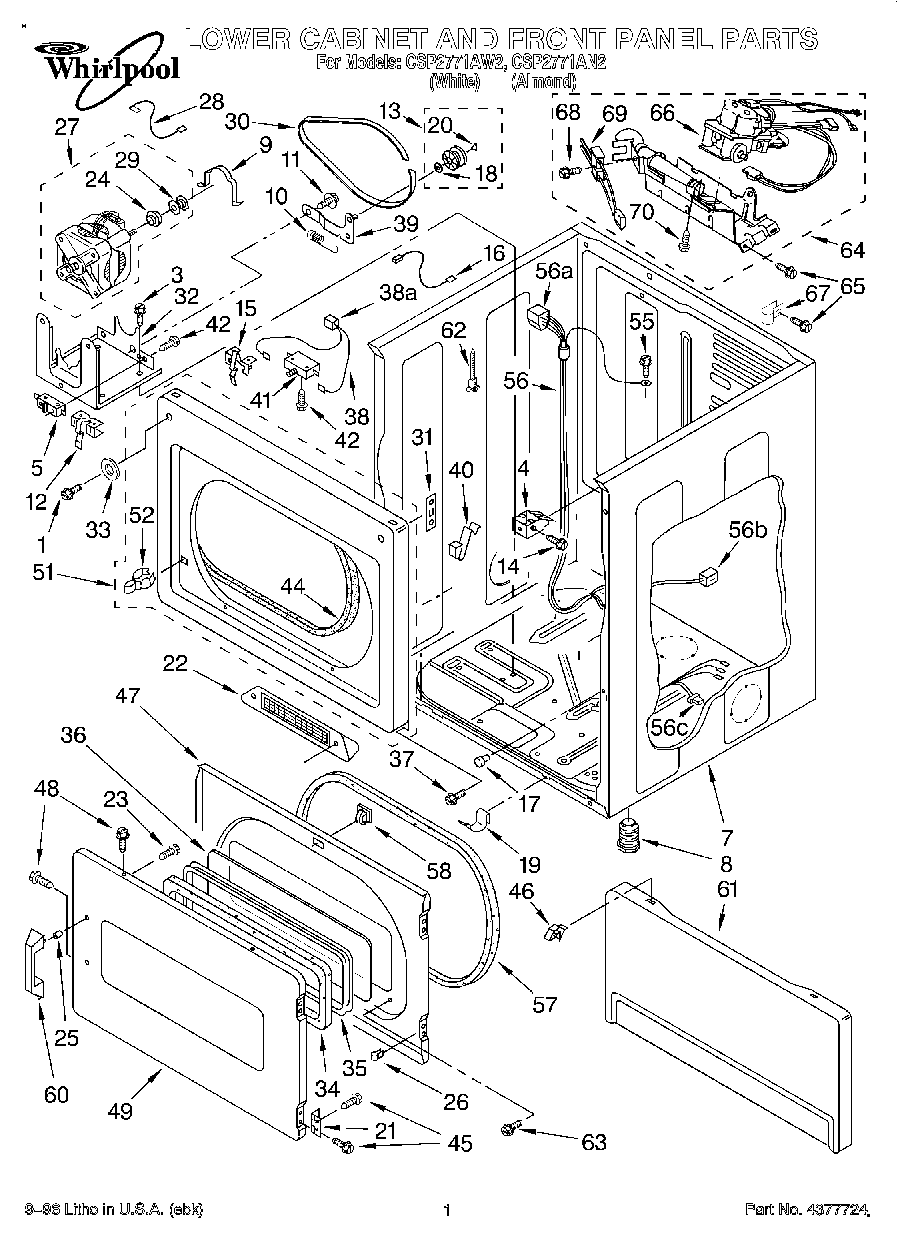

CSP2771AW2 01 – LOWER CABINET AND FRONT PANEL

Products

PositionProduct
1WP90767 Whirlpool Screw
43391846 Whirlpool Clip
5279782 Whirlpool Lid Switch
7Cabinet, Lower (Almond)
7Cabinet, Lower (White)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WP8066120 Whirlpool Lever Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14WP3387230 Whirlpool Screw
15WP691581 Whirlpool Actuator
16Wire, Belt Switch
17693152 Whirlpool Bumper
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
22Grill
23Screw, 8-18 x 3/4 (Door Handle)
24WP3393657 Whirlpool Belt Retainer
25Fastener, Tubular
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
283398948 Whirlpool Wire
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
34Gasket, Window
353392914 Whirlpool Window Frame
36Window (2)
37WP3373329 Whirlpool Dishwasher Screw
38AWP717253 Whirlpool Dishwasher Connector
38Harness, Door Switch
39W10837240 Whirlpool Dryer Idler Pulley
40Clip, Lint Duct
41W10820036 Whirlpool Door Switch Kit
42WP98129 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47W10244331 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W10322548 Whirlpool Door Assembly
49Door, Front (Almond)
51279723 Whirlpool Panel Assembly
51Front Panel
56BReceptacle, Latching (2-Way) (Uses Terminal 94614)
56CReceptacle, 3-Way Terminal (Use W/94614)
56Harness (Lower) 56A
56ABlock, Disconnect (12-Way) (Timer) (Use Term. 94613)
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
60WP3392906 Whirlpool Door Handle
60WPL 3392907
61WP3406797 Whirlpool Toe Panel
61WPL 697216
62WP3391018 Whirlpool Wire Tie
63Screw
64Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
65WP488729 Whirlpool Refrigerator Door Screw
66279923 Whirlpool Gas Valve
673387561 Whirlpool Clamp
68WPW10366705 Whirlpool Screw
69279311 Whirlpool Dryer Flat Igniter with Bracket
70WP693995 Whirlpool Screw
