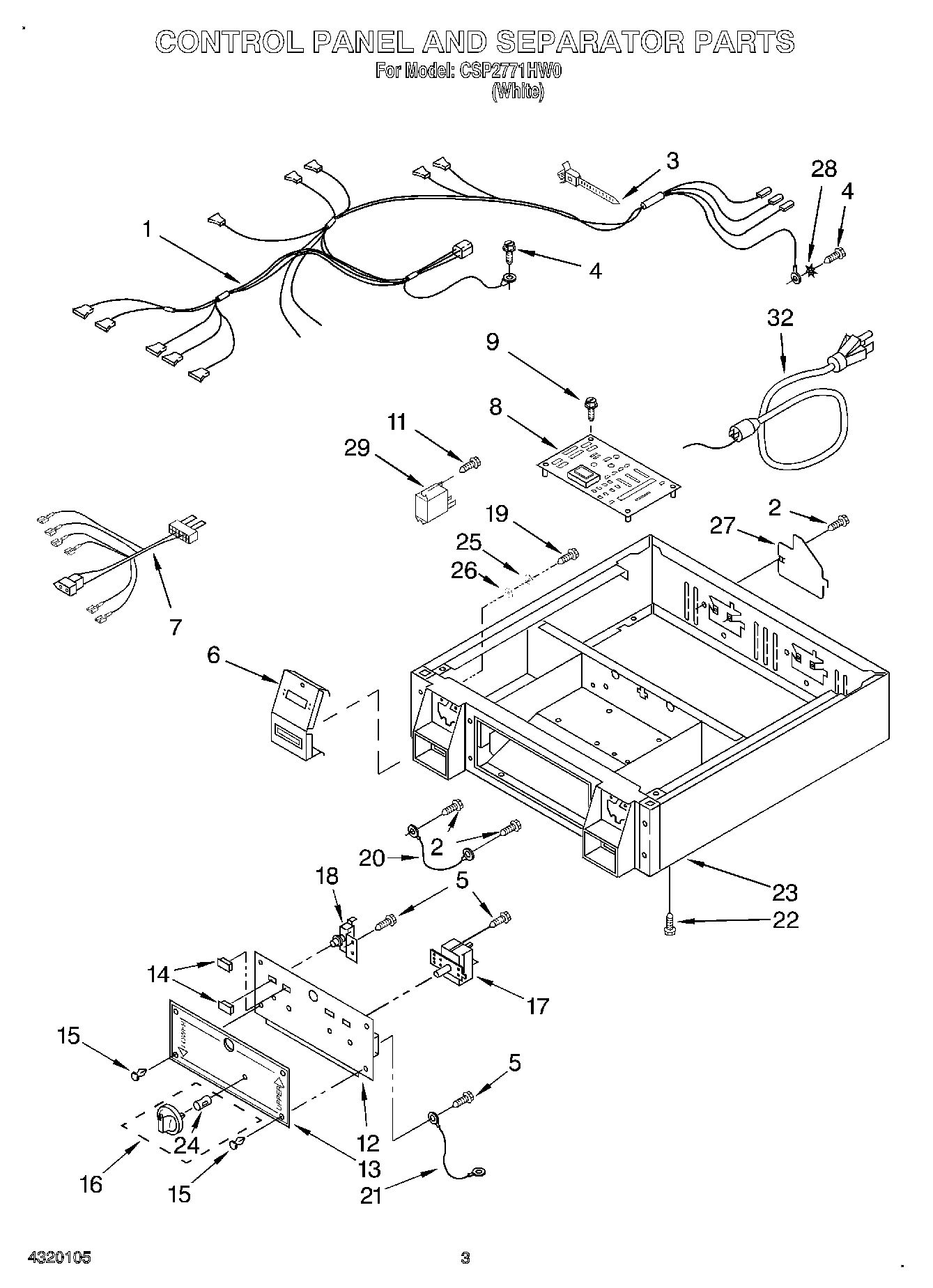

CSP2771HW0 03 – CONTROL PANEL AND SEPARATOR

CSP2771HW0 03 – CONTROL PANEL AND SEPARATOR

Written by

in

CSP2771HW0 03 – CONTROL PANEL AND SEPARATOR

Products

PositionProduct
1Harness, Wire (2)
2W11676450 Whirlpool Screw
3WP3391018 Whirlpool Wire Tie
4W10850756 Whirlpool Screw
5303776 Whirlpool Dishwasher Screw
6Card Reader Assy. (Upper Dryer)
6Card Reader Assy. (Lower Dryer)
7Harness, Console (Upper)
7Harness, Console (Lower)
8Control Board
9WPW10366705 Whirlpool Screw
11WP90767 Whirlpool Screw
12Panel, Control
13Insert, Decorative
14Lens, Light (2)
15Rivet, Serial Nameplate
16Knob (2)
17W10330141 Whirlpool Switch A & H
18Switch, Push- To-Start (2)
19Bolt, Mounting
20Strut
21Wire, Ground
223400500 Whirlpool Screw
23Collar
24WP688805 Whirlpool Spring Clip
251/4 Lock Washer
261/4 Lock Washer
27W11539855 Whirlpool Refrigerator Pump
28Retainer, Terminal (2)
29WP8566493 Whirlpool Relay
32W11222083 Whirlpool Power Cord
