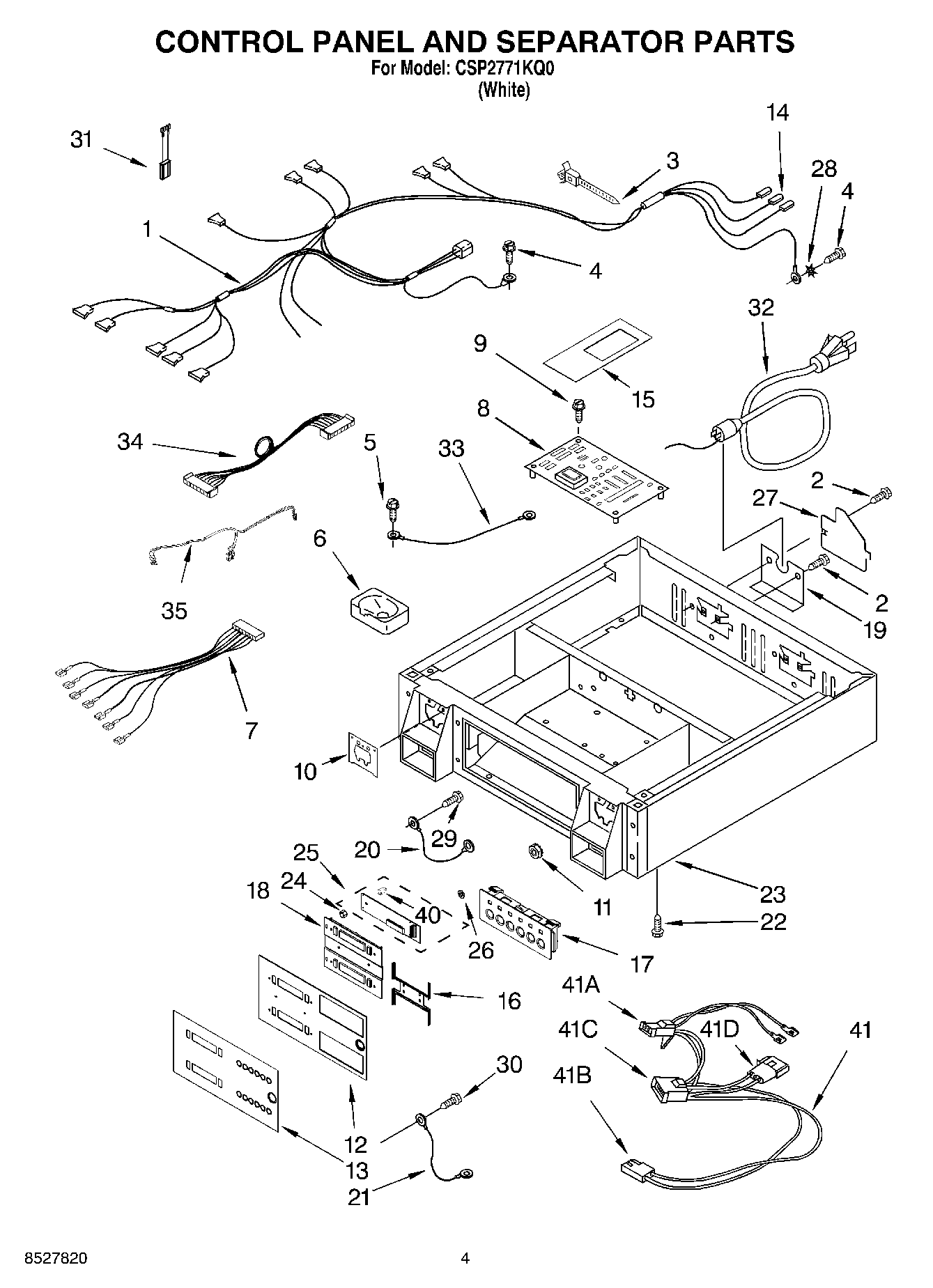

CSP2771KQ0 03 – CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
1	Collar Harness (Upper)
1	Collar Harness (Lower)
2	W11676450 Whirlpool Screw
3	WP3391018 Whirlpool Wire Tie
4	W10850756 Whirlpool Screw
5	303776 Whirlpool Dishwasher Screw
6	WP385421 Whirlpool Coin Operated Laundry Funnel
7	Harness, Switch
8	Control Board
9	WPW10366705 Whirlpool Screw
10	279950 Whirlpool Funnel
11	WP3400029 Whirlpool Dishwasher Nut
12	Panel, Control
13	Insert & Button Overlay
14	WP94614 Whirlpool Terminal
15	Board-Shield
16	Bracket, Switch Mounting
17	Switch, Clean Touch (2)
18	Lens Display
19	3390189 Whirlpool Relief Valve
20	Wire, Ground
21	Jumper Wire
22	3400500 Whirlpool Screw
23	W10862444 Whirlpool Collar
24	WP486255 Whirlpool Air Conditioner Nut
25	Display Board Assembly (Includes Illus. 41)
26	Washer
27	W11539855 Whirlpool Refrigerator Pump
28	Retainer, Terminal (2)
29	WP489399 Whirlpool Refrigerator Screw
30	WPW10141604 Whirlpool Screw
31	A.C. Line Filter
32	W11222083 Whirlpool Power Cord
33	Jumper Wire, Ground
34	Harness, Control to Display
35	Harness, Wiring
40	Stacking Spacer
41C	WP3403498 Whirlpool Connector
41B	Receptacle, Latching (2-Way) (Uses Terminal 94614)
41D	Plug, 3-Way
41	WP3401850 Whirlpool Wire Harness
41A	WP3403499 Whirlpool Connector
