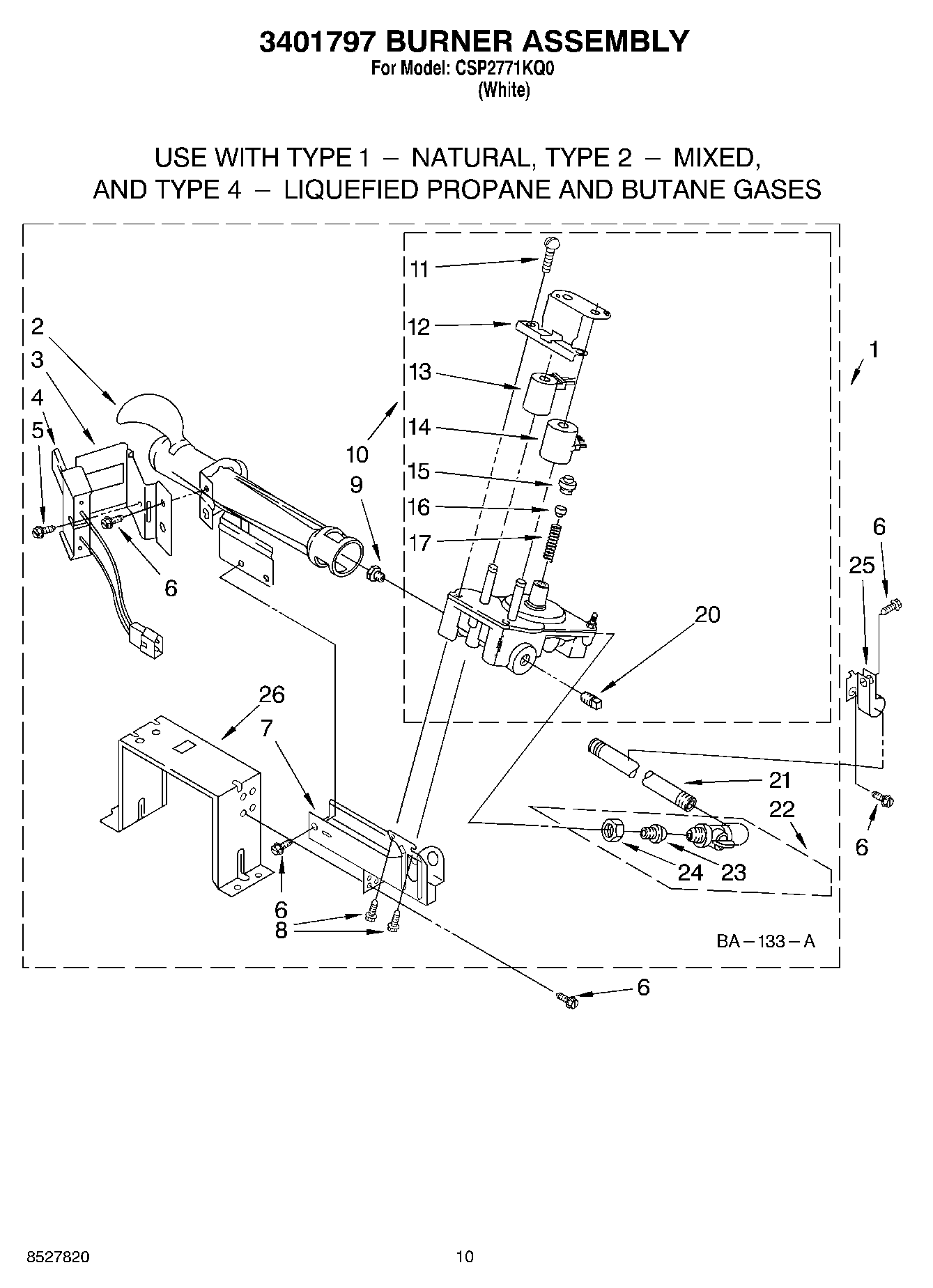

CSP2771KQ0 06 – 3401797 BURNER ASSEMBLY, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
IGNITER- T
350938 Whirlpool Spray Gun
285875 Whirlpool Security Kit
W11224254 Whirlpool Test Kit
4392067 Whirlpool Dryer Repair Kit
1Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9Orifice, Burner (Type 2)
9Orifice, Burner (Type 1)
10279923 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
20W10295523 Whirlpool Plug
21Pipe, Gas Supply
22697441 Whirlpool Valve
233393767 Whirlpool Pipe
24Nut, Compression
253387561 Whirlpool Clamp
26Bracket, Support
2649572A Whirlpool Dryer Propane Gas Conversion Kit
26Following Parts Not Illustrated
