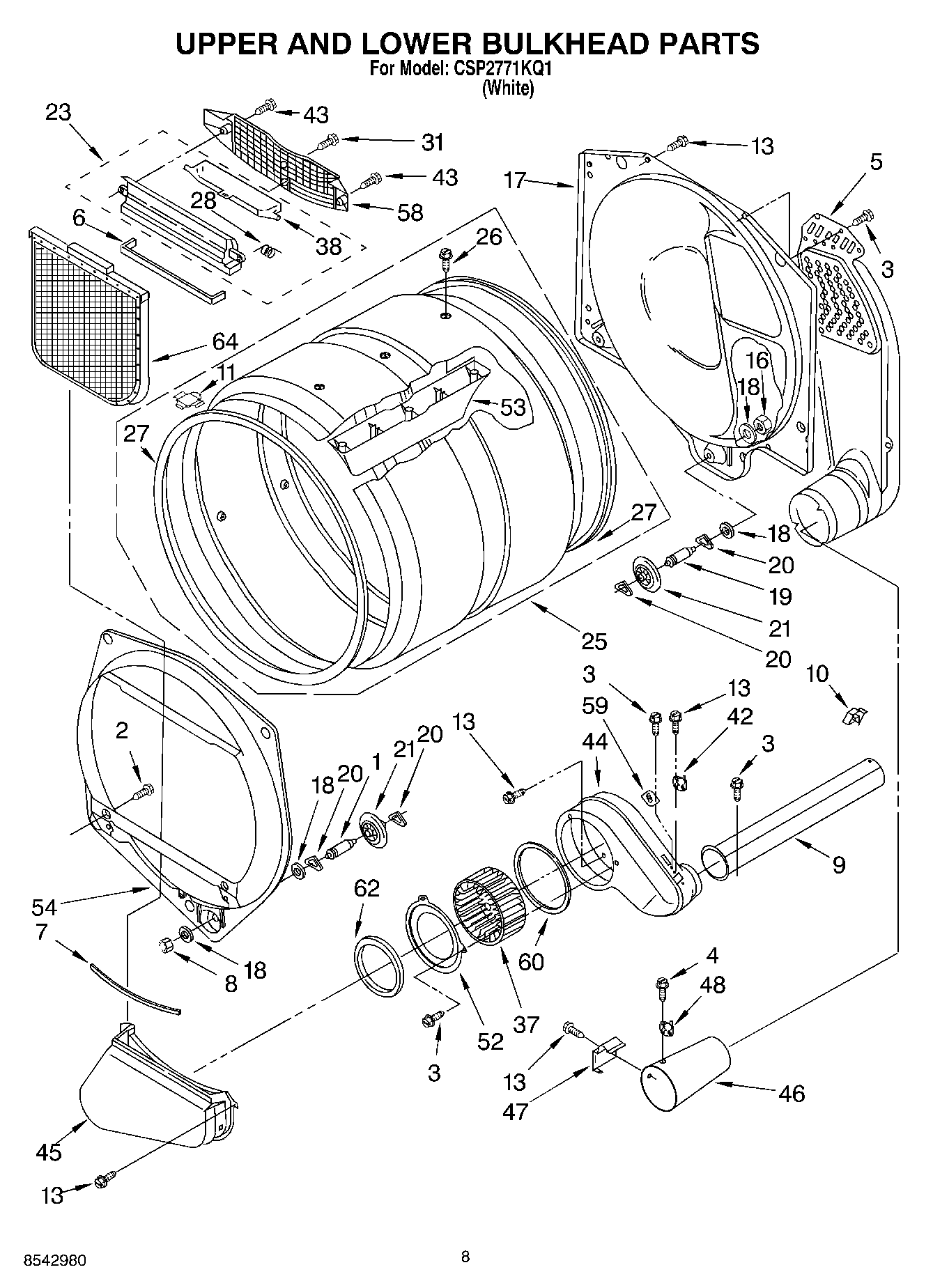

CSP2771KQ1 05 – OPTIONAL PARTS (NOT INCLUDED) UPPER AND LOWER BULK

Products

Position	Product
1	SHAFT
2	WP308685 Whirlpool Microwave Screw
3	WPW10139210 Whirlpool Screw
4	WP90767 Whirlpool Screw
5	W11168650 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WP3359452 Whirlpool Nut
9	279936 Whirlpool Exhaust Pipe
10	WP3388229 Whirlpool Dryer Spring Clip
11	8066086 Whirlpool Plug
13	WP488729 Whirlpool Refrigerator Door Screw
16	Nut, 3/8-16 (L.H.)
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
23	W11129408 Whirlpool Out Housing
25	W10545923 Whirlpool Drum Assembly
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WP3394986 Whirlpool Spring
37	WP697772 Whirlpool Dryer Blower Wheel
38	W11222846 Whirlpool Door
42	WP3387138 Whirlpool Cycling Thermostat
43	WP3387230 Whirlpool Screw
44	W10888146 Whirlpool Housing
45	Lint Duct Assembly
46	WP8066047 Whirlpool Funnel
47	WP338906 Whirlpool Dryer Gas Sensor
48	THRMST-FIX
52	279780 Whirlpool Plate Cover
53	WPW10113136 Whirlpool Drum Baffle
54	WP697557 Whirlpool Bulkhead Assembly
58	W11086603 Whirlpool Dryer Link Screen Air Grille
59	WP3392519 Whirlpool Dryer Thermal Fuse
60	WP697770 Whirlpool Blower Cover Plate Seal
62	WP8566209 Whirlpool Seal
64	4392067 Whirlpool Dryer Repair Kit
64	W11224254 Whirlpool Test Kit
64	W10120998 Whirlpool Dryer Lint Screen Filter
64	350930 Whirlpool White Spray Paint
64	72017 Whirlpool Appliance Touch-Up Paint White
64	350938 Whirlpool Spray Gun
64	285875 Whirlpool Security Kit
64	ACCESSORY PARTS
