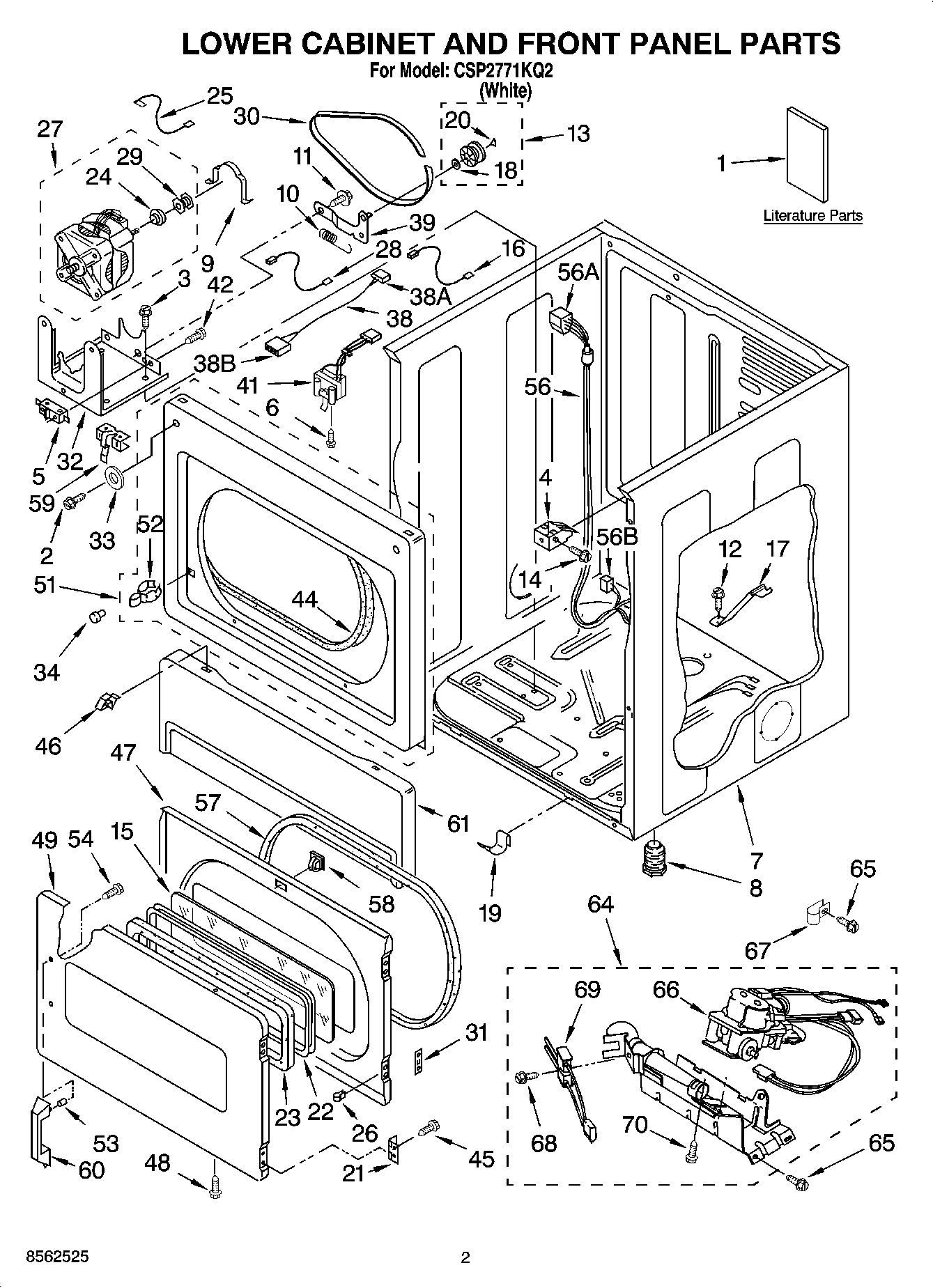

CSP2771KQ2 02 – LOWER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
NIWPL LIT8527886
NIWPL LIT8527894
NIWPL ARI144984A
NIWPL LIT8562525
NIWPL LIT8527882
1WPL LIT8527892
2WP3373329 Whirlpool Dishwasher Screw
3SCREW
43391846 Whirlpool Clip
5279782 Whirlpool Lid Switch
6WP3395530 Whirlpool Screw
7W11417441 Whirlpool Cabinet
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
14681615 Whirlpool Screw
15Window (2)
17W10181903 Whirlpool Bracket
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
223392914 Whirlpool Window Frame
23Gasket, Window
24WP3393657 Whirlpool Belt Retainer
253398948 Whirlpool Wire
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
28Wire, Belt Switch
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33Washer
34693152 Whirlpool Bumper
38AWP717253 Whirlpool Dishwasher Connector
38B3936144 Whirlpool Connector
388283298 Whirlpool Wire Harness
39W10837240 Whirlpool Dryer Idler Pulley
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47W10244331 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W10322548 Whirlpool Door Assembly
51Front Panel
53Fastener, Tubular
54Screw, 8-18 x 3/4 (Door Handle)
56Harness (Lower)
56BReceptacle, Latching (2-Way) (Uses Terminal 94614)
56ABlock, Disconnect (12-Way) (Timer) (Use Term. 94613)
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
59WP8066120 Whirlpool Lever Assembly
60WP3392906 Whirlpool Door Handle
61WP3406797 Whirlpool Toe Panel
64Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
65WP488729 Whirlpool Refrigerator Door Screw
66279923 Whirlpool Gas Valve
673387561 Whirlpool Clamp
68WPW10366705 Whirlpool Screw
69279311 Whirlpool Dryer Flat Igniter with Bracket
70WP693995 Whirlpool Screw
