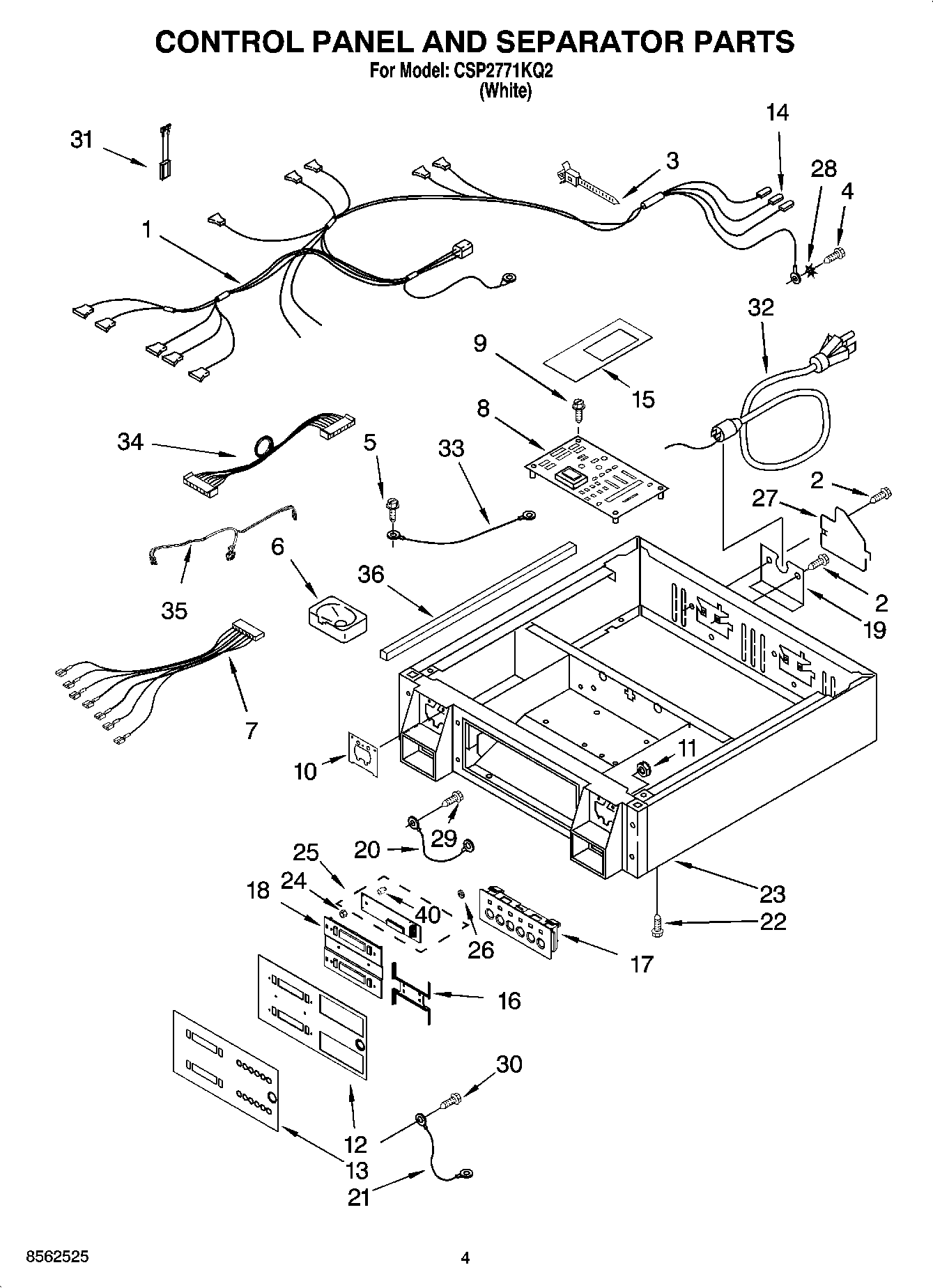

CSP2771KQ2 04 – CONTROL PANEL AND SEPARATOR PARTSadmin2025-04-26T09:38:50+00:00CSP2771KQ2 04 – CONTROL PANEL AND SEPARATOR PARTS
Products
| Position | Product |
|---|
| NI | Collar Harness (Upper) |
| 1 | Collar Harness (Lower) |
| 2 | W11676450 Whirlpool Screw |
| 3 | WP3391018 Whirlpool Wire Tie |
| 4 | W10850756 Whirlpool Screw |
| 5 | 303776 Whirlpool Dishwasher Screw |
| 6 | WP385421 Whirlpool Coin Operated Laundry Funnel |
| 7 | Harness, Switch |
| 8 | Control Board |
| 9 | WPW10366705 Whirlpool Screw |
| 10 | 279950 Whirlpool Funnel |
| 11 | WP3400029 Whirlpool Dishwasher Nut |
| 12 | Panel, Control |
| 13 | Insert & Button Overlay |
| 14 | WP94614 Whirlpool Terminal |
| 15 | Board-Shield |
| 16 | Bracket, Switch Mounting |
| 17 | Switch, Clean Touch (2) |
| 18 | Lens Display |
| 19 | 3390189 Whirlpool Relief Valve |
| 20 | Wire, Ground |
| 21 | Jumper Wire |
| 22 | 3400500 Whirlpool Screw |
| 23 | W10862444 Whirlpool Collar |
| 24 | WP486255 Whirlpool Air Conditioner Nut |
| 25 | Display Board Assembly (Includes Illus. 41) |
| 26 | Washer |
| 27 | W11539855 Whirlpool Refrigerator Pump |
| 28 | Retainer, Terminal (2) |
| 29 | WP489399 Whirlpool Refrigerator Screw |
| 30 | WP489128 Whirlpool Refrigerator Screw |
| 31 | A.C. Line Filter |
| 32 | W11222083 Whirlpool Power Cord |
| 33 | Jumper Wire, Ground |
| 34 | Harness, Control to Display |
| 35 | Harness, Wiring |
| 36 | Seal, Foam |
| 40 | Stacking Spacer |
