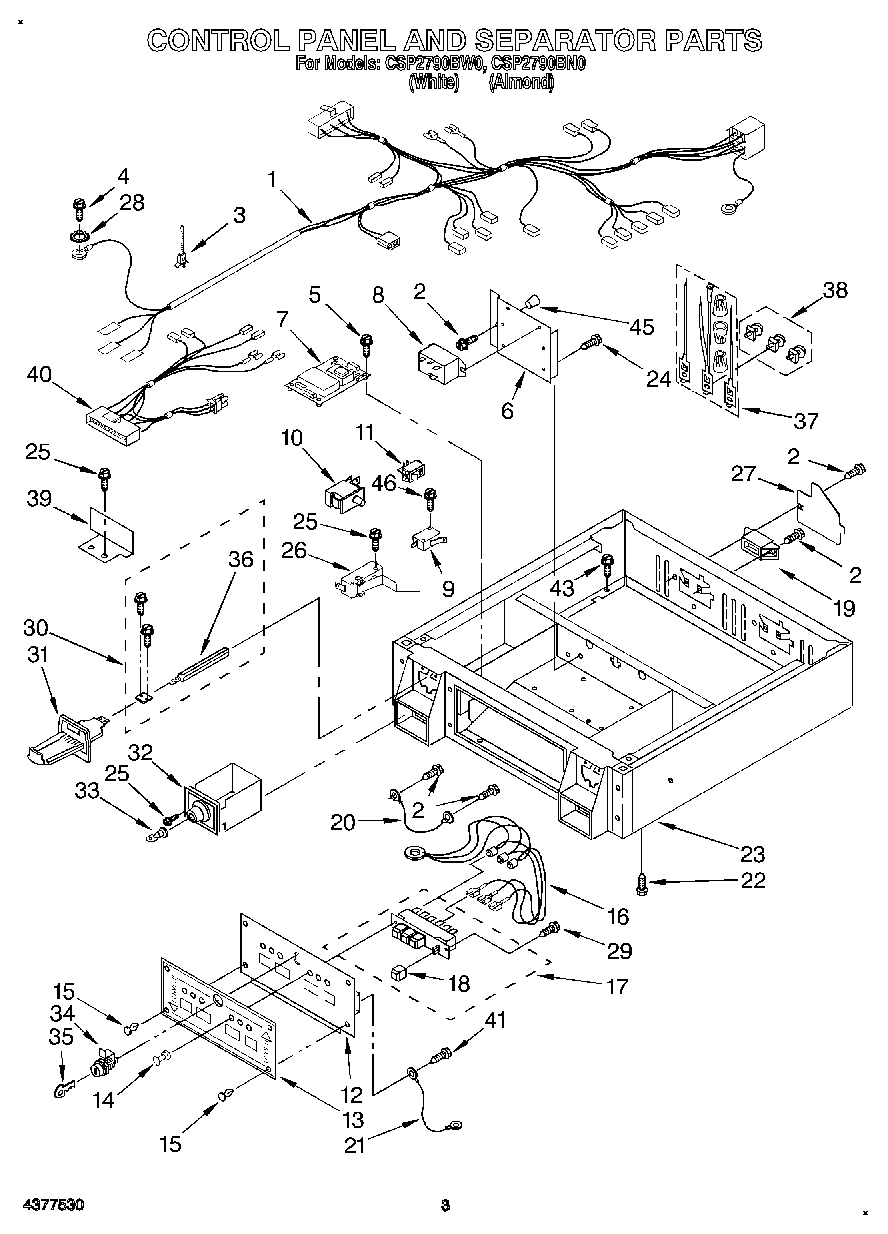

CSP2790BW0 02 – CONTROL PANEL AND SEPARATOR

Products

Position	Product
1	Harness, Wire (2)
2	W11676450 Whirlpool Screw
3	WP3391018 Whirlpool Wire Tie
4	W10850756 Whirlpool Screw
5	WPW10366705 Whirlpool Screw
6	Bracket, Relay
7	Timer, 60 Hz.
8	WP8566493 Whirlpool Relay
9	Switch, Service Door (2)
10	Switch, Coin Simulator (2)
11	Switch, Power Interrupt (2)
12	Panel, Control
13	Insert, Decorative
14	Lens, Light (6)
15	Rivet
16	Lights, Indicator (240 Volts)
17	Switch, Pushbutton
18	Button (4)
19	279320 Whirlpool Dryer Rear Terminal Block Kit
20	Strut
21	Wire, Ground
22	3400500 Whirlpool Screw
23	Collar
23	Collar (Almond)
24	WP313808 Whirlpool Screw
25	WP3395530 Whirlpool Screw
26	Switch, Money (2) Vault
27	W11539855 Whirlpool Refrigerator Pump
28	Retainer, Terminal (2)
29	WP489128 Whirlpool Refrigerator Screw
30	Slide Extension Bag Assembly
31	Slide Mechanism (When Ordering, Specify Number Of Coins And Denomination)
32	Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart
33	Key, Money Box (When Ordering, Specify Vender of Money Box Lock)
34	Security Lock & Cam Assembly
35	Key, Service Door
36	Bolt, Slide Mechanism
37	279318 Whirlpool Terminal
38	279393 Whirlpool Terminal Block Screw and Nut Kit
39	3390424 Whirlpool Extension
40	Harness Accountabilty
41	303776 Whirlpool Dishwasher Screw
43	WP488729 Whirlpool Refrigerator Door Screw
44	Plug
45	W10491983 Whirlpool Tine Tip
46	WPL 312717
