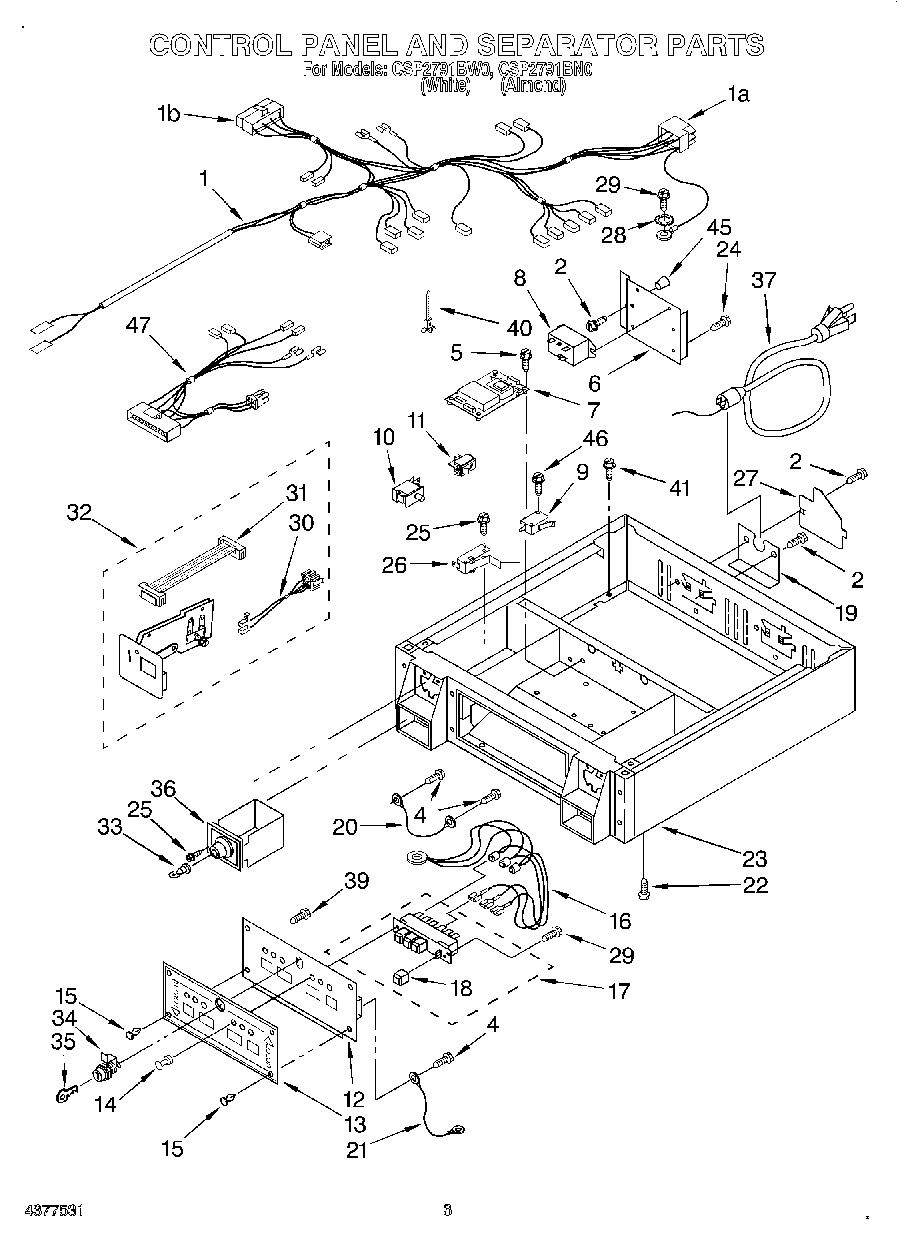

CSP2791BN0 02 – CONTROL PANEL AND SEPARATOR

CSP2791BN0 02 – CONTROL PANEL AND SEPARATOR

Written by

in

CSP2791BN0 02 – CONTROL PANEL AND SEPARATOR

Products

PositionProduct
1AReceptacle (2) (Uses Terminals 94614)
1BReceptacle
1Harness, Wire (2)
2W11676450 Whirlpool Screw
4303776 Whirlpool Dishwasher Screw
5WPW10366705 Whirlpool Screw
6Bracket, Relay
7Timer, 60 Hz.
8WP8566493 Whirlpool Relay
9Switch, Service Door (2)
10Switch, Coin Simulator (2)
11Switch, Power Interrupt (2)
12Panel, Control
13Insert, Decorative
14Lens, Light (6)
15Rivet
16Lights, Indicator (240 Volts)
17Switch, Pushbutton
18Button (4)
193390189 Whirlpool Relief Valve
20Strut
21Wire, Ground
223400500 Whirlpool Screw
23Collar (Almond)
23Collar
24WP313808 Whirlpool Screw
25WP3395530 Whirlpool Screw
26Switch, Money (2) Vault
27W11539855 Whirlpool Refrigerator Pump
28Retainer, Terminal (2)
29W10850756 Whirlpool Screw
30Harness-Strip Display
31Switch, Optic
32Coin Drop Assy.
33Key, Money Box (When Ordering, Specify Vender of Money Box Lock)
34Security Lock & Cam Assembly
35Key, Service Door
36Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart
37W11222083 Whirlpool Power Cord
38Receptacle, Latching (2-Way) (Uses Terminal 94614)
39WP489128 Whirlpool Refrigerator Screw
40WP3391018 Whirlpool Wire Tie
41WP489069 Whirlpool Compactor Screw
45W10491983 Whirlpool Tine Tip
46WPL 312717
47Harness Accountabilty
