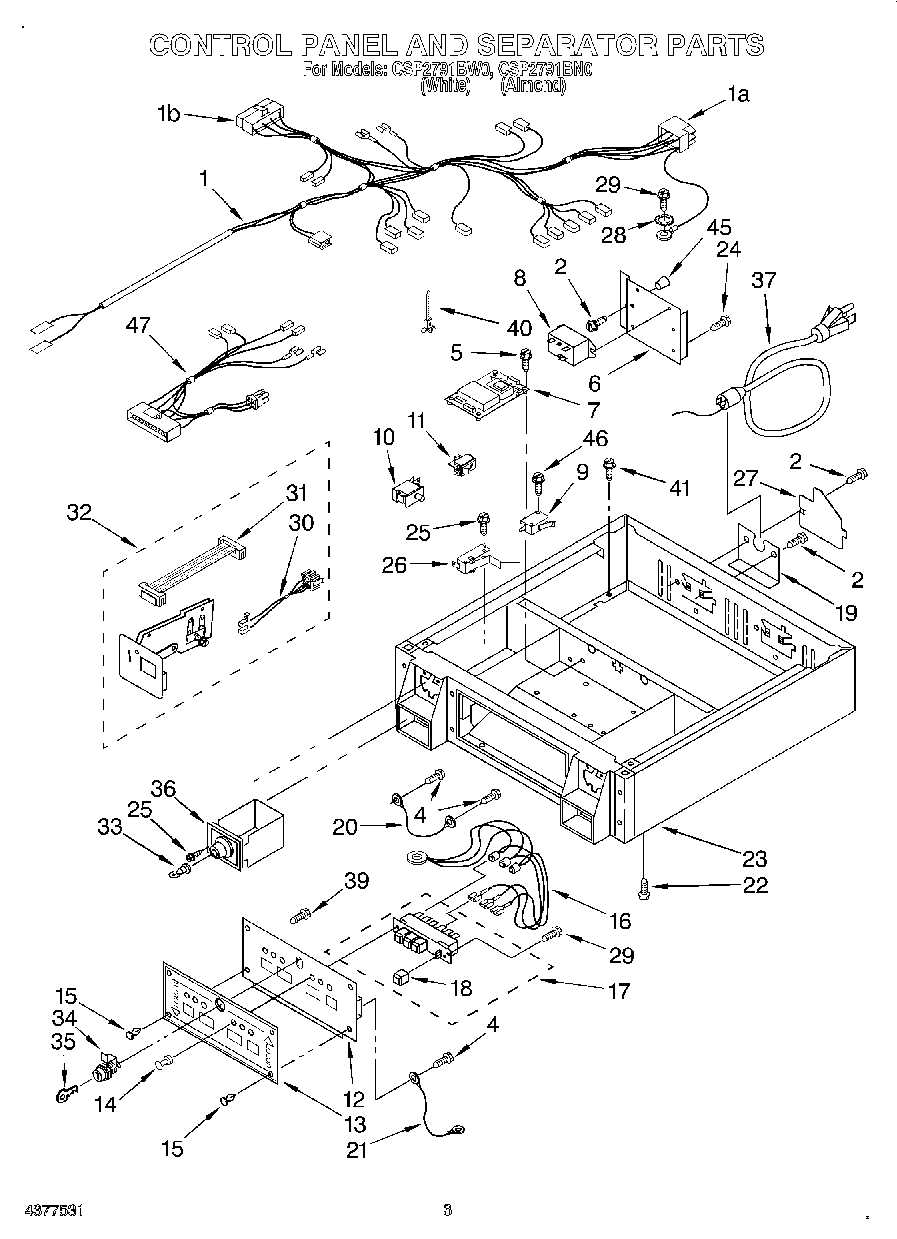

CSP2791BW0 02 – CONTROL PANEL AND SEPARATOR

Products

Position	Product
NI	Receptacle, Latching (2-Way) (Uses Terminal 94614)
1B	Receptacle
1A	Receptacle (2) (Uses Terminals 94614)
1	Harness, Wire (2)
2	W11676450 Whirlpool Screw
4	303776 Whirlpool Dishwasher Screw
5	WPW10366705 Whirlpool Screw
6	Bracket, Relay
7	Timer, 60 Hz.
8	WP8566493 Whirlpool Relay
9	Switch, Service Door (2)
10	Switch, Coin Simulator (2)
11	Switch, Power Interrupt (2)
12	Panel, Control
13	Insert, Decorative
14	Lens, Light (6)
15	Rivet
16	Lights, Indicator (240 Volts)
17	Switch, Pushbutton
18	Button (4)
19	3390189 Whirlpool Relief Valve
20	Strut
21	Wire, Ground
22	3400500 Whirlpool Screw
23	Collar (Almond)
23	Collar
24	WP313808 Whirlpool Screw
25	WP3395530 Whirlpool Screw
26	Switch, Money (2) Vault
27	W11539855 Whirlpool Refrigerator Pump
28	Retainer, Terminal (2)
29	W10850756 Whirlpool Screw
30	Harness-Strip Display
31	Switch, Optic
32	Coin Drop Assy.
33	WP2151749 Whirlpool Refrigerator Cover
34	Security Lock & Cam Assembly
35	Key, Service Door
36	Money Box W/Lock Greenwald Abloy Illinios Duo Medeco Cap-Lock Rampart
37	W11222083 Whirlpool Power Cord
39	WP489128 Whirlpool Refrigerator Screw
40	WP3391018 Whirlpool Wire Tie
41	WP489069 Whirlpool Compactor Screw
45	W10491983 Whirlpool Tine Tip
46	WPL 312717
47	Harness Accountabilty
