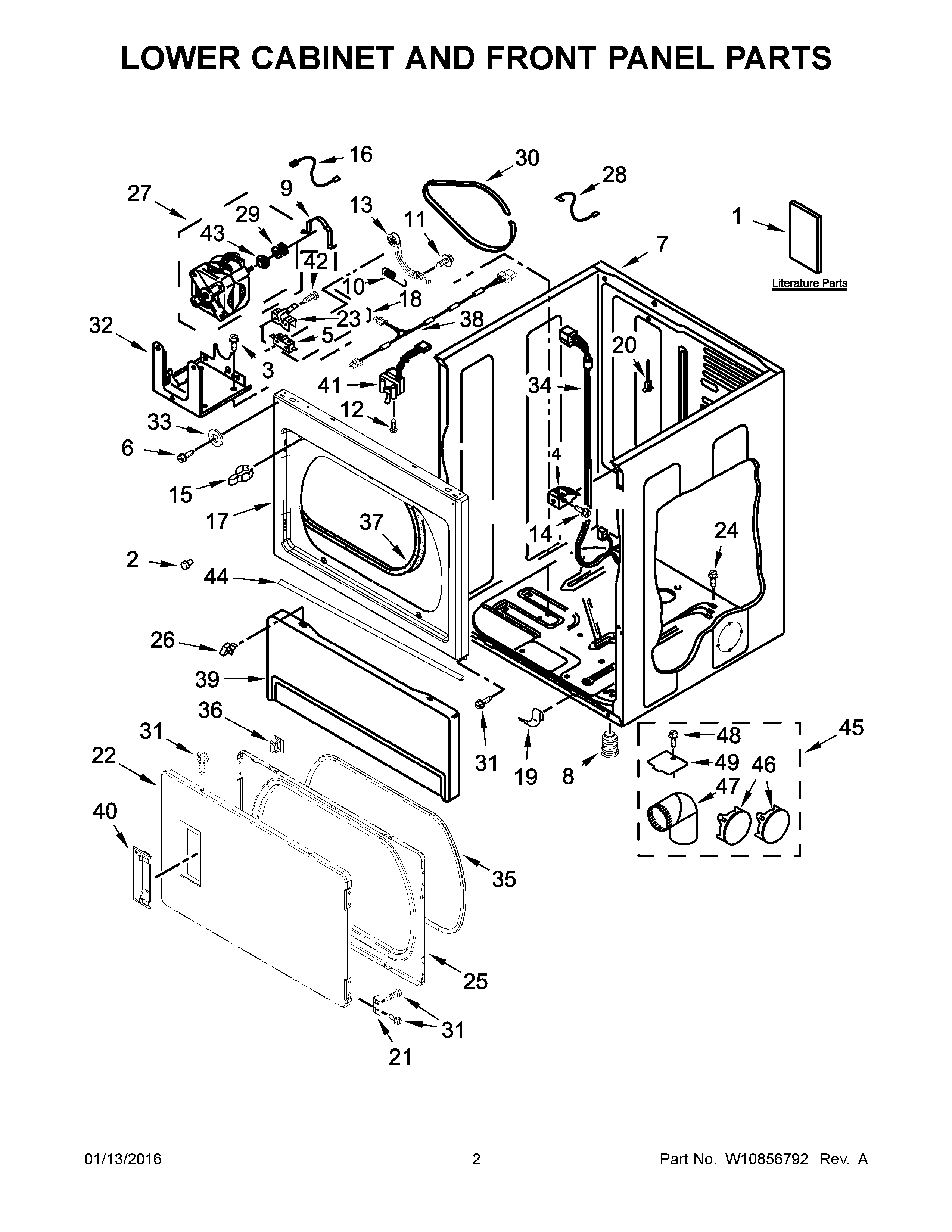

CSP2860TQ1 02 – LOWER CABINET AND FRONT PANEL PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1A	WIRING DIAGRAM
2	693152 Whirlpool Bumper
3	SCREW
4	3391846 Whirlpool Clip
5	279782 Whirlpool Lid Switch
6	WP3400077 Whirlpool Screw
7	W11417441 Whirlpool Cabinet
8	49621 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WP3395530 Whirlpool Screw
13	WPW10344193 Whirlpool Idler Pulley
14	681615 Whirlpool Screw
16	W10167612 Whirlpool Wire
17	W10234293 Whirlpool Panel Assembly
19	WPW10291934 Whirlpool Clip
20	WPW10155270 Whirlpool Wire Tie
21	WPW10279703 Whirlpool Hinge Assembly
22	W11663440 Whirlpool Door
23	WP8066120 Whirlpool Lever Assembly
24	WP488729 Whirlpool Refrigerator Door Screw
25	280083 Whirlpool Rear Door
26	WP3388229 Whirlpool Dryer Spring Clip
27	W10841144 Whirlpool Drive Motor
28	3398948 Whirlpool Wire
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	WP488627 Whirlpool Refrigerator Screw
32	WP3387118 Whirlpool Base Assembly
33	Washer
34	HARNESS
35	WP3390735 Whirlpool Door Seal
36	279570 Whirlpool Dryer Door Latch Kit
37	WP3387242 Whirlpool Seal
38	JUMPER, DOOR SWITCH
39	WP3406797 Whirlpool Toe Panel
40	W11209427 Whirlpool Handle
41	SWITCH-DOOR DRYER
42	WP98129 Whirlpool Screw
43	WP3393657 Whirlpool Belt Retainer
44	SEAL, DEFLECTOR
45	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
47	WPW10416072 Whirlpool Elbow
49	WPW10354249 Whirlpool Cover
