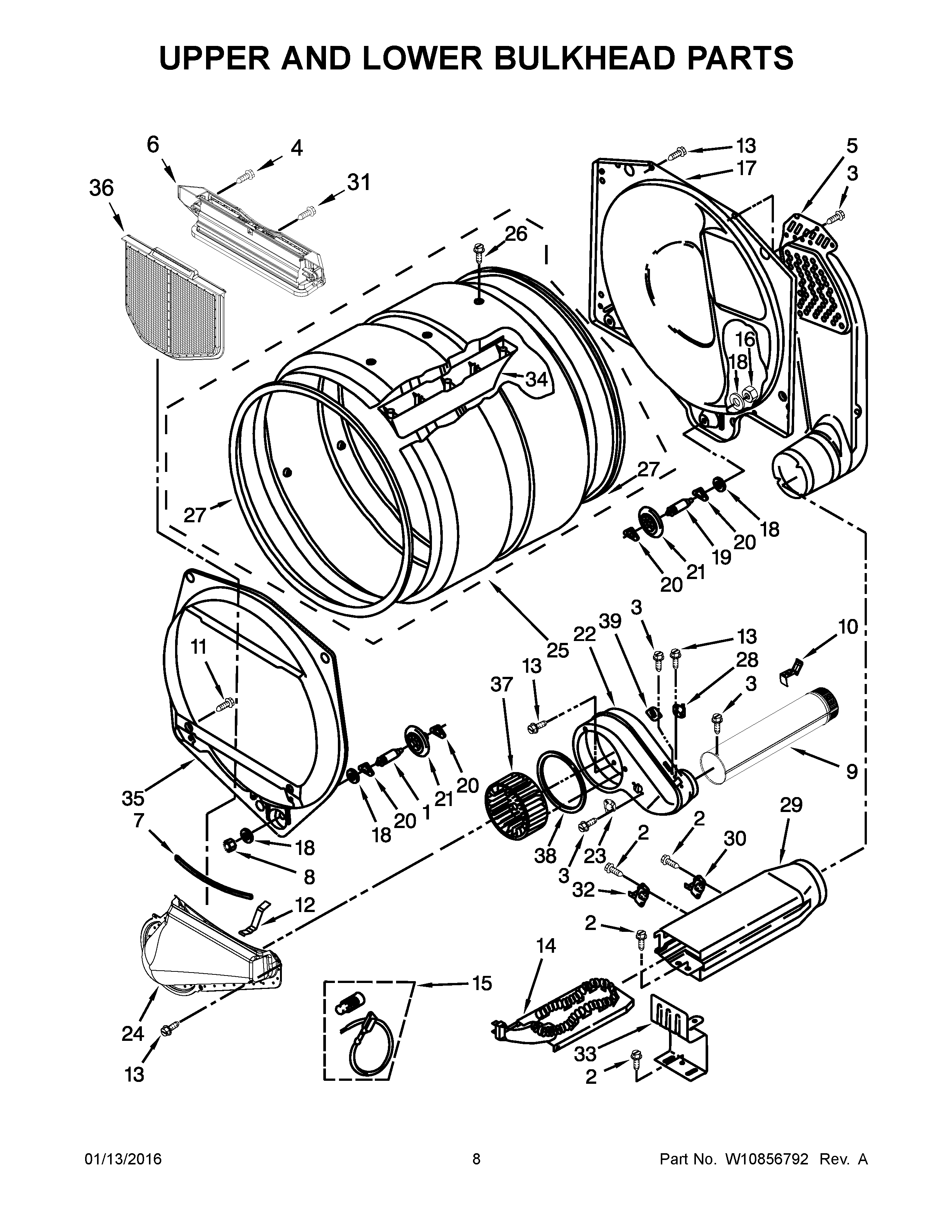

CSP2860TQ1 05 – UPPER AND LOWER BULKHEAD PARTS

CSP2860TQ1 05 – UPPER AND LOWER BULKHEAD PARTS

Written by

in

CSP2860TQ1 05 – UPPER AND LOWER BULKHEAD PARTS

Products

PositionProduct
1SHAFT
3WP90767 Whirlpool Screw
4WP3387230 Whirlpool Screw
5WP3387911 Whirlpool Air Duct
6W11219327 Whirlpool Grille Outlet
7WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
9279936 Whirlpool Exhaust Pipe
10W11684573 Whirlpool Clip Assembly
11WP308685 Whirlpool Microwave Screw
12WP8066208 Whirlpool Clip
13WP488729 Whirlpool Refrigerator Door Screw
14W10864898 Whirlpool Dryer Heating Element
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16WPW10080190 Whirlpool Nut
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22W10888146 Whirlpool Housing
23WPW10178809 Whirlpool Dryer Cycling Thermostat
24WPW10128606 Whirlpool Lint Duct
25W10545923 Whirlpool Drum Assembly
26W10853898 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
28WPW10131836 Whirlpool Thermostat
29W10802681 Whirlpool Box Assembly
30279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
32THRMST-FIX
338066099 Whirlpool Bracket
34WPW10113136 Whirlpool Drum Baffle
35WP697557 Whirlpool Bulkhead Assembly
36W10120998 Whirlpool Dryer Lint Screen Filter
37WHEEL
38WP697770 Whirlpool Blower Cover Plate Seal
39WP3392519 Whirlpool Dryer Thermal Fuse
