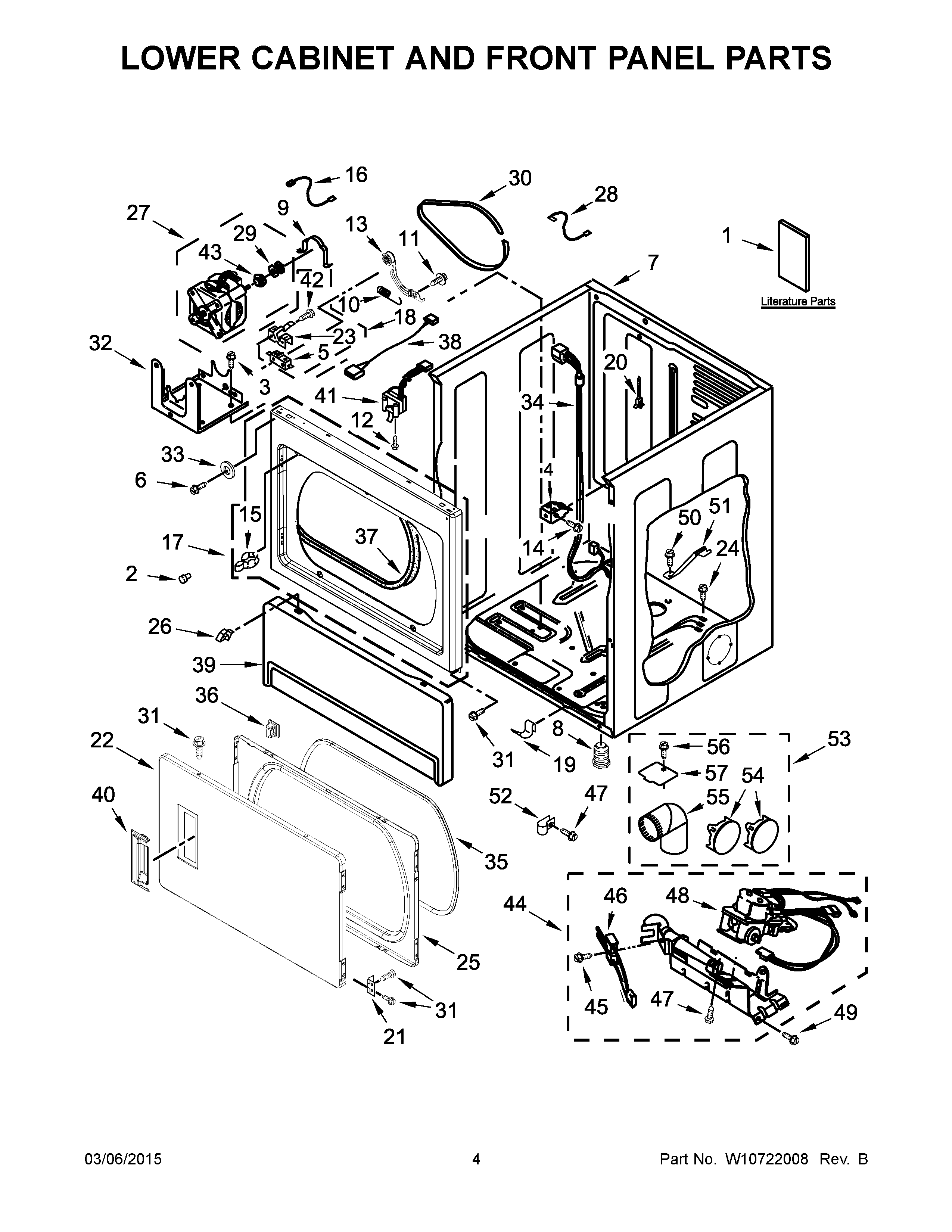

CSP2861TQ0 03 – LOWER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
1AWIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
2693152 Whirlpool Bumper
3SCREW
43391846 Whirlpool Clip
5279782 Whirlpool Lid Switch
6WP3400077 Whirlpool Screw
7W11417441 Whirlpool Cabinet
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WP3395530 Whirlpool Screw
13WPW10344193 Whirlpool Idler Pulley
14681615 Whirlpool Screw
16W10167612 Whirlpool Wire
17W10234293 Whirlpool Panel Assembly
19WPW10291934 Whirlpool Clip
20WP3391018 Whirlpool Wire Tie
21WPW10279703 Whirlpool Hinge Assembly
22W11663440 Whirlpool Door
23WP8066120 Whirlpool Lever Assembly
24WP488729 Whirlpool Refrigerator Door Screw
25280083 Whirlpool Rear Door
26WP3388229 Whirlpool Dryer Spring Clip
27W10841144 Whirlpool Drive Motor
283398948 Whirlpool Wire
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP488627 Whirlpool Refrigerator Screw
32WP3387118 Whirlpool Base Assembly
33Washer
34HARNESS
35WP3390735 Whirlpool Door Seal
36279570 Whirlpool Dryer Door Latch Kit
37WP3387242 Whirlpool Seal
388283298 Whirlpool Wire Harness
39WP3406797 Whirlpool Toe Panel
40W11209427 Whirlpool Handle
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
43WP3393657 Whirlpool Belt Retainer
44Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
45WPW10366705 Whirlpool Screw
46279311 Whirlpool Dryer Flat Igniter with Bracket
47WP693995 Whirlpool Screw
48279923 Whirlpool Gas Valve
51W10181903 Whirlpool Bracket
523387561 Whirlpool Clamp
53W10470674 Whirlpool Dryer Side Vent Exhaust Kit
55WPW10416072 Whirlpool Elbow
57WPW10354249 Whirlpool Cover
