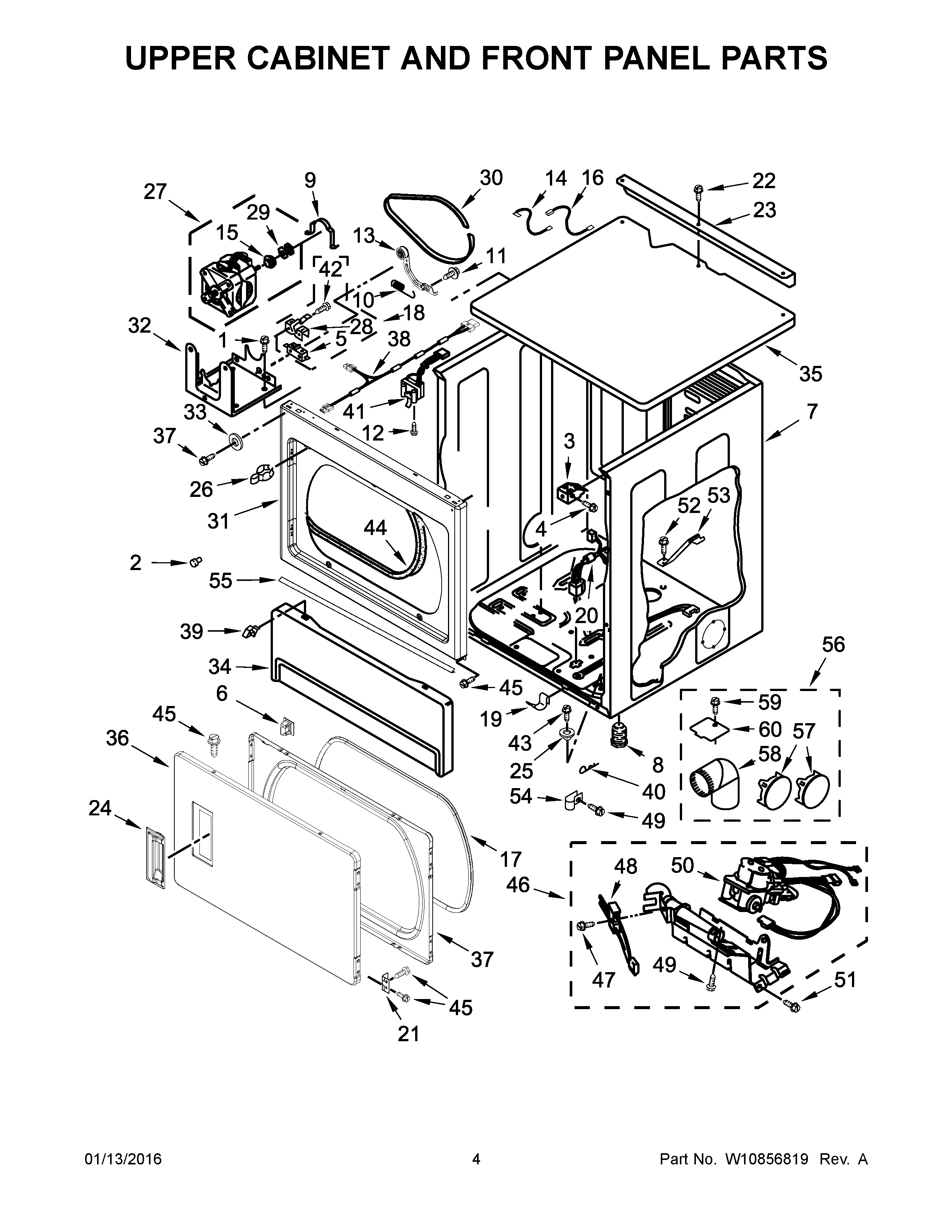

CSP2861TQ1 03 – UPPER CABINET AND FRONT PANEL PARTS

CSP2861TQ1 03 – UPPER CABINET AND FRONT PANEL PARTS

Written by

in

CSP2861TQ1 03 – UPPER CABINET AND FRONT PANEL PARTS

Products

PositionProduct
1SCREW
2693152 Whirlpool Bumper
33391846 Whirlpool Clip
4681615 Whirlpool Screw
6279570 Whirlpool Dryer Door Latch Kit
7W11417441 Whirlpool Cabinet
8WP689172 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WP3395530 Whirlpool Screw
13WPW10344193 Whirlpool Idler Pulley
143398948 Whirlpool Wire
15WP3393657 Whirlpool Belt Retainer
16279782 Whirlpool Lid Switch
17WP3390735 Whirlpool Door Seal
19WPW10291934 Whirlpool Clip
20HARNESS
21WPW10279703 Whirlpool Hinge Assembly
22WP488729 Whirlpool Refrigerator Door Screw
233979115 Whirlpool Bracket
24W11209427 Whirlpool Handle
25BUSHING
27W10841144 Whirlpool Drive Motor
28WP8066120 Whirlpool Lever Assembly
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10234293 Whirlpool Panel Assembly
32WP3387118 Whirlpool Base Assembly
33Washer
34WP3406797 Whirlpool Toe Panel
353389351 Whirlpool Top
36W11663440 Whirlpool Door
37280083 Whirlpool Rear Door
38JUMPER, DOOR SWITCH
39WP3388229 Whirlpool Dryer Spring Clip
40COTTER PIN
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
43285875 Whirlpool Security Kit
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
47WPW10366705 Whirlpool Screw
48279311 Whirlpool Dryer Flat Igniter with Bracket
49WP693995 Whirlpool Screw
50279923 Whirlpool Gas Valve
53W10181903 Whirlpool Bracket
543387561 Whirlpool Clamp
55SEAL, DEFLECTOR
56W10470674 Whirlpool Dryer Side Vent Exhaust Kit
584“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
60WPW10354249 Whirlpool Cover
