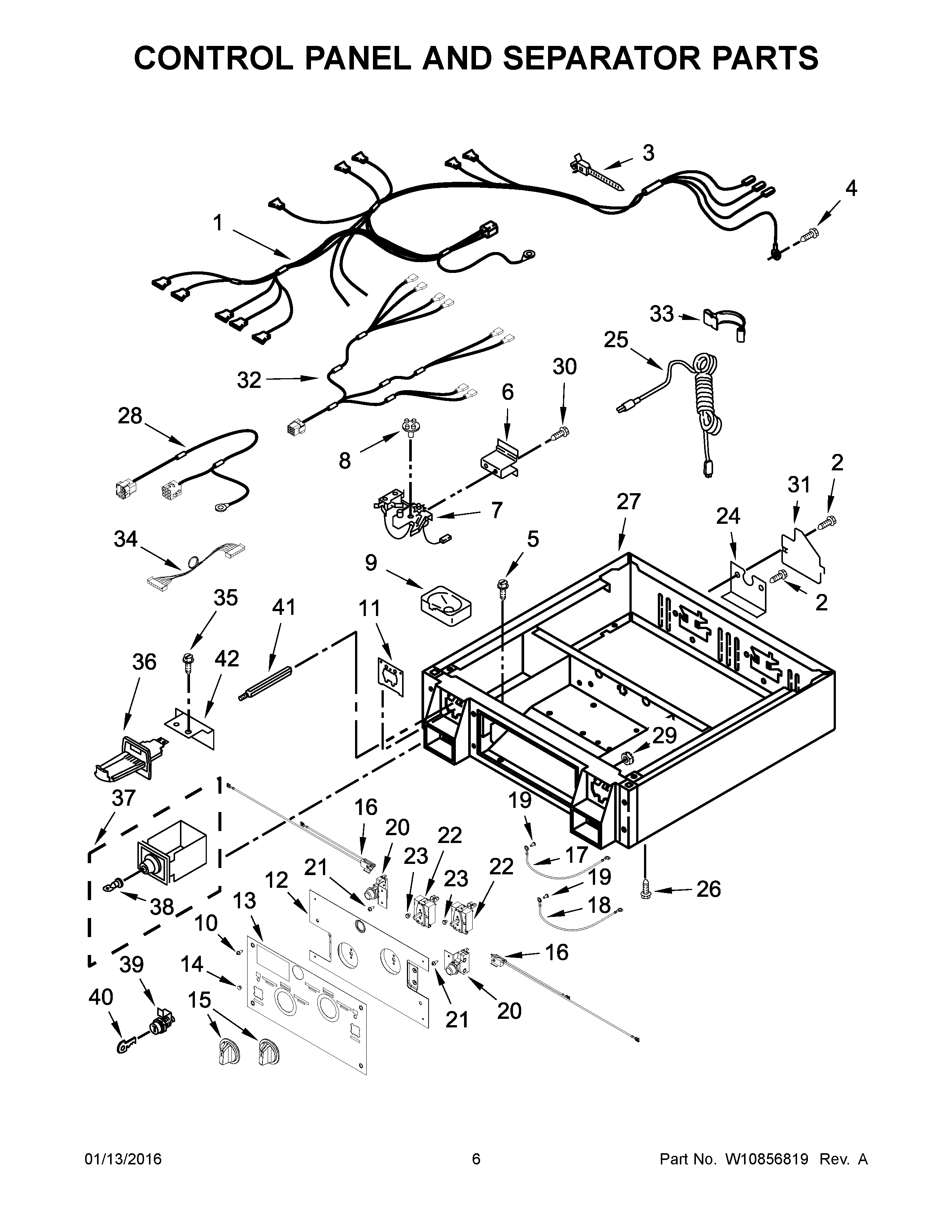

CSP2861TQ1 04 – CONTROL PANEL AND SEPARATOR PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	HARNESS, WIRE
2	W11676450 Whirlpool Screw
3	WPW10155270 Whirlpool Wire Tie
4	W10850756 Whirlpool Screw
5	303776 Whirlpool Dishwasher Screw
6	BRACKET, TIMER
7	279737 Whirlpool Dryer Load Timer
8	WP3387974 Whirlpool Cam
8A	WP343777 Whirlpool Cam
9	WP385421 Whirlpool Coin Operated Laundry Funnel
10	WPW10131119 Whirlpool Screw
11	279950 Whirlpool Funnel
12	PANEL, CONTROL
13	FASCIA ASSEMBLY
14	WPW10133502 Whirlpool Lens
15	W10492415 Whirlpool Knob
16	W10662107 Whirlpool Light Bulb
17	3401699 Whirlpool Wire
19	WP489128 Whirlpool Refrigerator Screw
20	W11097274 Whirlpool Push-To-Start Switch
21	WP90767 Whirlpool Screw
22	WPW10327105 Whirlpool Cycle Switch
23	SCREW
24	3390189 Whirlpool Relief Valve
25	W11628810 Whirlpool Power Cord
26	3400500 Whirlpool Screw
27	W10862444 Whirlpool Collar
28	JUMPER, LOWER TO COLLAR
29	WP3400029 Whirlpool Dishwasher Nut
30	WP3400094 Whirlpool Screw
31	W11539855 Whirlpool Refrigerator Pump
32	JUMPER, CSP CONSOLE
33	8528351 Whirlpool Clip
34	WP3401850 Whirlpool Wire Harness
35	WP356418 Whirlpool Screw
36	W11126319 Whirlpool Washer Dryer Coin Chute
36A	Inserts (Not Shown
36B	WPL 8316265
37	W11190039 Whirlpool Coin Box Assembly
39	W11315637 Whirlpool Lock Assembly
41	WP8576635 Whirlpool Bolt
42	3390424 Whirlpool Extension
