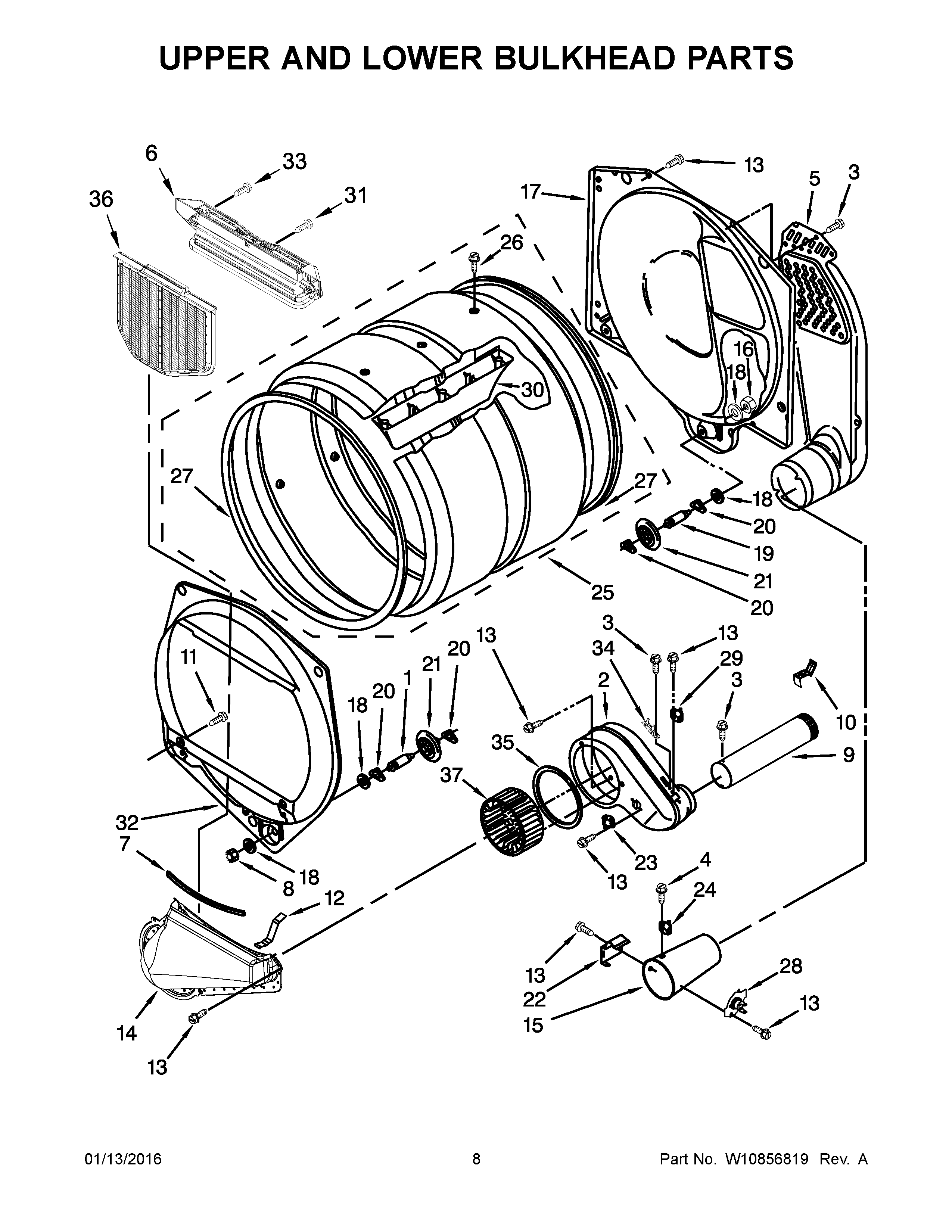

CSP2861TQ1 05 – UPPER AND LOWER BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	W10888146 Whirlpool Housing
3	WP90767 Whirlpool Screw
5	W11168650 Whirlpool Air Duct
6	W11219327 Whirlpool Grille Outlet
7	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	279936 Whirlpool Exhaust Pipe
10	W11684573 Whirlpool Clip Assembly
11	WP308685 Whirlpool Microwave Screw
12	WP8066208 Whirlpool Clip
13	WP488729 Whirlpool Refrigerator Door Screw
14	WPW10128606 Whirlpool Lint Duct
15	WP8573824 Whirlpool Funnel
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP338906 Whirlpool Dryer Gas Sensor
23	W10178810 Whirlpool Thermostat
24	THRMST-FIX
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WP8573713 Whirlpool Thermal Fuse
29	WPW10131836 Whirlpool Thermostat
30	WPW10113136 Whirlpool Drum Baffle
32	WP697557 Whirlpool Bulkhead Assembly
33	WP3387230 Whirlpool Screw
34	WP3392519 Whirlpool Dryer Thermal Fuse
35	WP697770 Whirlpool Blower Cover Plate Seal
36	W10120998 Whirlpool Dryer Lint Screen Filter
37	WHEEL
