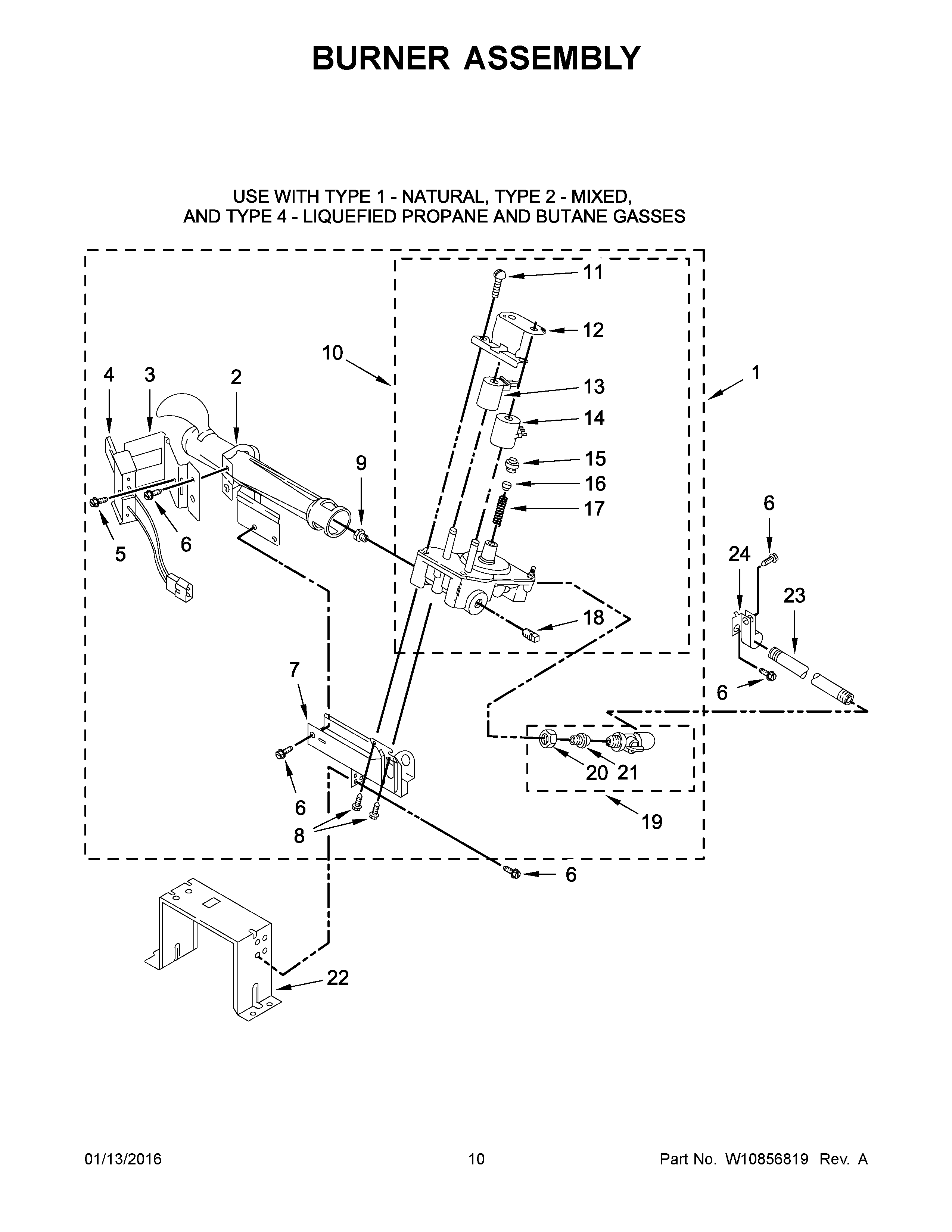

CSP2861TQ1 06 – BURNER ASSEMBLY

Products

PositionProduct
NI49572A Whirlpool Dryer Propane Gas Conversion Kit
NICABINET (NOT A SERVICEABLE PART)
1Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
2WP693140 Whirlpool Burner
3WP694298 Whirlpool Bracket
4279311 Whirlpool Dryer Flat Igniter with Bracket
5WPW10366705 Whirlpool Screw
6SCREW
7Base, Burner
8WP693995 Whirlpool Screw
9Orifice, Burner (Type 1)
9AWP234868 Whirlpool Gas Orifice
10279923 Whirlpool Gas Valve
11694421 Whirlpool Screw Assembly
12694538 Whirlpool Bracket
14279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15WP694424 Whirlpool Limiter
16WP694423 Whirlpool Regulator
17WP694422 Whirlpool Spring
18W10295523 Whirlpool Plug
19697441 Whirlpool Valve
20Nut, Compression
213393767 Whirlpool Pipe
22Bracket, Support
23W10110395 Whirlpool Pipe
243387561 Whirlpool Clamp
