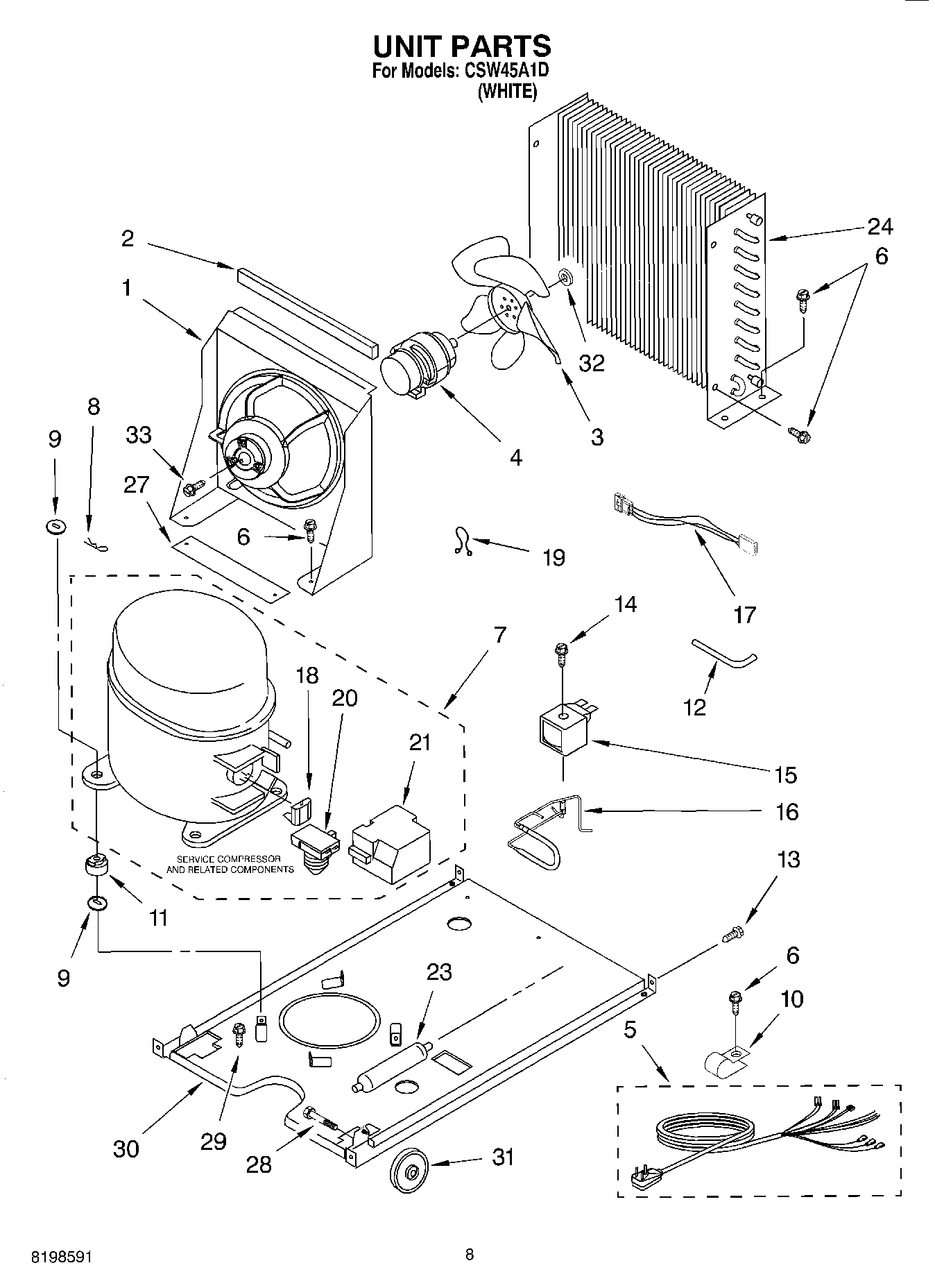

CSW45A1D 05 – UNIT PARTS

Products

Position	Product
1	WP2185532 Whirlpool Refrigerator Bracket
2	2185675 Whirlpool Refrigerator Foam Pad
3	Blade, Fan
4	W10822259 Whirlpool Refrigerator Condenser Fan Motor
5	Wiring Harness, Complete Unit (See 11 On Control Panel Parts Page)
6	WP489069 Whirlpool Compactor Screw
7	W11735041 Whirlpool Compressor
8	A201435 Whirlpool Refrigerator Clip
9	A201441 Whirlpool Refrigerator Shim
10	CLAMP, POWER CORD
11	2185965 Whirlpool Refrigerator Grommet
12	W10528572 Whirlpool Refrigerator Tube
13	WP999367 Whirlpool Refrigerator Screw
14	SCREW
15	Coil, Solenoid
16	W10724988 Whirlpool Refrigerator Gas Valve
17	Wiring Harness, Condenser Fan
18	WP2217223 Whirlpool Refrigerator Overload Relay
19	Twist Loc
20	WP2217224 Whirlpool Refrigerator Start Relay
21	WP2162358 Whirlpool Refrigerator Terminal Cover
23	W10843121 Whirlpool Refrigerator Tube
24	8201810 Whirlpool Refrigerator Condenser
27	2217397 Whirlpool Foam Pad
28	Screw (2)
29	WP489128 Whirlpool Refrigerator Screw
30	Base, Unit
31	WP302819 Whirlpool Dishwasher Wheel
32	WP486692 Whirlpool Refrigerator Nut
33	WP8281196 Whirlpool Screw
33	REFRIGERANT CHARGE 6.5 OZ. (R134A)
