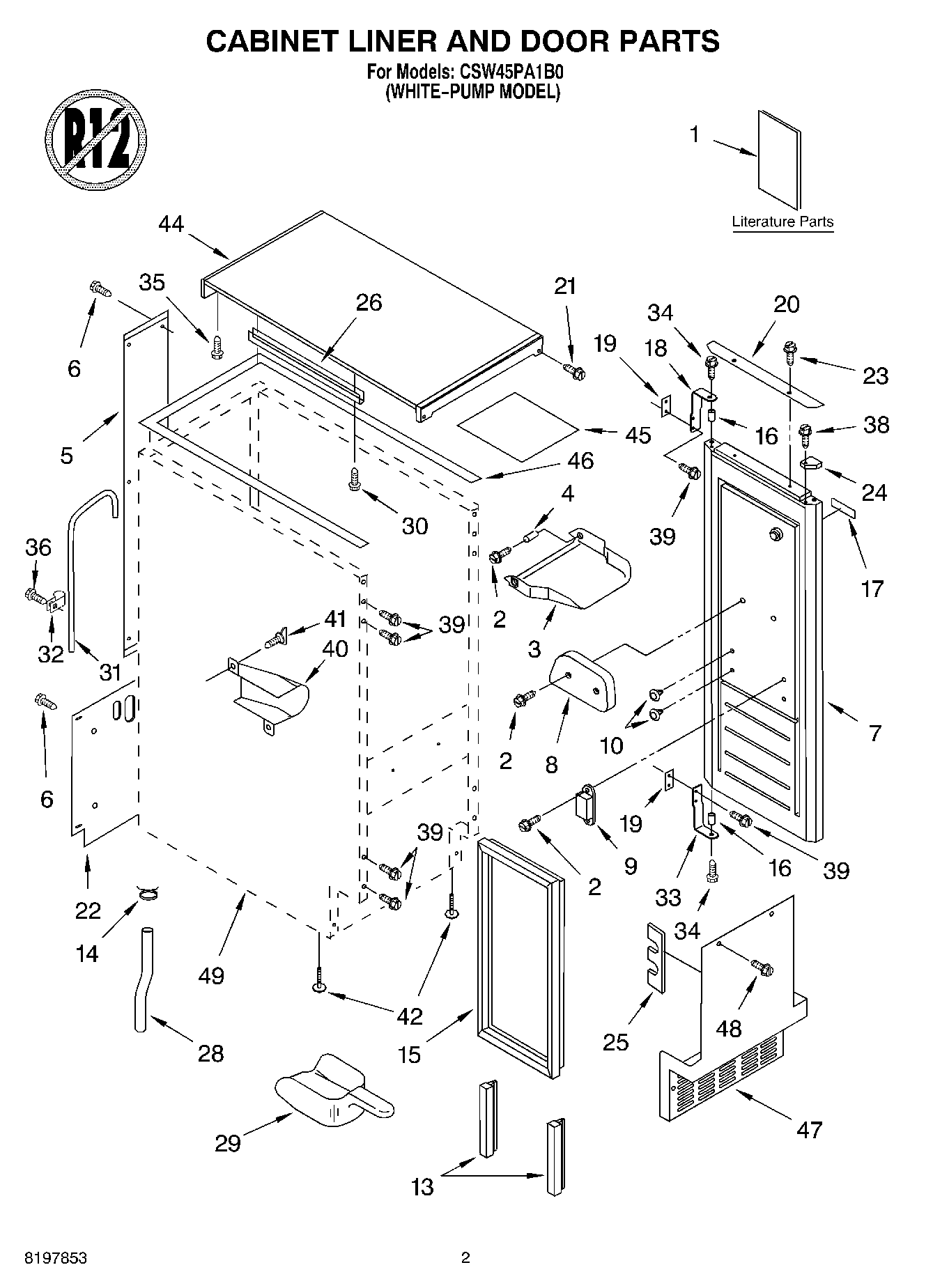

CSW45PA1B0 02 – CABINET LINER AND DOOR, LITERATURE

CSW45PA1B0 02 – CABINET LINER AND DOOR, LITERATURE

Written by

in

CSW45PA1B0 02 – CABINET LINER AND DOOR, LITERATURE

Products

PositionProduct
1Literature Parts (Use & Care Guide)
1Literature Parts (Service & Wiring Sheet)
2WP3400886 Whirlpool Refrigerator Screw
3BIN, DOOR
42185678 Whirlpool Refrigerator Spacer
52217394 Whirlpool Refrigerator Wire Cover
6WP489442 Whirlpool Refrigerator Screw
7WPL 2932800W
82185695 Whirlpool Refrigerator Door Cam
9W11223751 Whirlpool Refrigerator Catch Assembly
10WP2189000 Whirlpool Refrigerator Handle Plug
132217367 Whirlpool Refrigerator Door Gasket
14WP489503 Whirlpool Refrigerator Clamp
15WP2217294 Whirlpool Refrigerator Door Gasket
162185640 Whirlpool Refrigerator Sleeve
17Nameplate
182185710 Whirlpool Refrigerator Hinge
192185709 Whirlpool Refrigerator Shim
20Handle, Door
218281188 Whirlpool Refrigerator M Screw
22WPW10136199 Whirlpool Refrigerator Unit Cover
24Filler, Endcap (Left Side)
24Filler, Endcap (Right Side)
25W10532250 Whirlpool Refrigerator Foam Pad
262185691 Whirlpool Refrigerator Channel
28Tube, Drain
29W11420408 Whirlpool Refrigerator Ice Scoop
30WP3400884 Whirlpool Refrigerator Screw
31Tube, Air Vent
32WP2208367 Whirlpool Refrigerator Half Clamp
332185711 Whirlpool Refrigerator Hinge
342185712 Whirlpool Refrigerator Hinge Pin
35WP250830 Whirlpool Refrigerator Screw
36WP489464 Whirlpool Refrigerator Screw
38NAMEPLATE
39WP999367 Whirlpool Refrigerator Screw
402185927 Whirlpool Refrigerator Holder
41Thumbscrew
428193716 Whirlpool Leveling Leg
44Top
452185690 Whirlpool Shield Assembly
46W11624957 Whirlpool Refrigerator Top Gasket
47WP2185571W Whirlpool Refrigerator Grille
48WP489474 Whirlpool Refrigerator Screw
49876370 Whirlpool Refrigerator Insulation
49WPL ARI22169A7
49VALVE, ACCESS (5/8“)
49212643 Whirlpool Refrigerator Permagum Sealer
49WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
49WP503695 Whirlpool Refrigerator Sealer
49978026 Whirlpool Refrigerator Primary Valve
49WP505587 Whirlpool Refrigerator Sealer
49978027 Whirlpool Refrigerator Primary Valve
49W11179302 Whirlpool Ice Machine Cleaner
49978030 Whirlpool Refrigerator Valve
49WP978025 Whirlpool Refrigerator Valve
49VALVE, ACCESS (1/2“)
