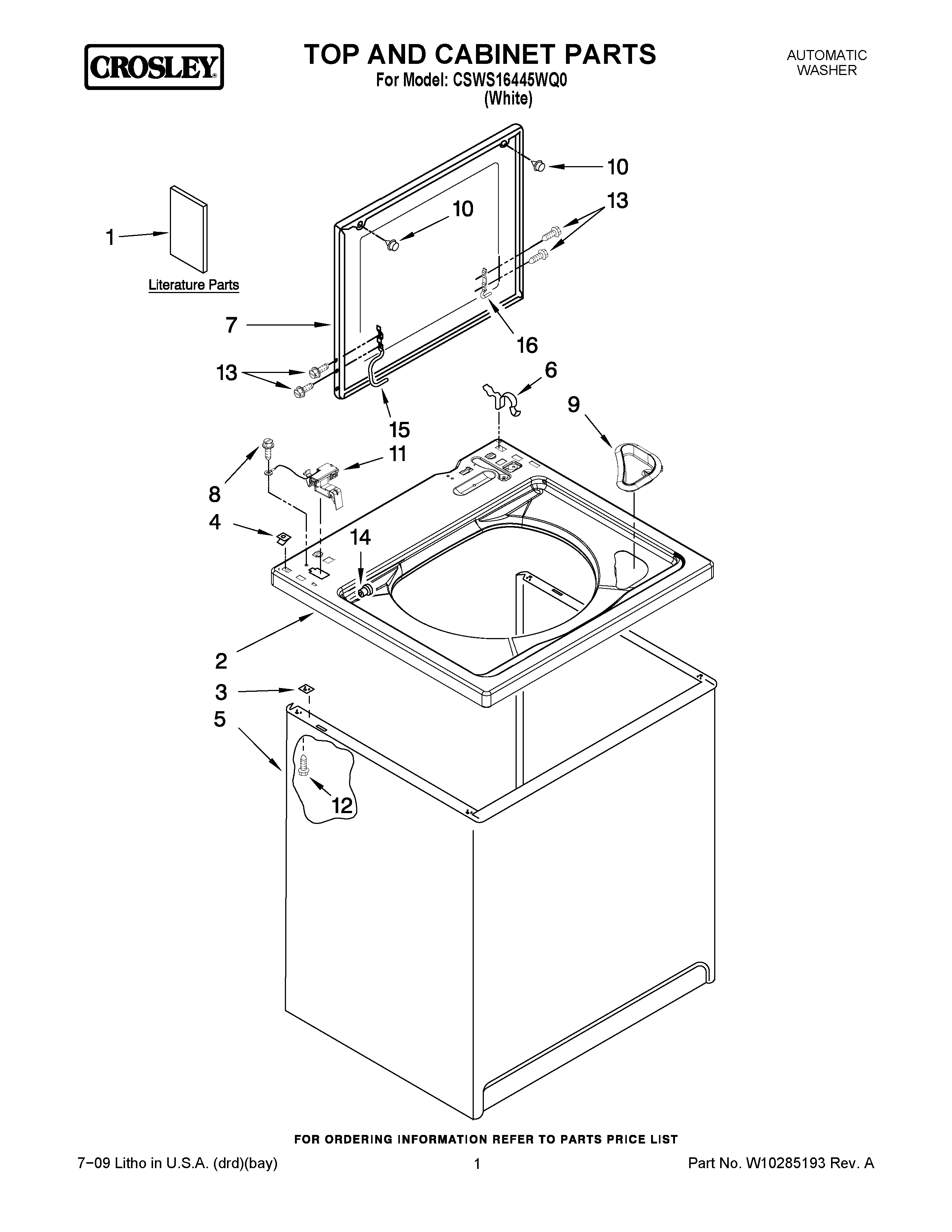

CSWS16445WQ0 01 – TOP AND CABINET PARTS

CSWS16445WQ0 01 – TOP AND CABINET PARTS

Written by

in

CSWS16445WQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS (SPANISH)
1INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
1Use & Care Guide
1Feature Sheet
1Wiring Diagram
1ENERGY GUIDE
2Top
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7Lid
8WP3351614 Whirlpool Screw
9WPW10192089 Whirlpool Washer Bleach Dispenser
10WP9724509 Whirlpool Bumper
11WP8318084 Whirlpool Washer Lid Switch Assembly
12WP3390631 Whirlpool Screw
13SCREW
14Bearing, Lid Hinge (2)
15Hinge, Lid (L.H.)
16WP91770 Whirlpool Hinge
