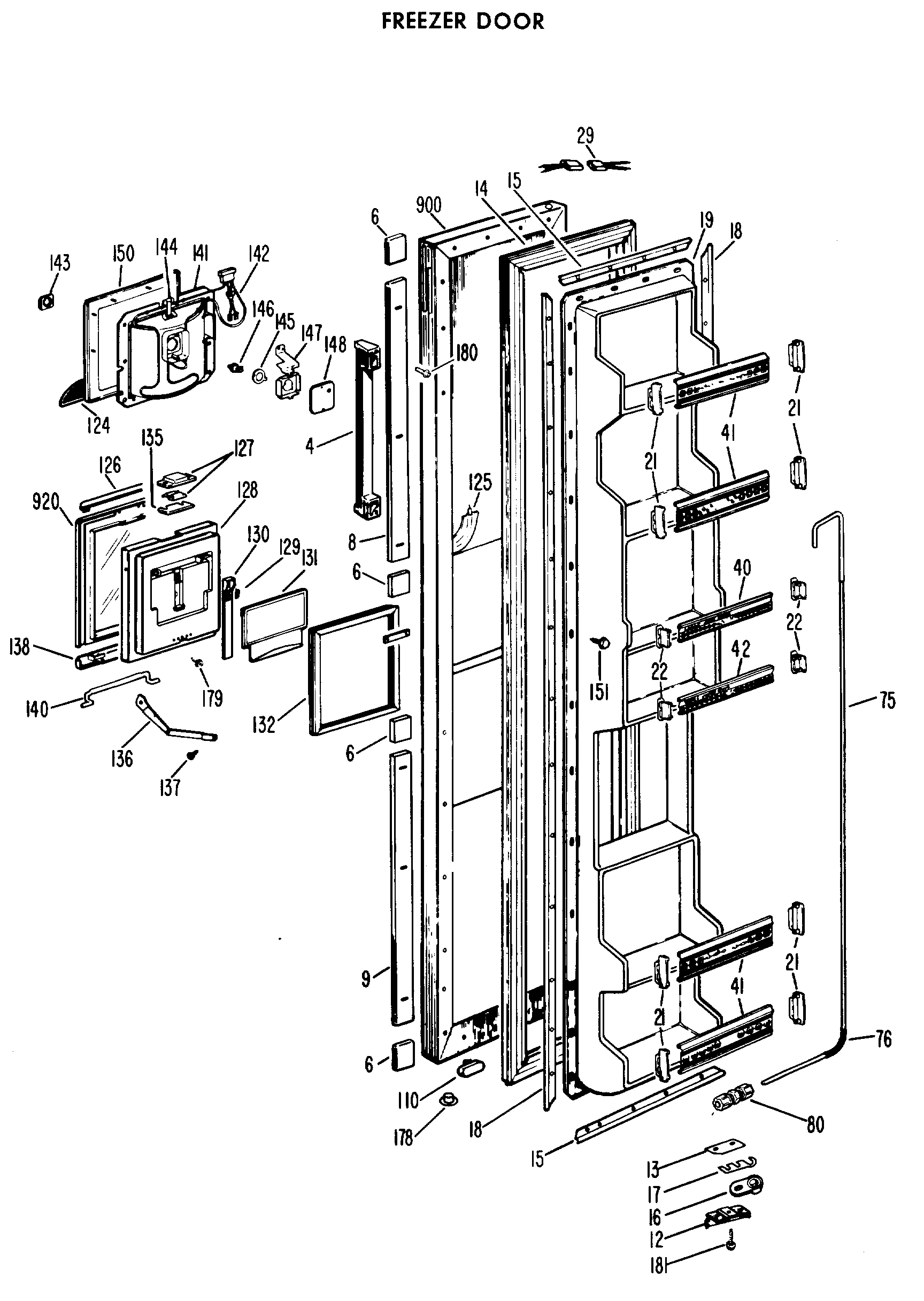

CSX22TFB FREEZER DOOR

CSX22TFB FREEZER DOOR

Written by

in

CSX22TFB FREEZER DOOR

Products

PositionProduct
3GEN WR02X3757
4END CAP-HANDLE
4GEN WR01X5476
4GEN WR12X5148
4GEN WR12X5149
4GEN WR12X5165
5GEN WR01X5473
6GEN WR12X5106
7GEN WR01X1246
7GEN WR01X5349
8GEN WR38X5351
9TRIM DOOR
11GEN WR01X5469
12GEN WR02X7213
13GEN WR01X0993
13GEN WR02X4599
13GEN WR02X4540
14GEN WR24X0252
15GEN WR17X1231
16WR2X4901 GE Door Hinge Cam Riser
18GEN WR17X1169
19DOOR INNER FZ
21GEN WR02X4100
22GEN WR02X5795
28CLIP SPEED
29GEN WR49X5103
29GEN WR49X5102
40GEN WR71X6006
41GEN WR71X5998
42GEN WR71X6007
75TUBE WATER LINE ASM DISP
76GEN WR02X4633
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
80GEN WR02X4265
87WZ4X241D GE Screw Package
110GEN WR02X4678
121GEN WR01X5346
124GEN WR02X6228
125HEATER BRKR FRAME ASM
126HANDLE MINI DOOR ASM
126GEN WR12X5164
127HOUSING LATCH MINI DOOR
127SPRING LATCH MINI DOOR
127LATCH MINI DOOR
128INSUL MINI DOOR
128DOOR INNER MINI
129SPRING
130SLIDE HOOK MINI DR
131HOOK MINI DOOR
131GEN WR02X6391
132GASKET MINI DOOR
133RETAINER STRIP
134RETAINER STRIP MINI DOOR
135GEN WR10X5030
136STOP DOOR-R. SIDE
136STOP DOOR-L. SIDE
137CLIP U
137SCR DOOR STOP
138CLIP MINI DOOR LATCH
138BASE HINGE MINI DOOR
140SCR 8-18 BAT HX 7/8SSXTW
140HINGE MINI DOOR
141RECESS WATER DISP
142HARNESS RECESS WTR DISP
142GASKET RECESS DISP
143PAD RECESS WATER SW
144CLAMP HOSE
144GROMMET WATER FILL LNR
145PLATE RECESS SWITCH MTG
146SWITCH PLUNGER
147BRACKET RECESS SWITCH
148COVER RECESS SWITCH
150GEN WR38X5352
150GEN WR38X5396
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153WR1X1505D GE Refrigerator Screw Package of 12
154SCR SPECIAL 10-16
178GEN WR02X6058
179SCREW
181GEN WZ06X0105
203RETNR BRKR-TOP FF & FZ
204RETAINER BREAKER-BTM.
204RETAINER BREAKER
214GEN WR01X1332
215CLIP EVAP COVER
217GEN WR02X7257
221GASKET DRAIN TROUGH
225GEN WR01X5042
225GEN WR02X4838
228GEN WR02X4982
244SUPPORT-R. SIDE
245SUPPORT-L. SIDE
253RIVET POP
276GEN WR01X1510
279GEN WR17X2343
292GEN WR01X1776
307GEN WR02X4493
371GEN WR02X4254
388GEN WR14X0266
430CLIP-CONTROL HOUSING
435SHIM HINGE BTM.
435RANGE ONLY 40W 120V APPL BULB
