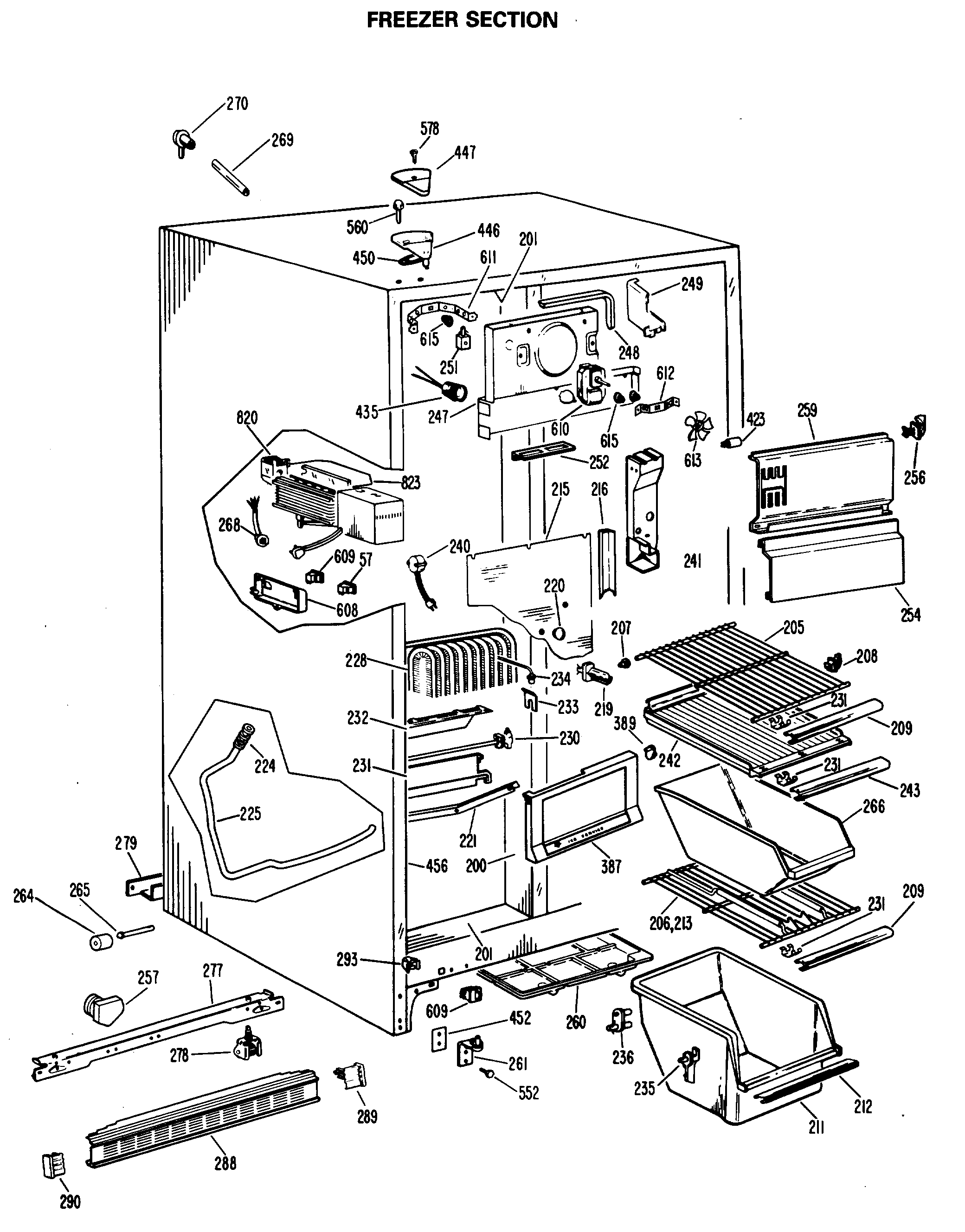

CSX22TFB FREEZER SECTION

CSX22TFB FREEZER SECTION

Written by

in

CSX22TFB FREEZER SECTION

Products

PositionProduct
57SWITCH-CRADLE-WATER SIDE
200BREAKER STRIP-FZ MULLION
201BREAKER STRIP-TOP & BTM.
205SHELF FZ-TOP
205SHELF FZ-2ND
206SHELF FZ-BTM.
206PLASTIC SLEEVE
207GEN WR02X4676
208GEN WR02X4674
209GEN WR38X5180
211GEN WR21X5080
212GEN WR02X6042
213SHELF FZ-4TH
215GEN WR17X6085
216GEN WR14X0274
219GEN WR02X4421
220PLUG RECESSED
221TROUGH DRAIN
224GEN WR02X4967
225GEN WR02X7088
228LOW SIDE ASM
230GEN WR51X0231
230SHIELD DEF HTR END
230BRACKET DEF HTR
231GEN WR02X5008
232GEN WR02X4971
234GEN WR02X4546
236GEN WR02X4548
237GEN WR02X7036
240WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
241DUCT AIR FZ VERT
241PLUG BUTTON
2423RD SHELF-PLASTIC
243TRIM SHELF
247GEN WR17X1413
248GEN WR14X0272
249GEN WR17X1414
251GEN WR02X2880
252GEN WR02X7042
254SHIELD LIGHT FZ
256GEN WR02X4839
257BRACKET DEF CONTROL
257WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
259GEN WR17X6034
260PAN WATER DISPOSAL ASM
260GEN WR02X7074
261WR49X5124 GE Refrigerator Hinge and Cam Assembly
264WR2X3594 GE Refrigerator Wheel
265GEN WR02X3598
265GEN WR02X4742
266GEN WR38X5255
266BUCKET ICE
268RECEPTACLE-ICEMAKER
269GEN WR01X1543
269TUBE WATER FILL
270GROMMET WATER FILL
270WR2X4754 GE Refrigerator Fill Clamp
277GEN WR17X1492
278WHEEL ASM FRT
288GRILLE-O. CASE
288GEN WR79X5157
289GEN WR02X6810
289END CAP-GRILLE-R.SIDE (SL)
290GEN WR02X6811
290END CAP-GRILLE-L.SIDE (SL)
293GEN WR02X7080
387COVER IM ASM
389SUPPORT SHELF
423GEN WR02X6347
423GEN WR02X6350
435SOCKET LAMP
446HINGE TOP-FRZ DOOR
447COVER HINGE
450GEN WR02X4194
456BREAKER STRIP-HINGE SIDE
456RETAINER BREAKER
552SCR 12-24 TT HXW 1 3/64S
560GEN WR01X1249
578WZ2X464D GE Screw
608COVER SWITCH HP DISP
609WR23X37285 GE Light Switch
610GEN WR60X0131
611BRACKET EVAP FAN
612BRACKET EVAP FAN
613WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615GEN WR02X2945
823WR29X98 GE Refrigerator Retainer
823GEN WR29X0099
32767GEN WR02X4816
