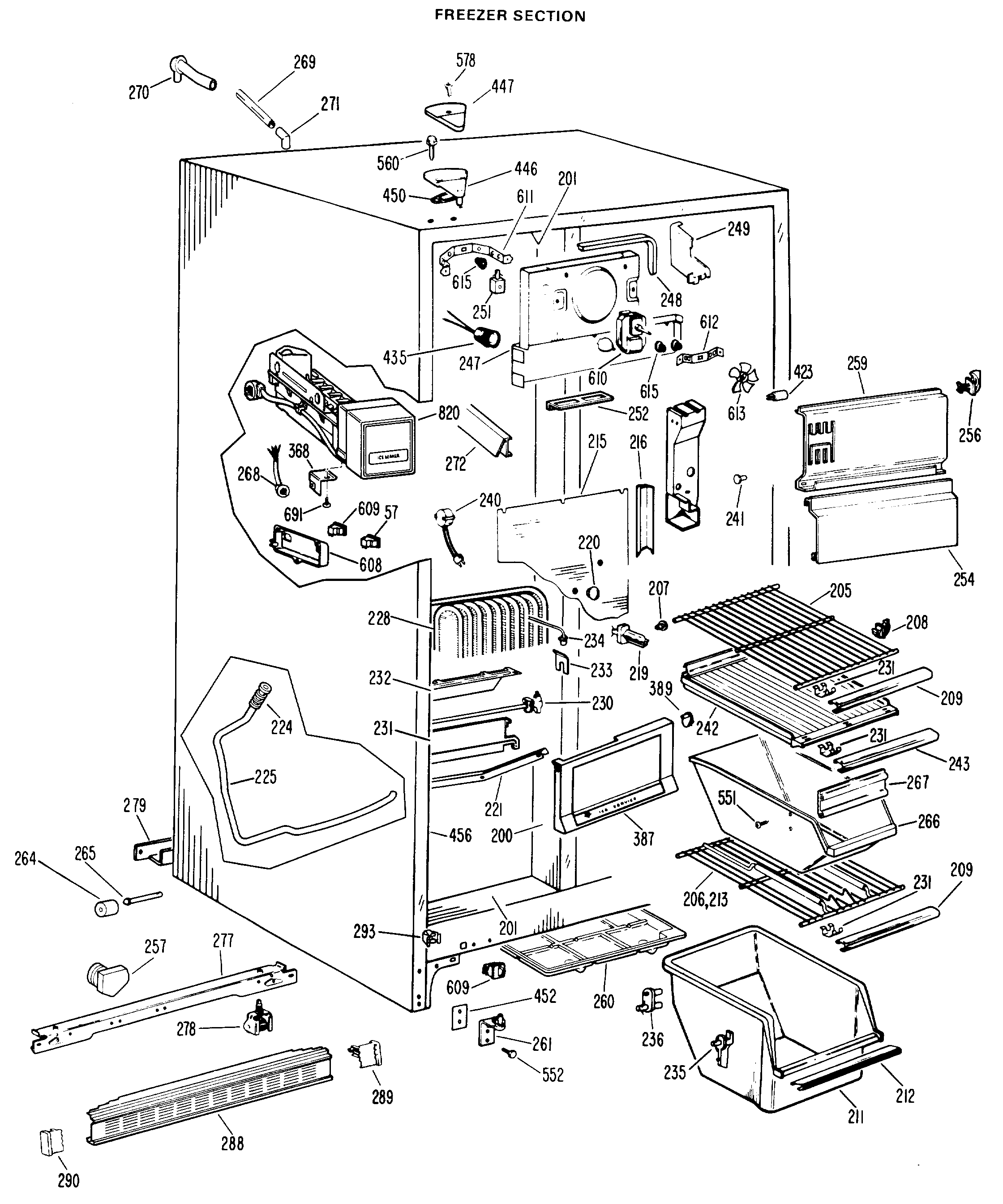

CSX22TGB FREEZER SECTION

CSX22TGB FREEZER SECTION

Written by

in

CSX22TGB FREEZER SECTION

Products

Position	Product
57	SWITCH-CRADLE-WATER SIDE
200	BREAKER STRIP-FZ MULLION
201	BREAKER STRIP-TOP & BTM.
205	SHELF FZ-TOP
205	GEN WR02X7060
205	SHELF FZ-2ND
206	SHELF FZ-BTM.
206	PLASTIC SLEEVE
207	GEN WR02X4676
208	GEN WR02X4674
209	GEN WR38X5180
211	GEN WR21X5074
212	GEN WR02X6042
213	SHELF FZ-4TH
214	GEN WR01X1332
215	GEN WR17X6085
216	GEN WR14X0274
219	GEN WR02X4421
220	PLUG RECESSED
221	TROUGH DRAIN
224	GEN WR02X4967
225	GEN WR02X7088
228	LOW SIDE ASM
230	BRACKET DEF HTR
230	SHIELD DEF HTR END
230	GEN WR51X0231
231	GEN WR02X5008
232	GEN WR02X4971
234	GEN WR02X4546
236	GEN WR02X4548
240	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
241	DUCT AIR FZ VERT
241	PLUG BUTTON
242	3RD SHELF-PLASTIC
243	TRIM SHELF
247	GEN WR17X1413
248	GEN WR14X0272
249	GEN WR17X1414
251	GEN WR02X2880
252	GEN WR02X7042
254	SHIELD LIGHT FZ
256	GEN WR02X4839
257	BRACKET DEF CONTROL
257	WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
259	GEN WR17X6034
260	PAN WATER DISPOSAL ASM
260	GEN WR02X7074
261	WR49X5124 GE Refrigerator Hinge and Cam Assembly
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X4742
265	GEN WR02X3598
266	GEN WR30X0258
266	GEN WR38X5255
267	GEN WR17X2075
268	RECEPTACLE-ICEMAKER
269	TUBE WATER FILL
269	GEN WR01X1543
270	GROMMET WATER FILL
270	WR2X4754 GE Refrigerator Fill Clamp
271	GEN WR02X7363
272	GEN WR02X7364
277	GEN WR17X1492
278	WHEEL ASM FRT
288	GEN WR79X5157
288	GRILLE-O. CASE
289	END CAP-GRILLE-R.SIDE (SL)
289	GEN WR02X6810
290	GEN WR02X6811
290	END CAP-GRILLE-L.SIDE (SL)
293	GEN WR02X7080
368	GEN WR02X7311
387	COVER IM ASM
389	SUPPORT SHELF
423	GEN WR02X6347
423	GEN WR02X6350
435	SOCKET LAMP
446	HINGE TOP-FRZ DOOR
447	COVER HINGE
450	GEN WR02X4194
456	RETAINER BREAKER
456	BREAKER STRIP-HINGE SIDE
551	GEN WZ04X0244
552	SCR 12-24 TT HXW 1 3/64S
560	GEN WR01X1249
578	WZ2X464D GE Screw
608	COVER SWITCH HP DISP
609	WR23X37285 GE Light Switch
610	GEN WR60X0131
611	BRACKET EVAP FAN
612	BRACKET EVAP FAN
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
691	GEN WX02X0560
32767	GEN WR02X4816
