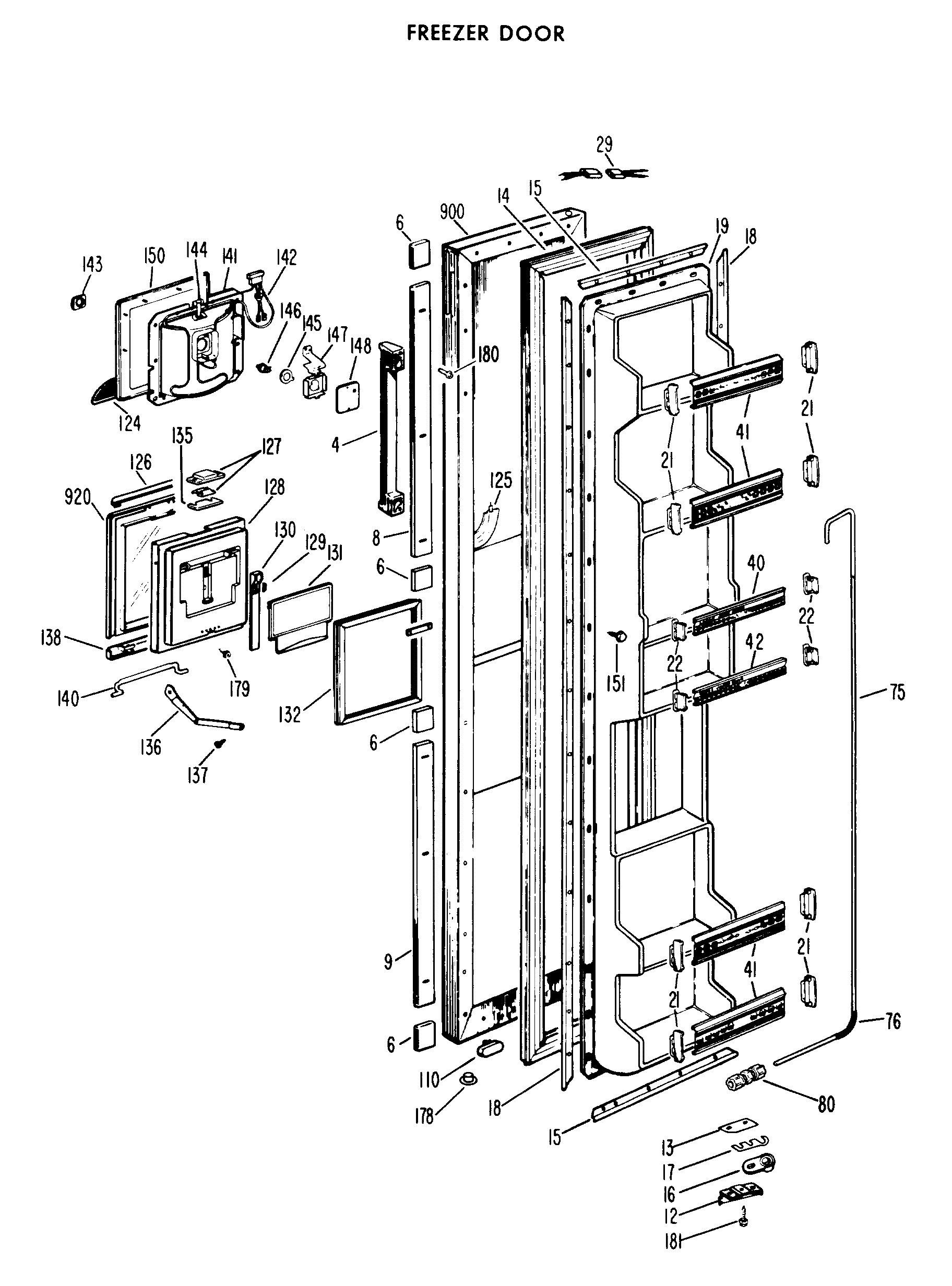

CSX22TGC FREEZER DOOR

CSX22TGC FREEZER DOOR

Written by

in

CSX22TGC FREEZER DOOR

Products

PositionProduct
4GEN WR12X5148
4GEN WR01X5476
4END CAP-HANDLE
4GEN WR12X5149
6GEN WR12X5106
8GEN WR38X5351
9TRIM DOOR
12GEN WR02X7213
13GEN WR02X4599
14GEN WR24X0252
15GEN WR17X1231
16WR2X4901 GE Door Hinge Cam Riser
18GEN WR17X1169
19DOOR INNER FZ
21GEN WR02X4100
22GEN WR02X5795
29GEN WR49X5103
29GEN WR49X5102
40GEN WR71X6006
41GEN WR71X5998
42GEN WR71X6007
75TUBE WATER LINE ASM DISP
76GEN WR02X4633
80GEN WR02X4265
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
110GEN WR02X4678
124GEN WR02X6228
125HEATER BRKR FRAME ASM
126HANDLE MINI DOOR ASM
127LATCH MINI DOOR
127SPRING LATCH MINI DOOR
127HOUSING LATCH MINI DOOR
128DOOR INNER MINI
128INSUL MINI DOOR
129SPRING
130SLIDE HOOK MINI DR
131HOOK MINI DOOR
131GEN WR02X6391
132GASKET MINI DOOR
135GEN WR10X5030
136STOP DOOR-R. SIDE
136STOP DOOR-L. SIDE
137CLIP U
137SCR DOOR STOP
138CLIP MINI DOOR LATCH
138BASE HINGE MINI DOOR
140SCR 8-18 BAT HX 7/8SSXTW
140HINGE MINI DOOR
141RECESS WATER DISP
142HARNESS RECESS WTR DISP
142GASKET RECESS DISP
143PAD RECESS WATER SW
144CLAMP HOSE
144GROMMET WATER FILL LNR
145PLATE RECESS SWITCH MTG
146SWITCH PLUNGER
147BRACKET RECESS SWITCH
148COVER RECESS SWITCH
150GEN WR38X1057
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
178GEN WR02X6058
179SCREW
181GEN WZ06X0105
900GEN WR78X7486
920GEN WR17X6094
