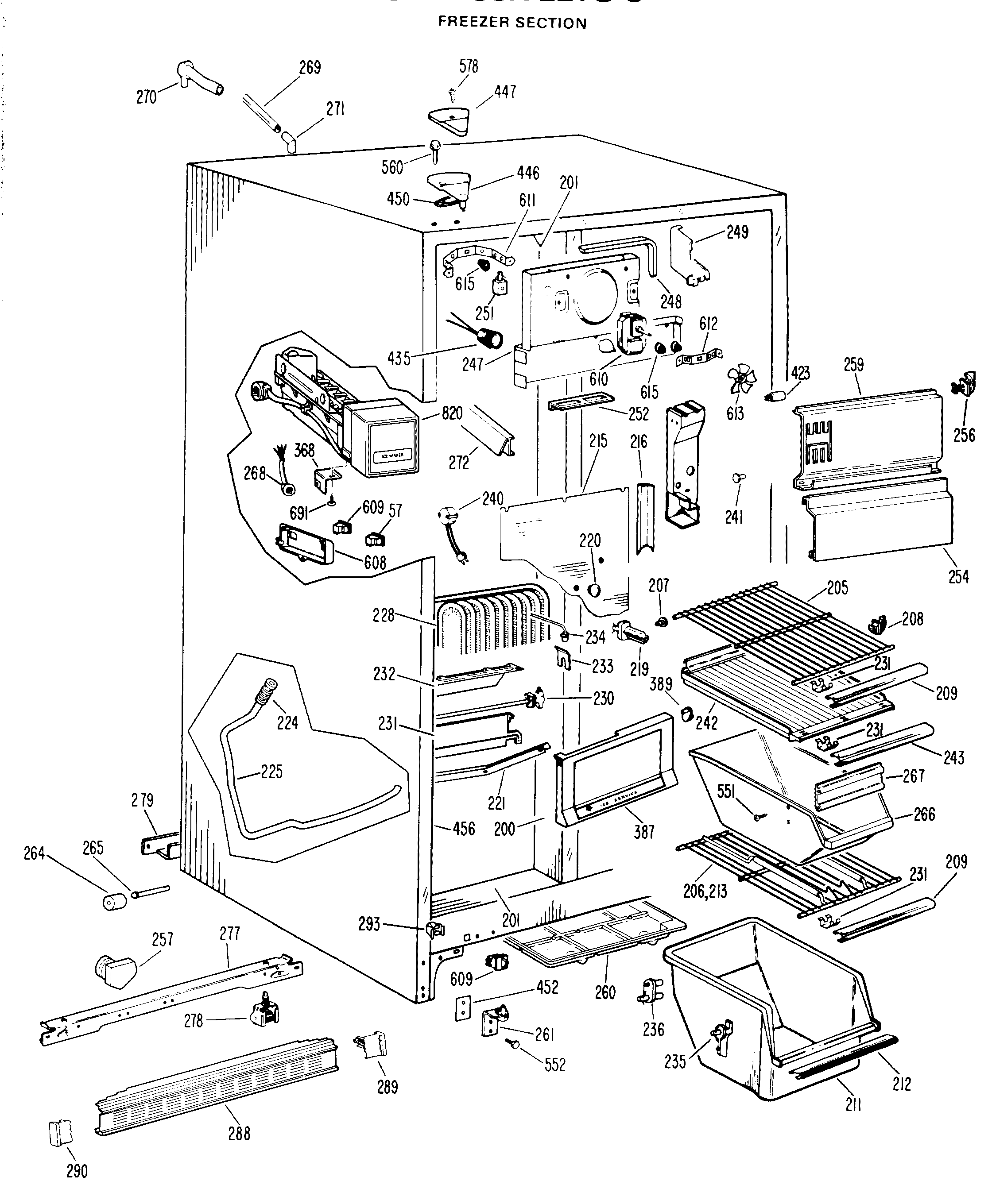

CSX22TGC FREEZER SECTION

CSX22TGC FREEZER SECTION

Written by

in

CSX22TGC FREEZER SECTION

Products

Position	Product
57	SWITCH-CRADLE-WATER SIDE
200	BREAKER STRIP-FZ MULLION
201	BREAKER STRIP-TOP & BTM.
205	SHELF FZ-2ND
205	SHELF FZ-TOP
205	GEN WR02X7060
206	SHELF FZ-BTM.
206	PLASTIC SLEEVE
207	GEN WR02X4676
208	GEN WR02X4674
209	GEN WR38X5180
211	GEN WR21X5074
212	GEN WR02X6042
213	SHELF FZ-4TH
214	GEN WR01X1332
214	GEN WR02X7257
215	GEN WR17X6085
215	CLIP EVAP COVER
216	GEN WR14X0274
219	GEN WR02X4421
220	PLUG RECESSED
221	TROUGH DRAIN
224	GEN WR02X4967
225	GEN WR02X7088
225	GEN WR02X4838
225	GEN WR01X5042
228	LOW SIDE ASM
228	GEN WR02X4982
230	GEN WR51X0231
230	SHIELD DEF HTR END
230	BRACKET DEF HTR
231	GEN WR02X5008
232	GEN WR02X4971
234	GEN WR02X4546
236	GEN WR02X4548
240	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
241	PLUG BUTTON
241	DUCT AIR FZ VERT
242	3RD SHELF-PLASTIC
243	TRIM SHELF
247	GEN WR17X1413
248	GEN WR14X0272
249	GEN WR17X1414
251	GEN WR02X2880
252	GEN WR02X7042
254	SHIELD LIGHT FZ
256	GEN WR02X4839
257	BRACKET DEF CONTROL
257	WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
259	GEN WR17X6034
260	PAN WATER DISPOSAL ASM
260	GEN WR02X7074
261	WR49X5124 GE Refrigerator Hinge and Cam Assembly
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3598
265	GEN WR02X4742
266	GEN WR38X5255
266	GEN WR30X0258
267	GEN WR17X2075
268	RECEPTACLE-ICEMAKER
269	GEN WR01X1543
269	GEN WR02X7509
270	WR2X4754 GE Refrigerator Fill Clamp
270	GROMMET WATER FILL
271	GEN WR02X7363
272	GEN WR02X7364
277	GEN WR17X1492
278	WHEEL ASM FRT
288	GRILLE-O. CASE
289	GEN WR02X6810
290	GEN WR02X6811
293	GEN WR02X7080
368	GEN WR02X7311
387	COVER IM ASM
389	SUPPORT SHELF
423	GEN WR02X6350
423	GEN WR02X6347
435	SOCKET LAMP
435	GEN WR02X4849
446	HINGE TOP-FRZ DOOR
447	COVER HINGE
450	GEN WR02X4194
452	GEN WR02X7190
456	RETAINER BREAKER
456	BREAKER STRIP-HINGE SIDE
551	GEN WZ04X0244
552	SCR 12-24 TT HXW 1 3/64S
578	WZ2X464D GE Screw
608	COVER SWITCH HP DISP
609	WR23X37285 GE Light Switch
610	GEN WR60X0168
611	BRACKET EVAP FAN
612	BRACKET EVAP FAN
613	WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615	GEN WR02X2945
691	GEN WX02X0560
