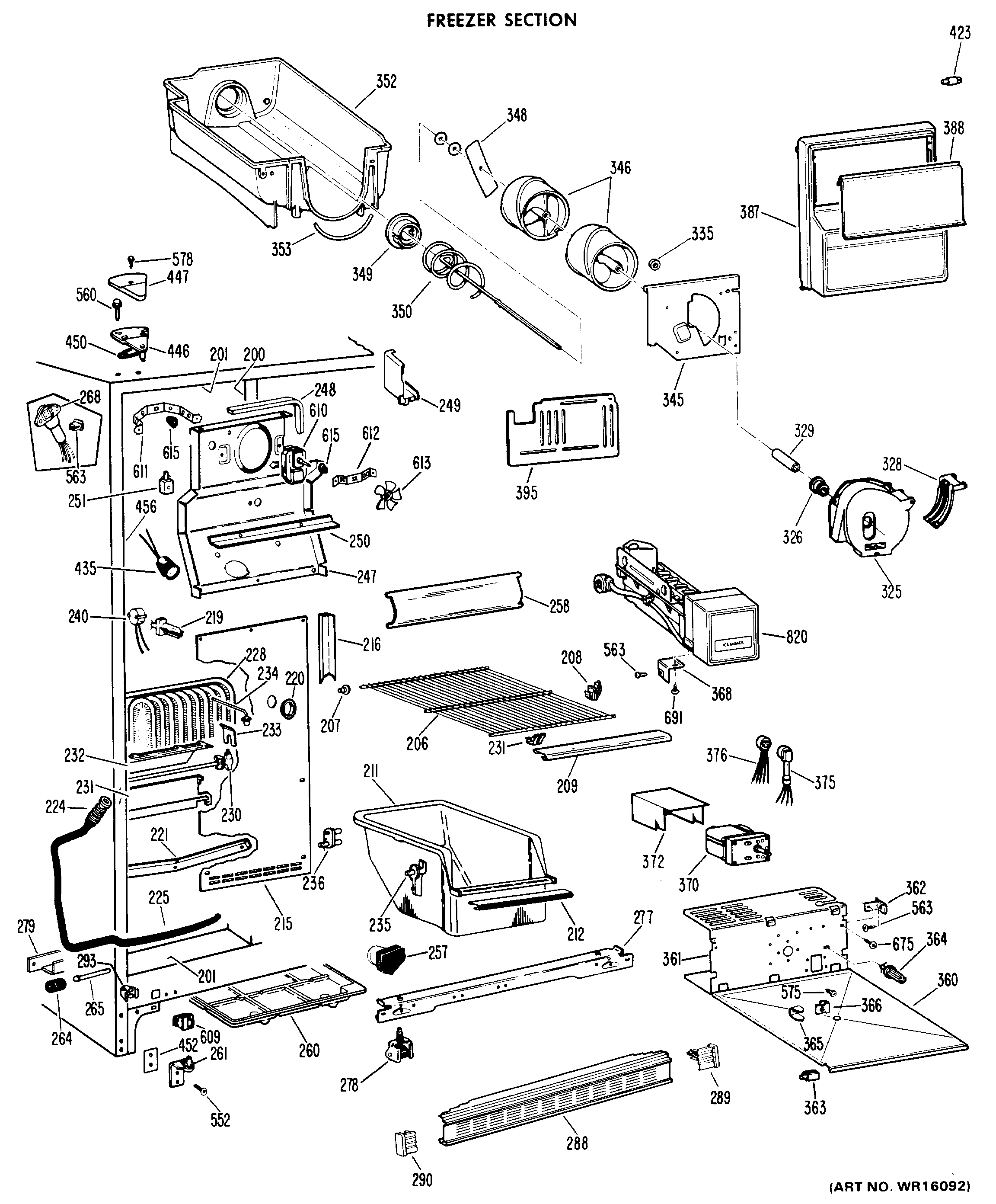

CSX24DGB FREEZER SECTION

CSX24DGB FREEZER SECTION

Written by

in

CSX24DGB FREEZER SECTION

Products

Position	Product
200	BREAKER STRIP-FZ MULLION
201	BREAKER STRIP-TOP & BTM.
206	GEN WR71X1366
207	GEN WR02X4676
208	GEN WR02X4674
211	GEN WR21X0160
212	GEN WR02X6061
213	GEN WR38X5226
214	GEN WR14X0274
214	GEN WR01X1332
215	GEN WR17X2003
219	GEN WR02X4421
220	PLUG RECESSED
221	GEN WR17X1245
224	GEN WR02X4967
225	GEN WR02X7088
228	GEN WR85X0103
230	GEN WR02X4557
230	GEN WR51X0258
230	SHIELD DEF HTR END
231	GEN WR02X5008
232	GEN WR02X4970
234	GEN WR02X4546
236	GEN WR02X4548
240	WR50X55 GE Refrigerator Defrost Thermostat 55 Degree with Clip
247	GEN WR02X4845
247	GEN WR17X1425
248	GEN WR14X0272
249	GEN WR17X1414
250	GEN WR02X4844
251	GEN WR02X2880
257	SCR 6-32 D TR 3/8 SS
257	WR9X482 GE Refrigerator Defrost Timer 8 Hour 30 Minute
257	BRACKET DEF CONTROL
258	GEN WR17X1424
260	GEN WR02X7074
260	PAN WATER DISPOSAL ASM
261	WR49X5124 GE Refrigerator Hinge and Cam Assembly
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3598
265	GEN WR02X4742
268	RECEPTACLE-ICEMAKER
277	GEN WR17X1487
278	WHEEL ASM FRT
279	GEN WR17X2005
288	GEN WR79X5145
288	GEN WR79X5158
289	GEN WR02X6810
289	END CAP-GRILLE-R.SIDE (SL)
290	GEN WR02X6811
290	END CAP-GRILLE-L.SIDE (SL)
293	GEN WR02X7080
325	WR17X2061 GE Refrigerator Crush Dispenser
326	GEN WR01X1585
326	GEN WR01X1366
326	WR1X1367D GE Refrigerator Return Package 12
328	DEFLECTOR ICE DISP
328	WR2X4143 GE Refrigerator Pivot
329	GEN WR02X6326
335	GEN WR02X4139
345	PLATE FRONT DISP
346	HELIX REAR-DISP
346	HELIX FRONT-DISP
348	GEN WR02X7351
349	WR2X4550 GE Refrigerator Drive Cup
350	GEN WR17X2054
352	WR30X256 GE Refrigerator Ice Dispenser
353	WR2X7905 GE Refrigerator Bucket Seal
360	SHELF BUCKET BTM DISPLAY
360	GEN WR02X4566
361	GEN WR17X2079
362	GEN WR02X4587
363	GEN WR02X4465
364	GEN WR02X7310
365	GEN WR02X4854
366	GEN WR01X1547
368	GEN WR02X7311
370	MOTOR AUGER DISP
372	WR02X11295 GE Refrigerator Auger Motor Boot
375	GEN WR23X0194
376	GEN WR23X0189
386	GEN WZ06X0100
387	GEN WR17X2077
388	GEN WR17X2078
388	GEN WR38X1054
423	GEN WR02X6347
435	SOCKET LAMP
446	HINGE TOP-FRZ DOOR
447	GEN WR02X7246
447	GEN WR02X7247
450	GEN WR02X4194
456	RETAINER BREAKER
456	BREAKER STRIP-HINGE SIDE
552	SCR 12-24 TT HXW 1 3/64S
560	GEN WR01X1249
563	WZ4X241D GE Screw Package
563	GEN WR01X1326
578	WZ2X464D GE Screw
609	WR23X37285 GE Light Switch
610	GEN WR60X0131
611	BRACKET EVAP FAN
612	BRACKET EVAP FAN
613	SHIM HINGE BTM.
