CSX24DJB 0

CSX24DJB 0

Written by

in

CSX24DJB 0

Products

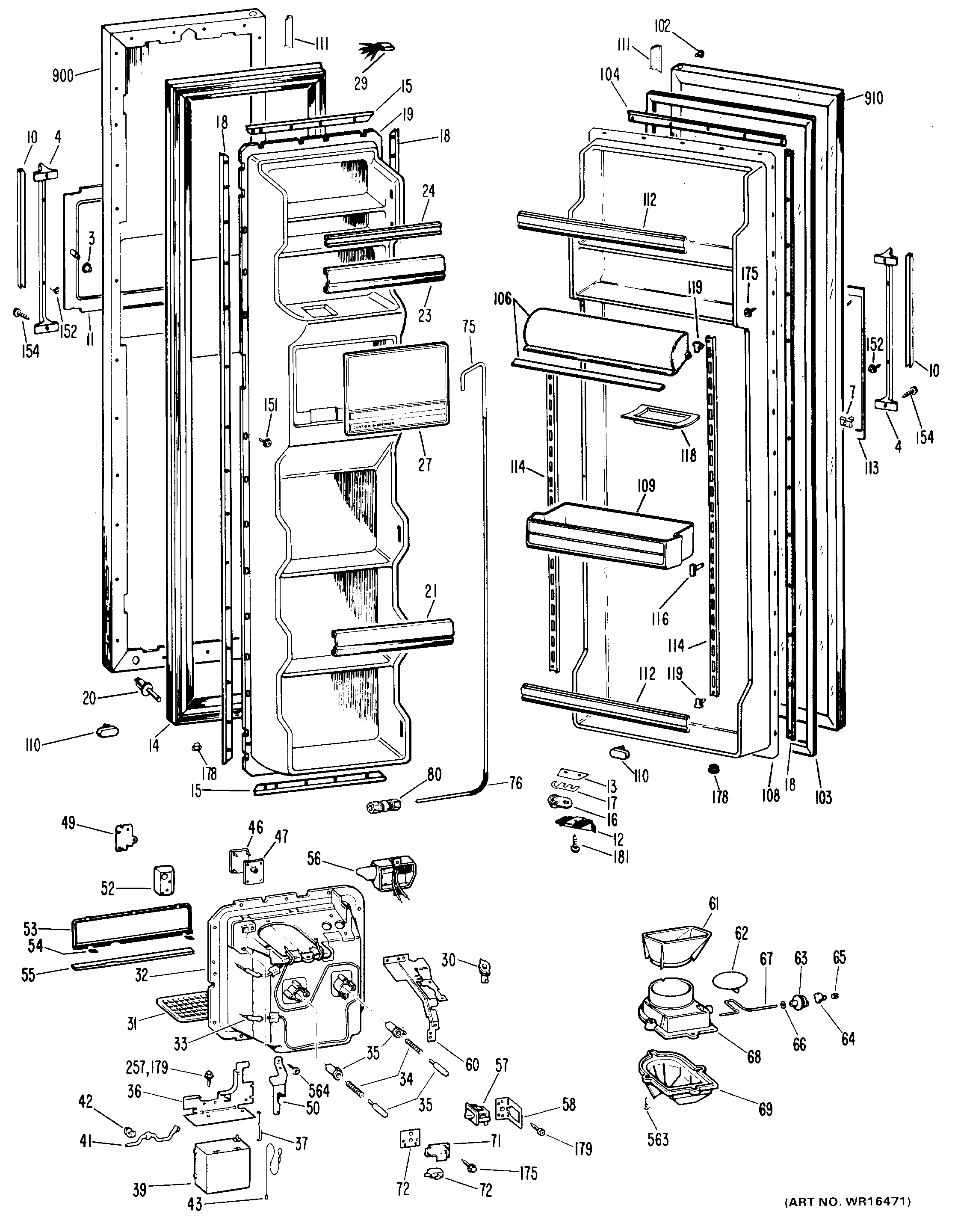

PositionProduct
1GEN 31-5023
3GEN WR02X3757
4GEN WR12X0428
4GEN WR02X4573
4GEN WR02X4572
7GEN WR01X1721
7GEN WR01X1246
10GEN WR12X0520
11GEN WR38X1020
11GEN WR01X5469
12GEN WR02X7213
13GEN WR02X4599
14GEN WR24X5233
15GEN WR17X1167
16WR2X4901 GE Door Hinge Cam Riser
17GEN WR02X6043
18GEN WR17X1169
19GEN WR77X5656
20GEN WR23X0161
21GEN WR17X6201
23GEN WR17X6200
24GEN WR17X6263
27GEN WR17X5977
29GEN WR49X5102
29HARNESS RECESS
30GROMMET WATER FILL RECES
31GEN WR02X3953
32RECESS DISPENSER (BLK)
32GEN WR14X0245
33GEN WR51X0304
34SPRING-RECESS DUCT
35GEN WR02X6325
36GEN WR02X4235
37GEN WR02X4248
39GEN WR09X0268
41GEN WR17X1048
42GEN WR02X4234
43LANYARD
43GEN WR02X4069
46GEN WR02X7366
47GEN WR02X7365
49GEN WR02X4242
50GEN WR17X1259
52GEN WR02X4459
53GEN WR17X6270
54GEN WR02X4231
55GEN WR38X0844
56GEN WR02X3959
56LAMP 7C7
56INSULATOR HOUSING
57SWITCH-CRADLE-WATER SIDE
58PLATE WATER SW RECESS
60GEN WR02X7244
61GEN WR17X1261
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64ARM TIME DELAY DISPLAY
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68GASKET DUCT-R. SIDE
68GASKET DUCT-L. SIDE
68DUCT RECESS
69GEN WR17X5881
72SUPPORT SW.
72SWITCH SELECT-CUBES DISP
72PLATE MTG-DISP SWITCH
75GEN WR17X1408
76GEN WR02X4633
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
80GEN WR02X4265
87WZ4X241D GE Screw Package
102GEN WR02X4990
103GEN WR24X5231
104GEN WR17X1168
106GEN WR38X5404
106GEN WR22X5080
108GEN WR77X5657
109GEN WR71X6060
110GEN WR02X4678
111GEN WR38X1037
112GEN WR17X6193
113GEN WR38X1019
114GEN WR17X1391
116GEN WR02X7507
118GEN WR19X5003
119GEN WR02X7508
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
152GEN WZ04X0355
153WR1X1505D GE Refrigerator Screw Package of 12
154SCR SPECIAL 10-16
175SCREW SW. CRADLE
177SCREW
178GEN WR02X6058
179SCREW
181GEN WZ06X0105
257WR9X502 GE Refrigerator Defrost Timer
257GEN WR02X7568
257SCR 6-32 D TR 3/8 SS
276GEN WR01X1510
279GEN WR17X2098
386SCR 8-18 B PH 3/8 S
