CSX24XJC 0

CSX24XJC 0

Written by

in

CSX24XJC 0

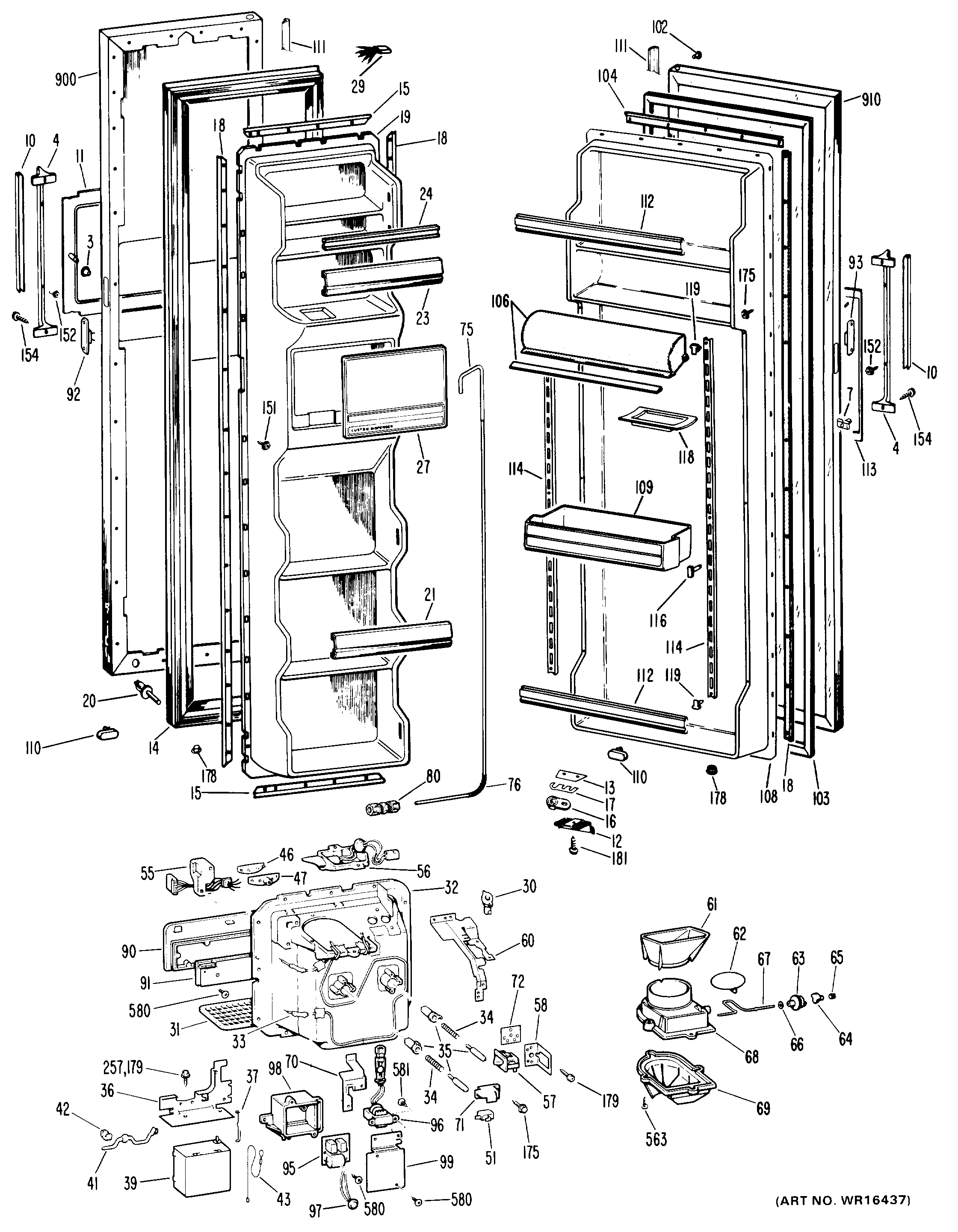

Products

Position	Product
1	GEN 31-5023
3	GEN WR02X3757
4	GEN WR12X0428
4	GEN WR02X4573
4	GEN WR02X4572
7	GEN WR01X1721
7	GEN WR01X1246
10	GEN WR12X0520
11	GEN WR01X5469
11	GEN WR38X1077
12	GEN WR02X7213
13	GEN WR02X4599
14	GEN WR24X5233
15	GEN WR17X1167
16	WR2X4901 GE Door Hinge Cam Riser
17	GEN WR02X6043
18	GEN WR17X1169
19	GEN WR77X5656
20	GEN WR23X0161
21	GEN WR17X6201
22	GEN WR01X1688
23	GEN WR17X6200
24	GEN WR17X6263
27	GEN WR17X6257
29	HARNESS- O DOOR RECESS
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	RECESS DISPENSER(BLACK)
32	GEN WR14X0245
33	HEATER RECESS & DUCT ASM
34	SPRING-RECESS DUCT
35	GEN WR02X6325
36	GEN WR02X4235
37	GEN WR02X4248
39	GEN WR09X0268
41	GEN WR17X1048
42	GEN WR02X4234
43	GEN WR02X4069
43	LANYARD
46	GEN WR02X7366
47	GEN WR02X7365
55	HARNESS & HOUSING-RECESS
56	LAMP 7C7
56	INSULATOR HOUSING
56	HOUSING & SOCKET AS DISP
57	SWITCH-CRADLE-WATER SIDE
58	PLATE WATER SW RECESS
60	GEN WR02X7244
61	GEN WR17X1261
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	GASKET DUCT-L. SIDE
68	DUCT RECESS
68	GASKET DUCT-R. SIDE
69	GEN WR17X5881
70	SUPPORT SELECTOR SWITCH
72	PLATE MTG-DISP SWITCH
72	SWITCH SELECT-CUBES DISP
72	SUPPORT SW.
75	GEN WR17X1408
76	GEN WR02X4633
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
80	GEN WR02X4265
87	WZ4X241D GE Screw Package
90	GEN WR55X0018
91	GEN WR02X7314
91	BOARD ASM LOGIC
91	GEN WR02X7313
92	SENSOR DOOR FF & FZ
93	GEN WR01X1709
93	MAGNET DOOR SENSOR
95	BOARD ASM POWER SUPPLY
96	TRANSFORMER ASM
97	GEN WR52X0023
98	HOUSING POWER MODULE
99	COVER
102	GEN WR02X4990
103	GEN WR24X5231
104	GEN WR17X1168
106	GEN WR22X5080
106	GEN WR38X5404
108	GEN WR77X5657
109	GEN WR71X6060
110	GEN WR02X4678
111	GEN WR38X1037
112	GEN WR17X6193
113	GEN WR38X1019
114	GEN WR17X1391
116	GEN WR02X7507
118	GEN WR19X5003
119	GEN WR02X7508
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
152	GEN WZ04X0355
153	WR1X1505D GE Refrigerator Screw Package of 12
154	SCR SPECIAL 10-16
175	SCREW SW. CRADLE
177	CLIP-CONTROL HOUSING
