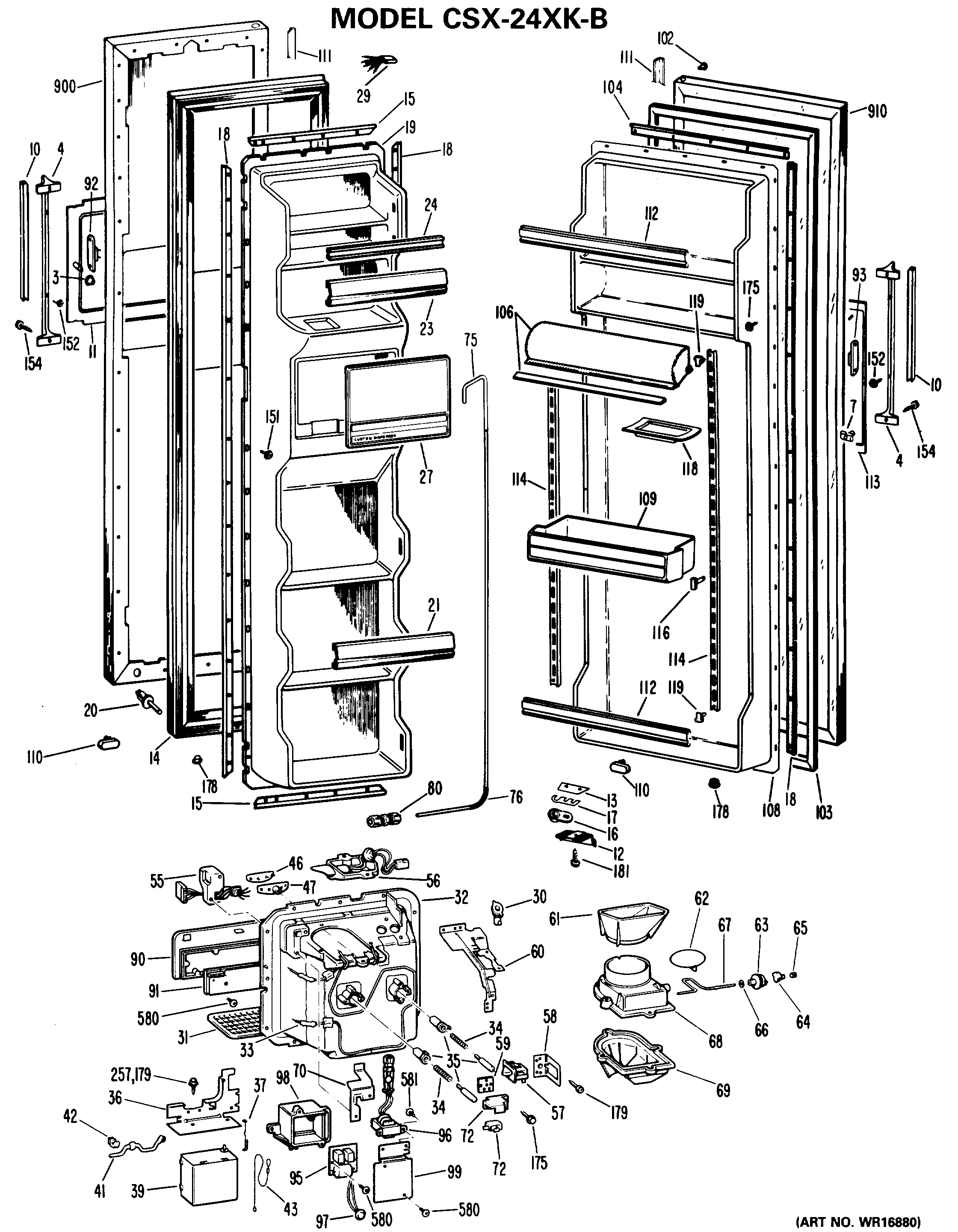

CSX24XKB 0

CSX24XKB 0

Written by

in

CSX24XKB 0

Products

Position	Product
1	GEN 31-5023
3	GEN WR02X3757
4	GEN WR12X0428
4	GEN WR02X4573
4	GEN WR02X4572
10	GEN WR12X0520
11	GEN WR38X1077
11	GEN WR01X5469
12	GEN WR02X7213
13	GEN WR02X4599
14	GEN WR24X5233
15	GEN WR17X1167
16	WR2X4901 GE Door Hinge Cam Riser
17	GEN WR02X6043
18	GEN WR17X1169
19	GEN WR77X5656
20	GEN WR23X0161
21	GEN WR17X6201
23	GEN WR17X6200
24	GEN WR17X6263
27	GEN WR17X6257
29	HARNESS- O DOOR RECESS
29	GEN WR49X0308
30	GROMMET WATER FILL RECES
31	GEN WR02X3953
32	GEN WR14X0245
32	RECESS DISPENSER(BLACK)
33	HEATER RECESS & DUCT ASM
34	SPRING-RECESS DUCT
35	GEN WR02X6325
36	GEN WR02X4235
37	GEN WR02X4248
39	GEN WR09X0268
41	GEN WR17X1048
42	GEN WR02X4234
43	GEN WR02X4069
43	LANYARD
46	GEN WR02X7366
47	GEN WR02X7365
55	HARNESS & HOUSING-RECESS
56	GEN WR02X7910
56	INSULATOR HOUSING
56	LAMP 7C7
60	GEN WR02X7244
61	GEN WR17X1261
62	DUCT DOOR W/O LEVER
63	PULLEY TIME DELAY
64	ARM TIME DELAY DISPLAY
65	RING COMPRESSION
66	WASHER
67	CRANK DOOR DUCT DISP
68	GASKET DUCT-L. SIDE
68	GASKET DUCT-R. SIDE
68	DUCT RECESS
69	GEN WR17X5881
70	SUPPORT SELECTOR SWITCH
72	PLATE MTG-DISP SWITCH
72	SUPPORT SW.
72	SWITCH SELECT-CUBES DISP
75	GEN WR17X1408
76	GEN WR02X4633
80	GEN WR02X4265
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
90	GEN WR55X0023
91	GEN WR02X7314
91	GEN WR02X7313
91	BOARD ASM LOGIC
92	SENSOR DOOR FF & FZ
93	MAGNET DOOR SENSOR
93	GEN WR01X1709
95	BOARD ASM POWER SUPPLY
96	TRANSFORMER ASM
97	THERMISTOR & CONN ASM
98	HOUSING POWER MODULE
99	COVER
102	GEN WR02X4990
103	GEN WR24X5231
104	GEN WR17X1168
106	GEN WR38X5404
106	GEN WR22X5080
108	GEN WR77X5657
109	GEN WR71X6060
110	GEN WR02X4678
111	GEN WR38X1037
112	GEN WR17X6193
113	GEN WR38X1019
114	GEN WR17X1391
116	GEN WR02X7507
118	GEN WR19X5003
119	GEN WR02X7508
151	WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
152	GEN WZ04X0355
153	WR1X1505D GE Refrigerator Screw Package of 12
154	SCR SPECIAL 10-16
175	SCREW SW. CRADLE
178	GEN WR02X6058
179	SCREW
181	GEN WZ06X0105
202	RETAINER BREAKER-BTM.
214	GEN WR02X7257
257	SCR 6-32 D TR 3/8 SS
257	WR9X502 GE Refrigerator Defrost Timer
558	GEN WZ06X0
