CSX27DRXDWW FRESH FOOD SECTION

CSX27DRXDWW FRESH FOOD SECTION

Written by

in

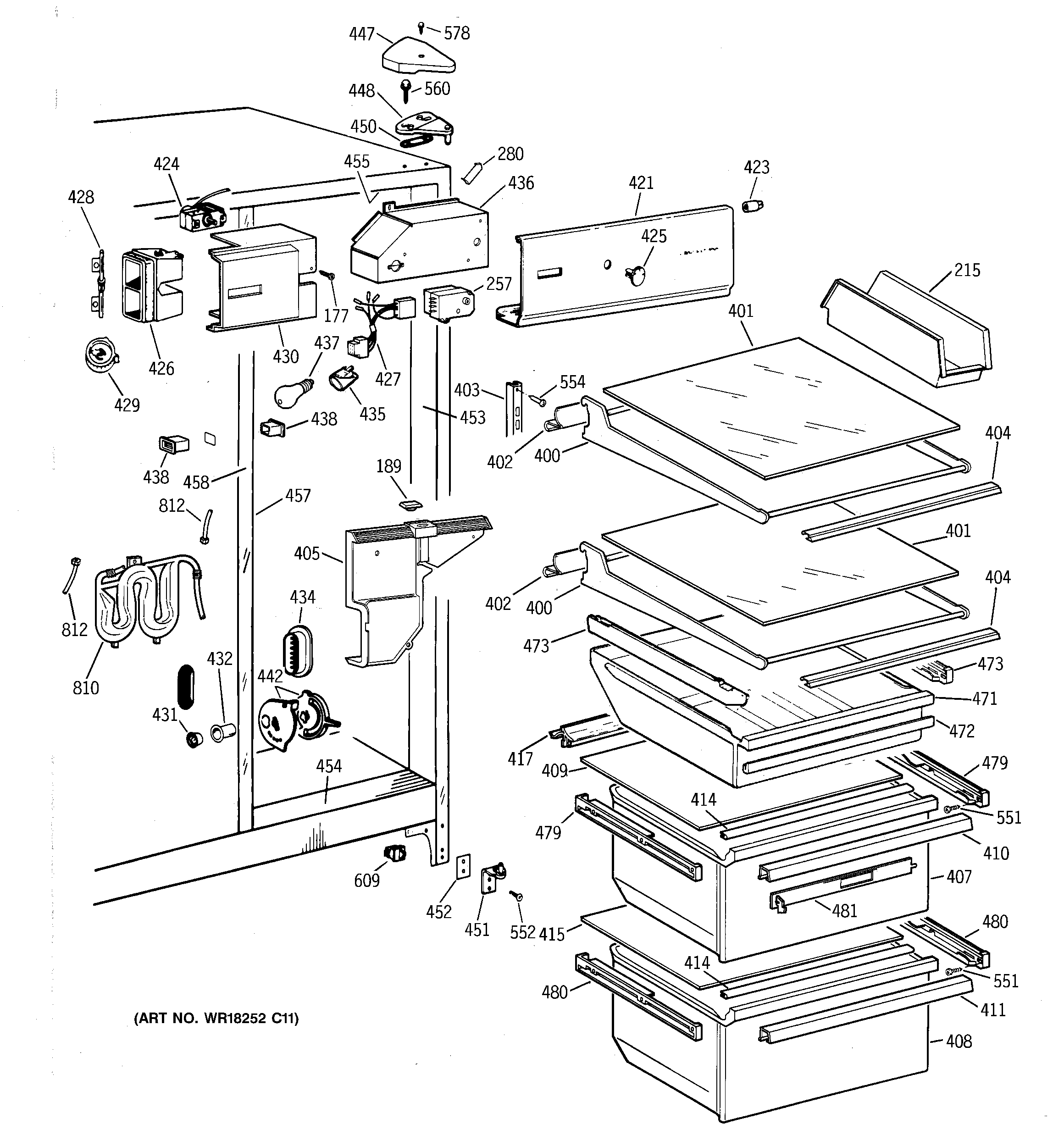

CSX27DRXDWW FRESH FOOD SECTION

Products

PositionProduct
177SCREW
189GEN WR01X2115
215GEN WR32X1576
257DEFROST TIMER
280GEN WR02X8518
400GEN WR71X2303
401GEN WR32X1536
402GEN WR38X2214
403WR72X254 GE Refrigerator Side Track Assembly
404GEN WR38X2216
405GEN WR17X3890
407GEN WR32X1532
408GEN WR32X1531
409GEN WR32X1530
410GEN WR17X4034
411GEN WR17X4033
414GEN WR14X0431
415GEN WR32X1473
417GEN WR14X0470
421GEN WR17X4035
423GEN WR02X6347
424GEN WR09X0569
425GEN WR02X9320
426GEN WR02X8514
426GEN WR02X8425
427GEN WR23X0316
428GEN WR02X9362
429GEN WR02X9321
430GEN WR17X2209
431WR2X9299 GE Refrigerator Air Duct Cap Mullion
432GEN WR02X8654
434GEN WR02X9431
435WR2X9391 GE Socket and Terminal
436GEN WR02X7736
437RANGE ONLY 40W 120V APPL BULB
438GEN WR02X7476
438GEN WR02X8655
442GEN WR02X9430
447GEN WR02X8333
448GEN WR13X0644
450GEN WR02X4194
451GEN WR13X0621
452SHIM HINGE BTM.
452NUTSTRIP HINGE
452GEN WR02X9443
453GEN WR40X1734
454GEN WR40X1735
455GEN WR40X1736
457GEN WR40X1737
458GEN WR02X9376
458GEN WR02X7033
458GEN WR40X1738
458GEN WR02X4739
471WR2X8349 GE Screw Grommet
471GEN WR32X1348
472GEN WR38X2225
473GEN WR72X0211
473WR1X2048 GE Refrigerator Slide Bearing
473GEN WR72X0210
479WR72X239 GE Refrigerator Left Hand Slide Assembly
479WR72X240 GE Slide Assembly Right Hand
480WR72X252 GE Refrigerator Slide Assembly Left Hand
480GEN WR72X0253
481GEN WR01X2079
551GEN WZ04X0244
552GEN WR01X2078
554WR01X10601 GE Refrigerator Screw 10-24 TT IHXW
560GEN WR01X2140
578WZ2X464D GE Screw
609WR23X37285 GE Light Switch
810WR17X4358 GE Refrigerator Water Tank
812WR17X2891 GE Refrigerator 5/16" X 6FT Plastic Water Line Tubing
