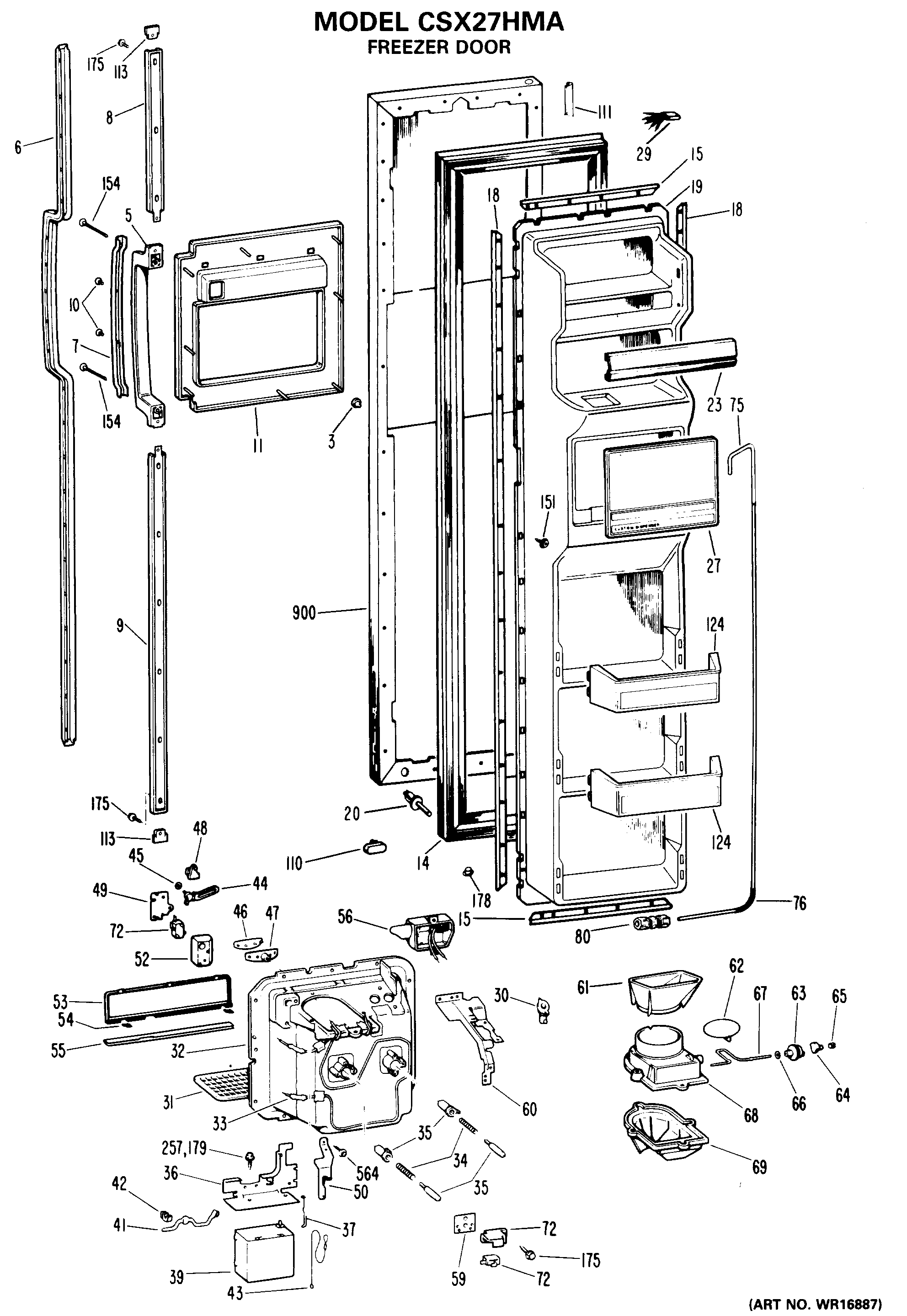

CSX27HMA FREEZER DOOR

CSX27HMA FREEZER DOOR

Written by

in

CSX27HMA FREEZER DOOR

Products

PositionProduct
1GEN 31-5024
3GEN WR02X3757
5GEN WR12X0618
6GEN WR12X0619
7GEN WR12X0620
8GEN WR12X0617
9GEN WR12X0616
10GEN WR01X1766
11GEN WR01X5469
11GEN WR38X1456
14GEN WR24X0447
15GEN WR17X1167
18GEN WR17X2092
19GEN WR77X0504
20GEN WR23X0161
23GEN WR71X1849
26GEN WR02X7844
27GEN WR17X5977
29GEN WR49X0308
29HARNESS RECESS
30GROMMET WATER FILL RECES
31GEN WR02X3953
32RECESS DISPENSER (BLK)
32GEN WR14X0245
33HEATER RECESS & DUCT ASM
34SPRING-RECESS DUCT
35GEN WR02X6325
36GEN WR02X8414
37GEN WR02X8403
39GEN WR09X0462
41GEN WR17X2820
42GEN WR02X4234
43WR2X8441 GE Refrigerator Lanyard Assembly
44GEN WR02X4460
45GEN WR02X4240
46GEN WR02X7366
47GEN WR02X7365
48GEN WR02X7951
48GEN WR02X7486
49GEN WR02X4242
50GEN WR17X1259
52GEN WR02X4459
53GEN WR17X2067
54GEN WR02X4231
55GEN WR38X0844
56LAMP 7C7
56INSULATOR HOUSING
56GEN WR02X3959
59GEN WR02X4244
60GEN WR02X7244
61GEN WR17X2093
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64ARM TIME DELAY DISPLAY
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68GASKET DUCT-L. SIDE
68DUCT RECESS
68GASKET DUCT-R. SIDE
69GEN WR17X5881
72GEN WR02X7942
72SWITCH SELECT-CUBES DISP
75GEN WR17X1408
76GEN WR02X4633
80GEN WR02X4265
110GEN WR02X4678
111GEN WR38X1437
112GEN WR17X6362
113GEN WR02X7871
113GEN WR38X1517
123GEN WR71X6109
124GEN WR71X6108
124GEN WR17X2840
125GEN WR22X0367
127GEN WR02X7830
128GEN WR13X0605
128GEN WR13X0606
129GEN WR01X1706
129GEN WR01X1703
129GEN WR01X1760
129WASHER
130GEN WR13X0608
130GEN WR13X0607
131SCR 10-24 TX 11/16
132GEN WR01X1708
133GEN WR17X2096
136GEN WR12X0666
137GEN WR01X1711
137GEN WR38X1055
138GEN WR02X7353
140GEN WR51X0329
141GEN WR02X8157
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
153WR1X1505D GE Refrigerator Screw Package of 12
154GEN WR01X1765
175SCREW SW. CRADLE
178GEN WR02X6058
179SCREW
257DEFROST TIMER
424GEN WR09X0453
564GEN WR01X1
