CSXC24XLR 0

Products

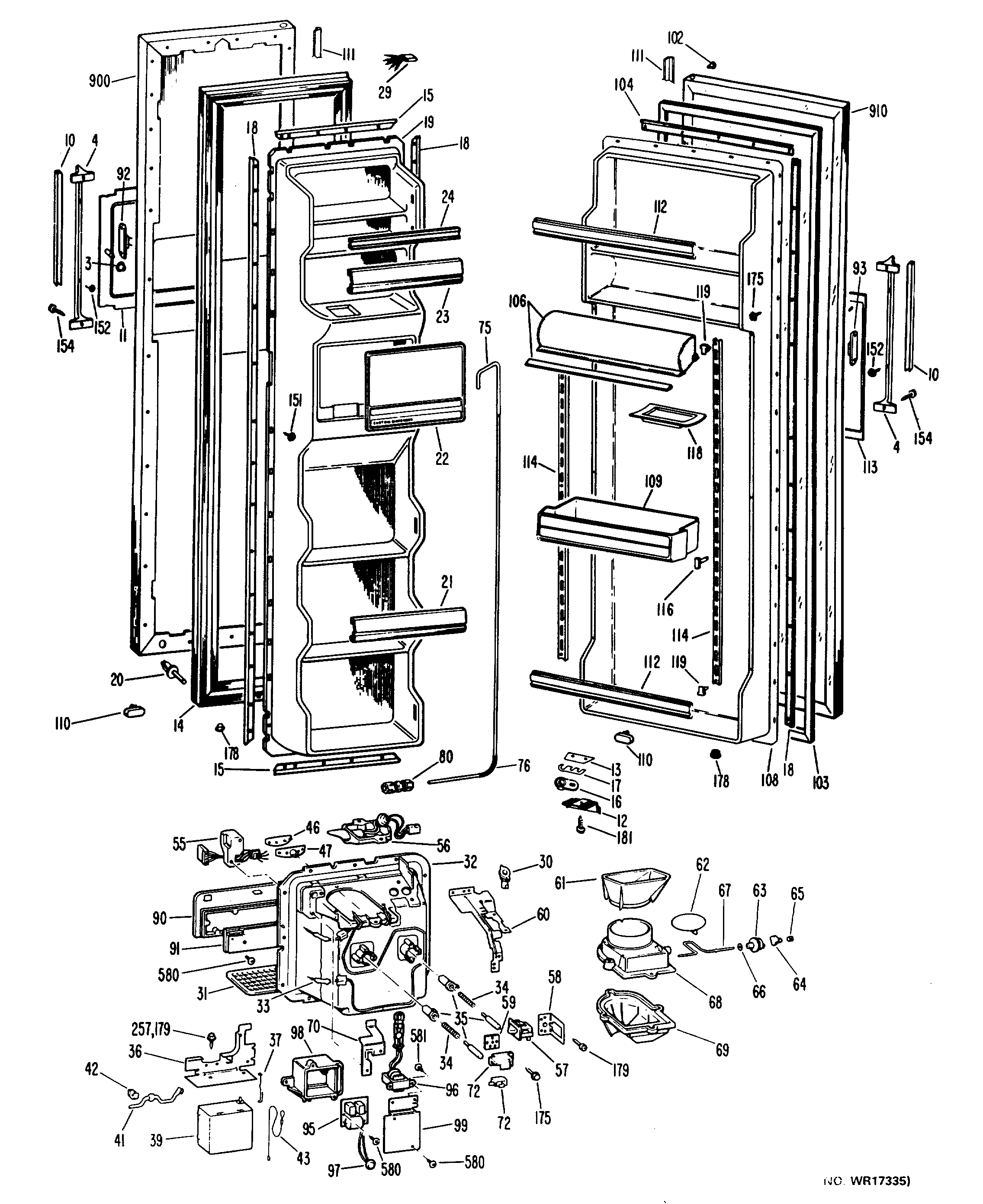

PositionProduct
3GEN WR02X3757
4GEN WR02X4573
4GEN WR02X4572
4GEN WR12X0428
10GEN WR12X0524
11GEN WR01X5469
11GEN WR38X1319
12GEN WR02X7213
13GEN WR02X4599
14GEN WR24X5233
15GEN WR17X1167
16WR2X4901 GE Door Hinge Cam Riser
18GEN WR17X1169
19GEN WR77X0525
20GEN WR23X0161
21GEN WR17X2520
22GEN WR17X2517
23GEN WR17X2521
24GEN WR17X6263
29GEN WR49X0308
29HARNESS- O DOOR RECESS
30GROMMET WATER FILL RECES
31GEN WR02X3953
32RECESS DISPENSER(BLACK)
32GEN WR14X0245
33HEATER RECESS & DUCT ASM
34SPRING-RECESS DUCT
35GEN WR02X6325
36GEN WR02X7840
37GEN WR02X4248
39GEN WR09X0268
41GEN WR17X2820
42GEN WR02X4234
43LANYARD
43GEN WR02X4069
46GEN WR02X7366
47GEN WR02X7365
55HARNESS & HOUSING-RECESS
56LAMP 7C7
56INSULATOR HOUSING
56GEN WR02X7910
60GEN WR02X7244
61GEN WR17X1261
62DUCT DOOR W/O LEVER
63PULLEY TIME DELAY
64ARM TIME DELAY DISPLAY
65RING COMPRESSION
66WASHER
67CRANK DOOR DUCT DISP
68DUCT RECESS
68GASKET DUCT-L. SIDE
68GASKET DUCT-R. SIDE
69GEN WR17X5881
70SUPPORT SELECTOR SWITCH
72GEN WR02X7942
72SWITCH SELECT-CUBES DISP
75GEN WR17X1408
76GEN WR02X4633
80GEN WR02X4265
90GEN WR55X0023
91BOARD ASM LOGIC
91GEN WR02X7313
91GEN WR02X7314
92SENSOR DOOR FF & FZ
93MAGNET DOOR SENSOR
93GEN WR01X1709
95BOARD ASM POWER SUPPLY
96TRANSFORMER ASM
97THERMISTOR & CONN ASM
98HOUSING POWER MODULE
99COVER
102GEN WR02X4990
103GEN WR24X5231
104GEN WR17X1168
106GEN WR38X5404
106GEN WR22X5080
108GEN WR77X0552
109GEN WR71X2090
110GEN WR02X4678
111GEN WR38X1425
112GEN WR17X6362
113GEN WR38X1038
114GEN WR17X1391
116GEN WR02X7507
118GEN WR19X5003
119GEN WR02X7508
151WR01X10623 GE Refrigerator Screw 8-18 AB IHXW 9/16 S
152GEN WZ04X0355
153WR1X1505D GE Refrigerator Screw Package of 12
154SCR SPECIAL 10-16
175SCREW SW. CRADLE
179SCREW
181GEN WZ06X0105
202GEN WR40X1637
257SCR 6-32 D TR 3/8 SS
324PLUG BUTTON LG WH
404GEN WR71X1850
453GEN WR40X1631
454GEN WR40X1629
471WR2X8349 GE Screw Grommet
558GEN WZ06X0107
580GEN WZ02X0561
581GEN WZ04
