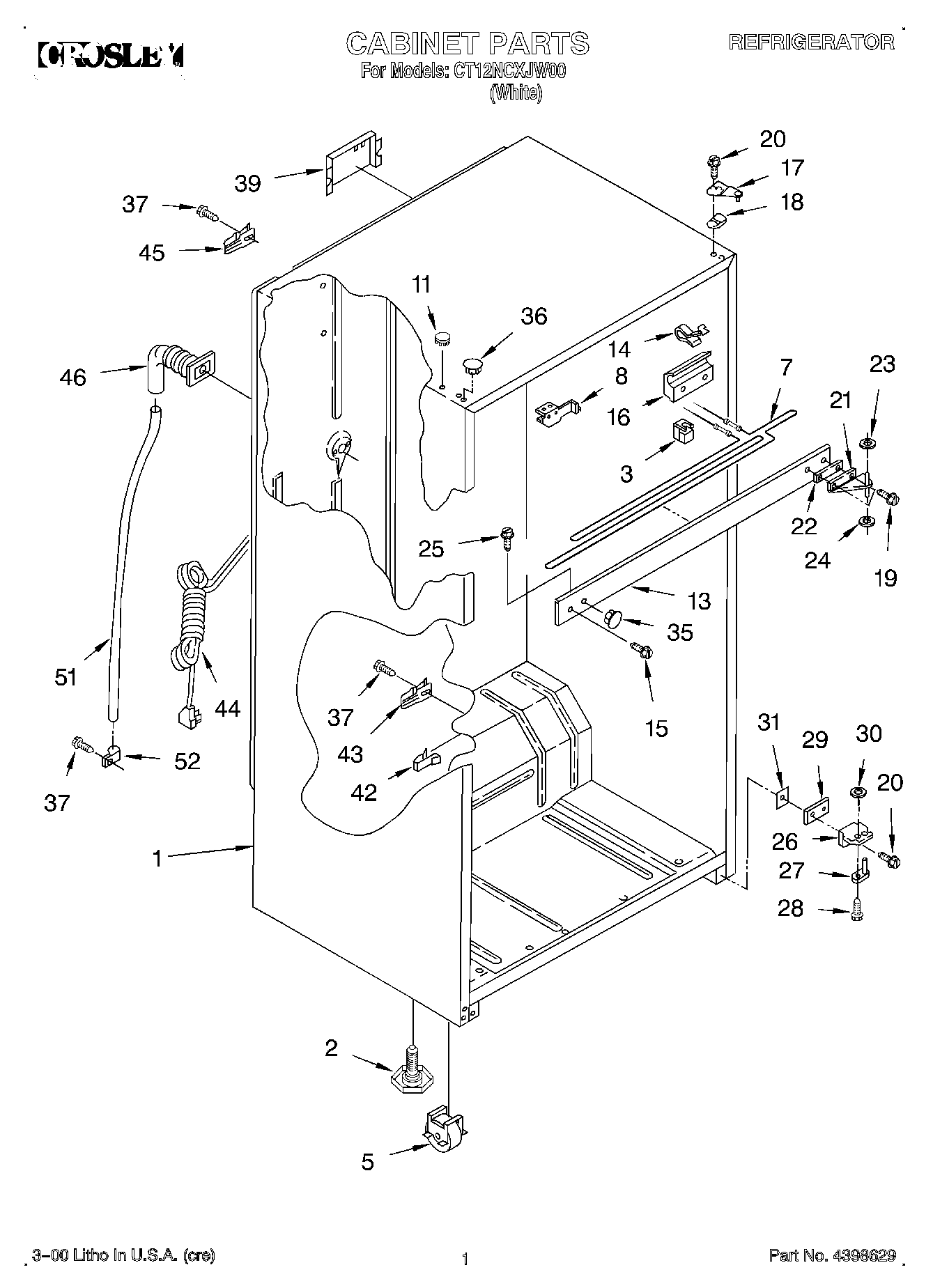

| 1 | Cabinet (Not A Serviceable Part) |
| 2 | W11117769 Whirlpool Refrigerator Leveler |
| 3 | Spacer |
| 5 | Roller, Rear |
| 7 | Heater, Mullion |
| 8 | Center Rail, Bracket |
| 11 | 940014 Whirlpool Refrigerator Primary Button Plug |
| 13 | Center Rail |
| 14 | Breaker, Trim Clip |
| 16 | Center, Rail Shim (2) |
| 17 | Shim, Hinge Top |
| 18 | Shim, Hinge |
| 19 | WP999367 Whirlpool Refrigerator Screw |
| 20 | WP489497 Whirlpool Screw |
| 21 | Hinge, Center |
| 22 | Shim, Hinge Center |
| 24 | WP488296 Whirlpool Washer Refrigerator |
| 25 | WP488729 Whirlpool Refrigerator Door Screw |
| 26 | Hinge Butt, Bottom |
| 27 | Hinge Pin, Bottom |
| 28 | Screw 10-32 x 5/16 |
| 29 | Shim, Bottom Hinge |
| 30 | WP487802 Whirlpool Refrigerator Washer |
| 31 | Tap Plate, Bottom |
| 35 | Hole Plug (White) |
| 36 | WP2151652 Whirlpool Refrigerator Button Plug |
| 37 | WP489464 Whirlpool Refrigerator Screw |
| 39 | Cover, Wiring |
| 42 | W10812038 Whirlpool Refrigerator Clip |
| 43 | 549193 Whirlpool Refrigerator Power Clamp |
| 44 | Cord, Service |
| 45 | Clamp |
| 46 | Fitting, Drain |
| 51 | 8316810 Whirlpool Refrigerator Drain Tube |
| 52 | 488946 Whirlpool Air Conditioner Clamp |
