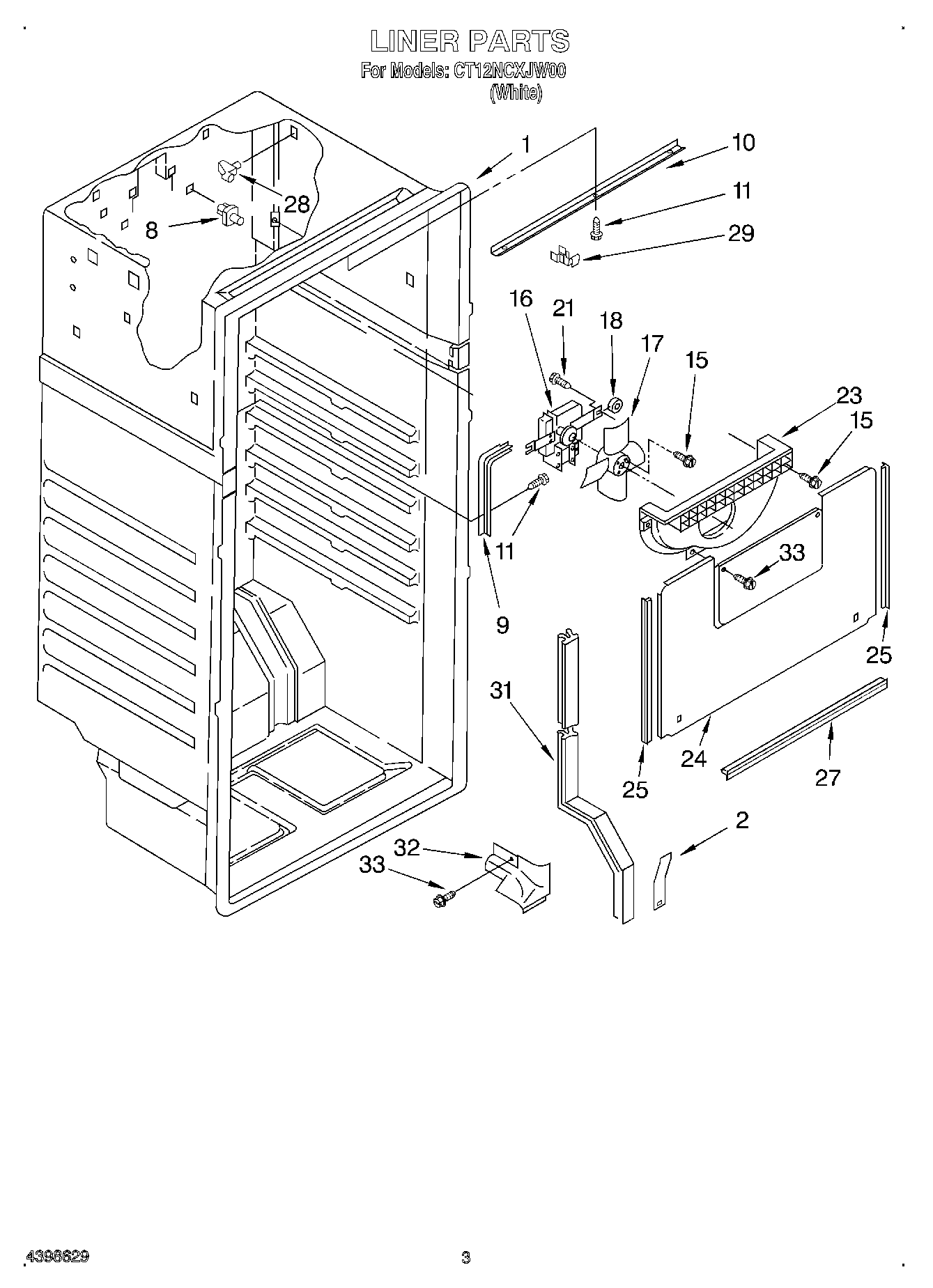

| 1 | Liner (Not A Serviceable Part) |
| 2 | Cover, Air Duct |
| 8 | Stud, Evaporator |
| 9 | Air Deflector Side |
| 10 | Air Deflector Top |
| 11 | Screw, 8-32 |
| 15 | WP489464 Whirlpool Refrigerator Screw |
| 16 | 482731 Whirlpool Refrigerator Evaporator Fan Motor Kit |
| 17 | WP1100938 Whirlpool Refrigerator Fan Blade |
| 18 | Grommet |
| 21 | Screw (2) |
| 23 | Scroll, Fan |
| 24 | Evaporator Cover |
| 25 | Gasket |
| 27 | Gasket |
| 28 | 4388405 Whirlpool Refrigerator Shelf Stud |
| 29 | Clip, Ground |
| 31 | Cover Tube, Rear |
| 32 | Cover Tube, Bottom |
| 33 | SCREW |
