CT12NCXJW00 04 – UNIT

CT12NCXJW00 04 – UNIT

Written by

in

CT12NCXJW00 04 – UNIT

Products

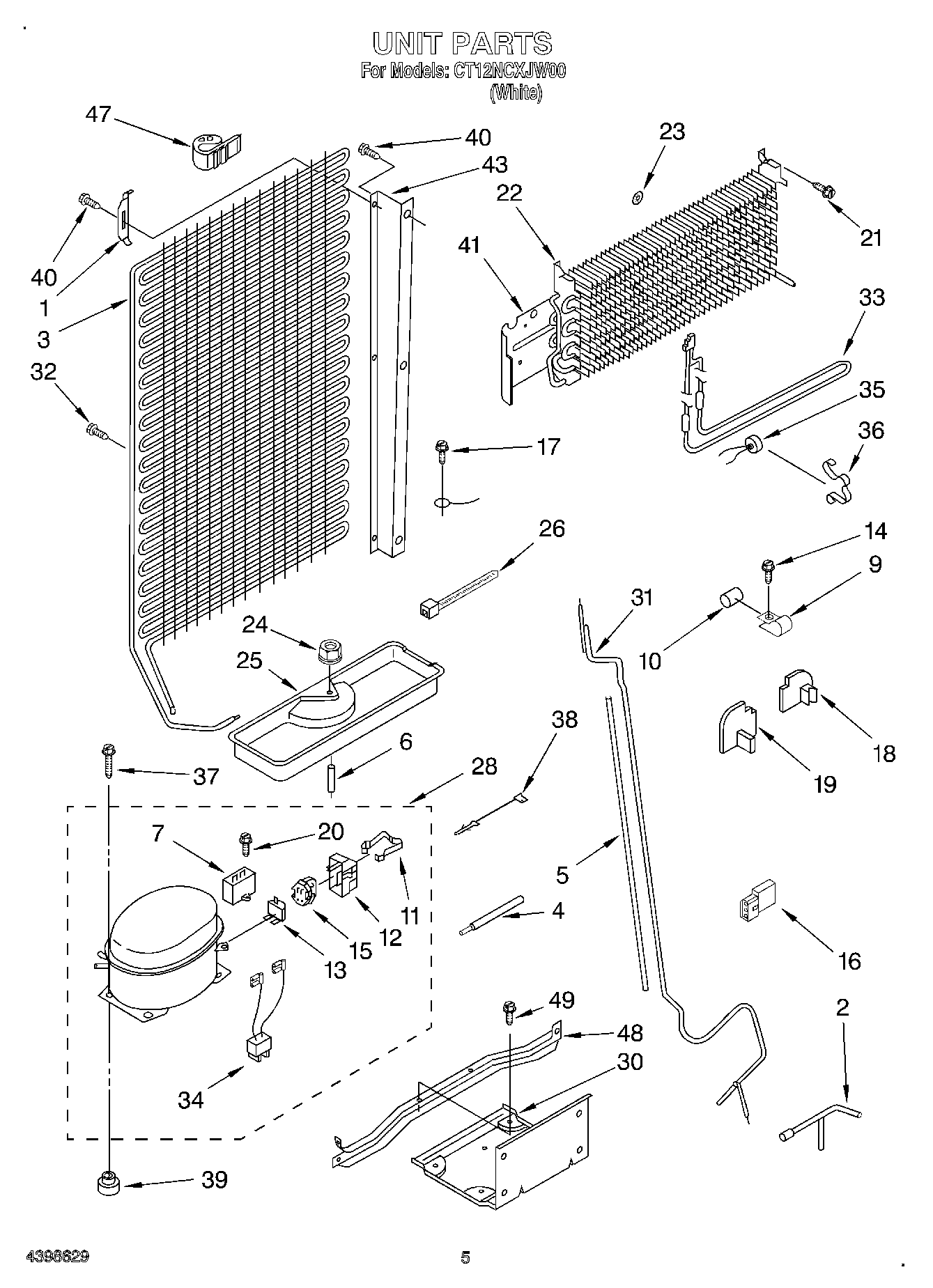

PositionProduct
1Bracket
2Tube Extension Assembly
3Condenser Assembly
4W11661102 Whirlpool Tube
5WP2002171 Whirlpool Refrigerator Sleeve
6Spacer
7Capacitor
9Clamp Tube
10Dampener (2)
12WP2162358 Whirlpool Refrigerator Terminal Cover
132176790 Whirlpool Refrigerator Overload
14WPW10141625 Whirlpool Refrigerator Screw Assembly
15WP2262181 Whirlpool Refrigerator Start Relay
16WP717253 Whirlpool Dishwasher Connector
17303776 Whirlpool Dishwasher Screw
18Side Block, Right Evaporator
19Side Block, Left Evaporator
20W11693756 Whirlpool Screw Assembly
22Evaporator
23Retainer, Evaporator
24285002 Whirlpool Nut
25Tray, Evaporator
26WPW10339879 Whirlpool Wire Tie
28876765 Whirlpool Primary Mounting Kit Refrigerator
28Installation Kit
28W10309988 Whirlpool Refrigerator Compressor
30Unit Mounting Plate
31Exchanger, Heat
33Heater, Defrost
34WP2172890 Whirlpool Refrigerator Wire
35Bi-Metal, Defrost
36Clamp
38Overload Wiring (Red)
38Overload Wiring (White)
39876811 Whirlpool Grommet
40Screw
41Heat Shield, Evaporator
43Channel, Condenser (Right)
43Channel, Condenser (Left)
47Bumper (2)
48Unit Mounting Rail
49VALVE, ACCESS (5/8“)
49VALVE, ACCESS (1/2“)
49WP978025 Whirlpool Refrigerator Valve
49978030 Whirlpool Refrigerator Valve
49978027 Whirlpool Refrigerator Primary Valve
49WP965173 Whirlpool Dishwasher Screw
49978026 Whirlpool Refrigerator Primary Valve
49876764 Whirlpool Refrigerator Primary Valve
