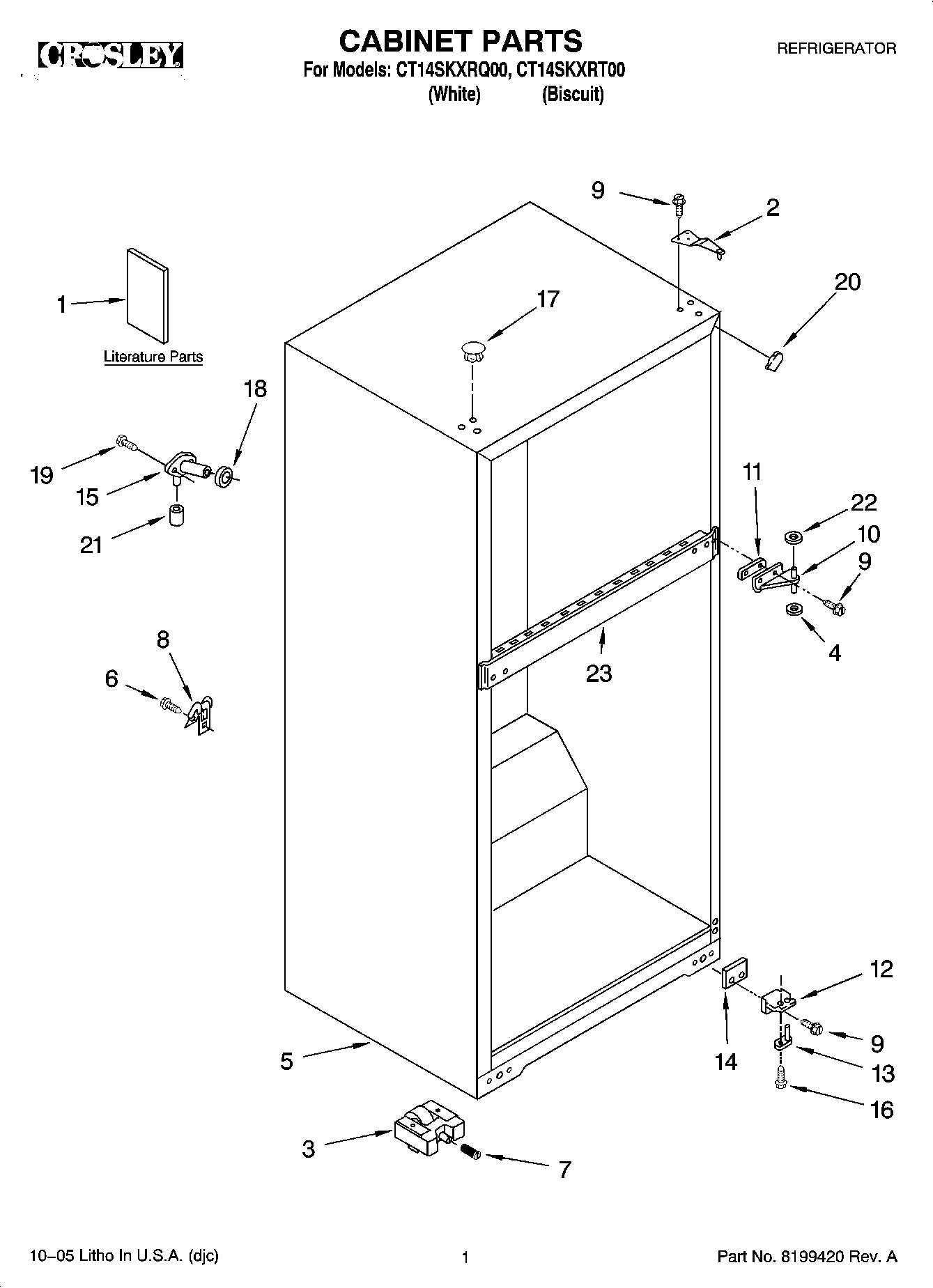

CT14SKXRT00 01 – CABINET PARTS

Products

Position	Product
1	Use & Care Guide
1	Service & Wiring Sheet
1	Energy Label
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	WP487576 Whirlpool Washer
5	Cabinet (Not A Serviceable Part)
6	WP489442 Whirlpool Refrigerator Screw
7	2222100 Whirlpool Refrigerator Screw
8	549193 Whirlpool Refrigerator Power Clamp
9	WP489497 Whirlpool Screw
10	WP2166037 Whirlpool Refrigerator Door Hinge
11	2166043 Whirlpool Refrigerator Shim
12	WP2325482 Whirlpool Bottom Hinge
13	Hinge-Pin Bott.
14	WP2201567 Whirlpool Hinge Shim
15	WP2196157 Whirlpool Fill Tube
16	WP3428970 Whirlpool Refrigerator Screw
17	WP2151652 Whirlpool Refrigerator Button Plug
17	Hole Plug (6) (Biscuit)
18	WP1106508 Whirlpool Refrigerator Gasket
19	WP488729 Whirlpool Refrigerator Door Screw
20	W10859322 Whirlpool Refrigerator Filler
20	2202282 Whirlpool Refrigerator Filler
21	WP487996 Whirlpool Refrigerator Cap Tube
22	WP487802 Whirlpool Refrigerator Washer
23	Rail Center (Not Serviced)
