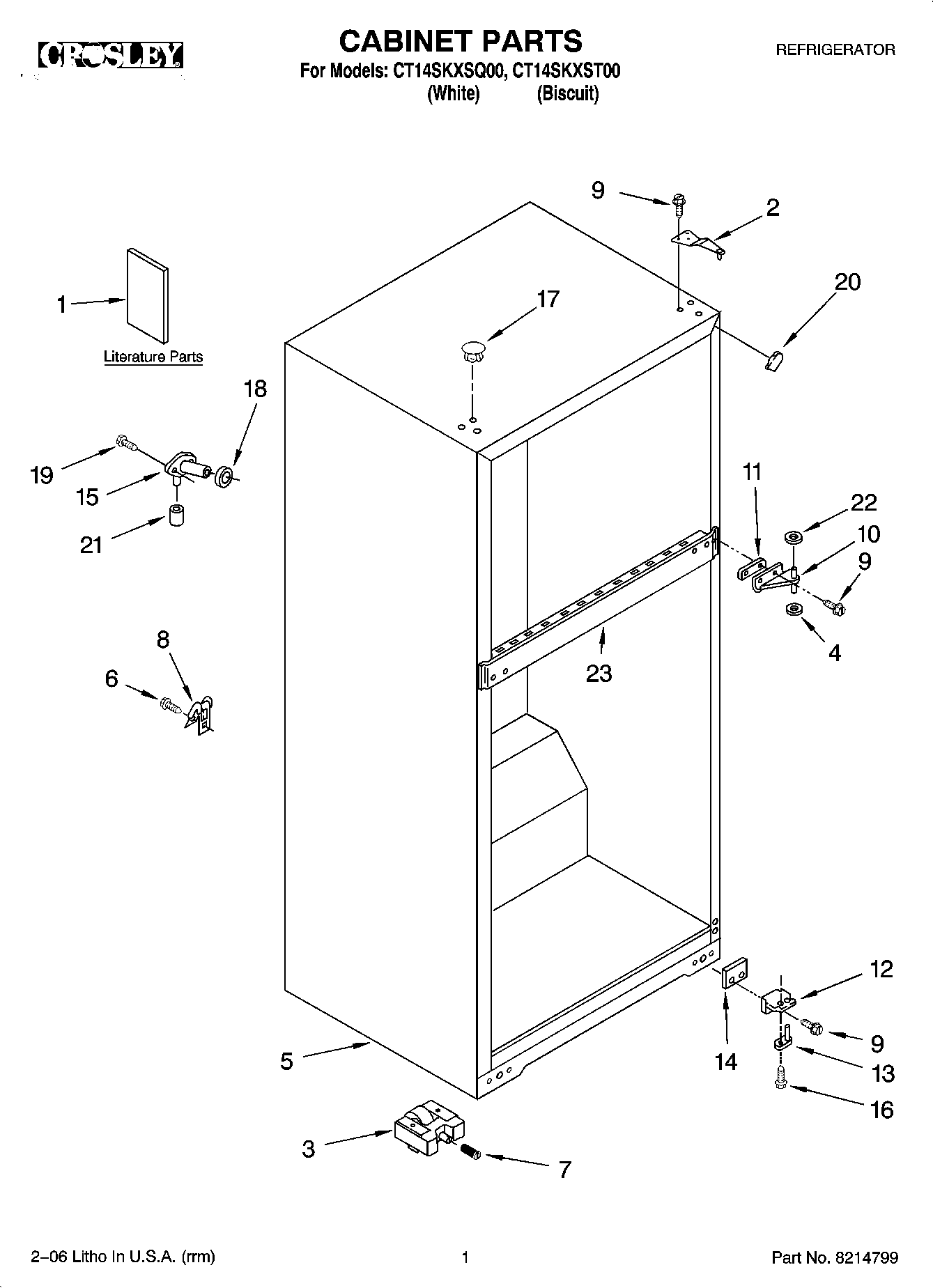

CT14SKXST00 01 – CABINET PARTS

CT14SKXST00 01 – CABINET PARTS

Written by

in

CT14SKXST00 01 – CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Energy Label
1Service & Wiring Sheet
1Use & Care Guide
1DO-IT-YOURSELF MANUAL, REF./ FZR.
2WP2261963 Whirlpool Refrigerator Door Hinge
32324094 Whirlpool Refrigerator Cabinet Roller
4WP487576 Whirlpool Washer
5Cabinet, (Not A Serviceable Part)
6WP489442 Whirlpool Refrigerator Screw
72222100 Whirlpool Refrigerator Screw
8549193 Whirlpool Refrigerator Power Clamp
9WP489497 Whirlpool Screw
10WP2166037 Whirlpool Refrigerator Door Hinge
112166043 Whirlpool Refrigerator Shim
12WP2325482 Whirlpool Bottom Hinge
13Hinge-Pin Bott.
14WP2201567 Whirlpool Hinge Shim
15WP2196157 Whirlpool Fill Tube
16WP3428970 Whirlpool Refrigerator Screw
17WP2151652 Whirlpool Refrigerator Button Plug
17Hole Plug (6) (Biscuit)
18WP1106508 Whirlpool Refrigerator Gasket
19WP488729 Whirlpool Refrigerator Door Screw
202202282 Whirlpool Refrigerator Filler
20W10859322 Whirlpool Refrigerator Filler
21WP487996 Whirlpool Refrigerator Cap Tube
22WP487802 Whirlpool Refrigerator Washer
23Rail, Center (Not Serviced)
