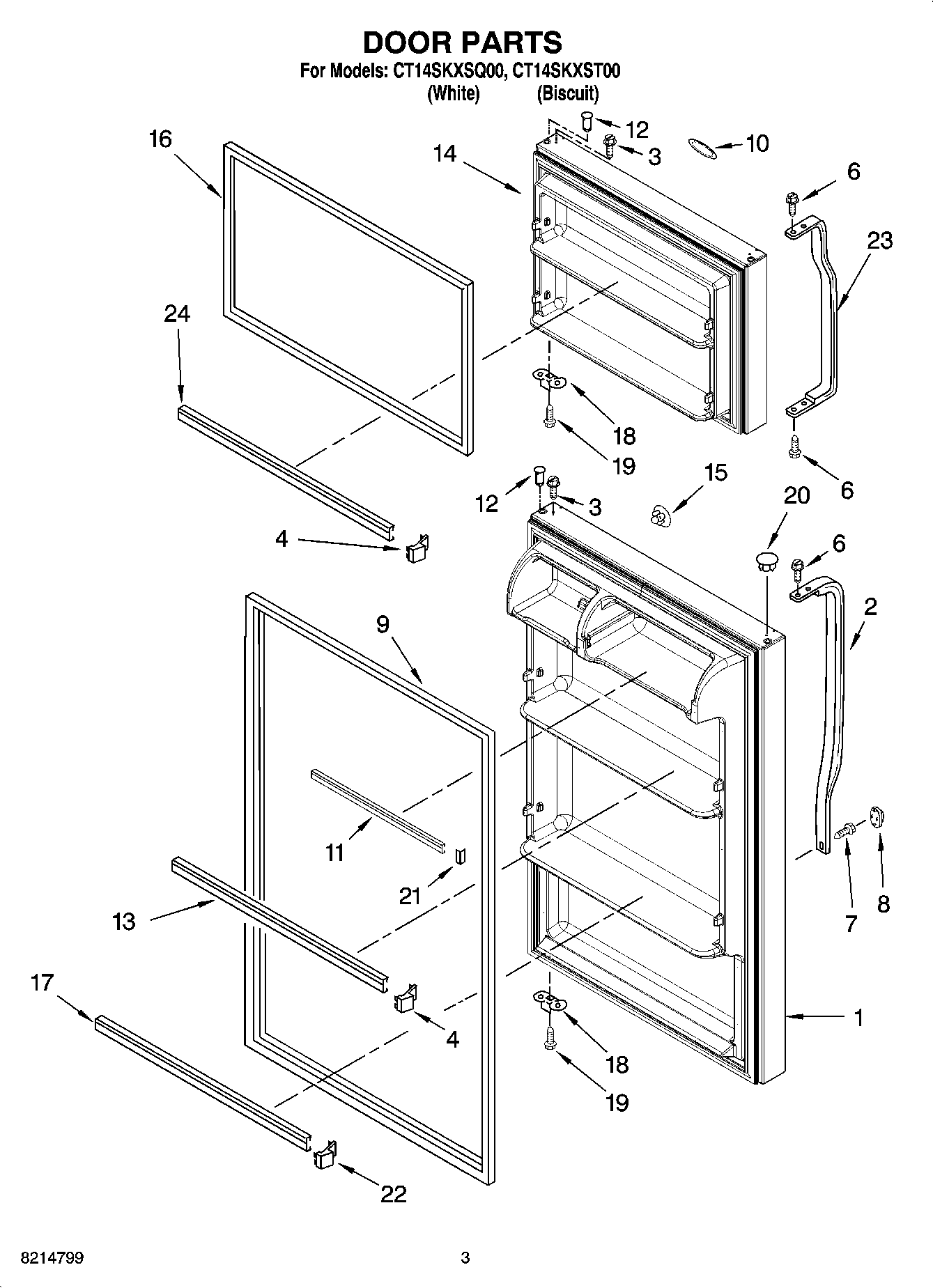

CT14SKXST00 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9) (White)
1	Refrigerator Door (Includes Item 9) (Biscuit)
2	HANDLE
2	WP2221946T Whirlpool Refrigerator Handle
3	WP8281206 Whirlpool Refrigerator Screw
4	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
6	WP489357 Whirlpool Recessed Screw
7	WP8281146 Whirlpool Screw
8	Cover, Screw (Biscuit)
8	WP2202819W Whirlpool Refrigerator Cover
9	WP2319265T Whirlpool Refrigerator FIP Gasket
10	Nameplate (Biscuit)
10	Nameplate (White)
11	W11129820 Whirlpool Refrigerator Door Trim
12	WP2183003 Whirlpool Thimble
14	Freezer Door (Includes Item 16) (Biscuit)
14	Freezer Door (Includes Item 16) (White)
15	WP2200936 Whirlpool Refrigerator Handle Plug
15	WP2189000 Whirlpool Refrigerator Handle Plug
16	WP2319263T Whirlpool Refrigerator FIP Gasket
17	WP2266738 Whirlpool Refrigerator Door Trim
18	Bracket, Door Stop
19	WP488921 Whirlpool Refrigerator Screw
20	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
20	WP2212649 Whirlpool Refrigerator Button Plug
21	ENDCAP-TRM
22	ENDCAP
23	HANDLE
23	WP2215015 Whirlpool Refrigerator Handle
24	WP2266727 Whirlpool Refrigerator Door Trim
