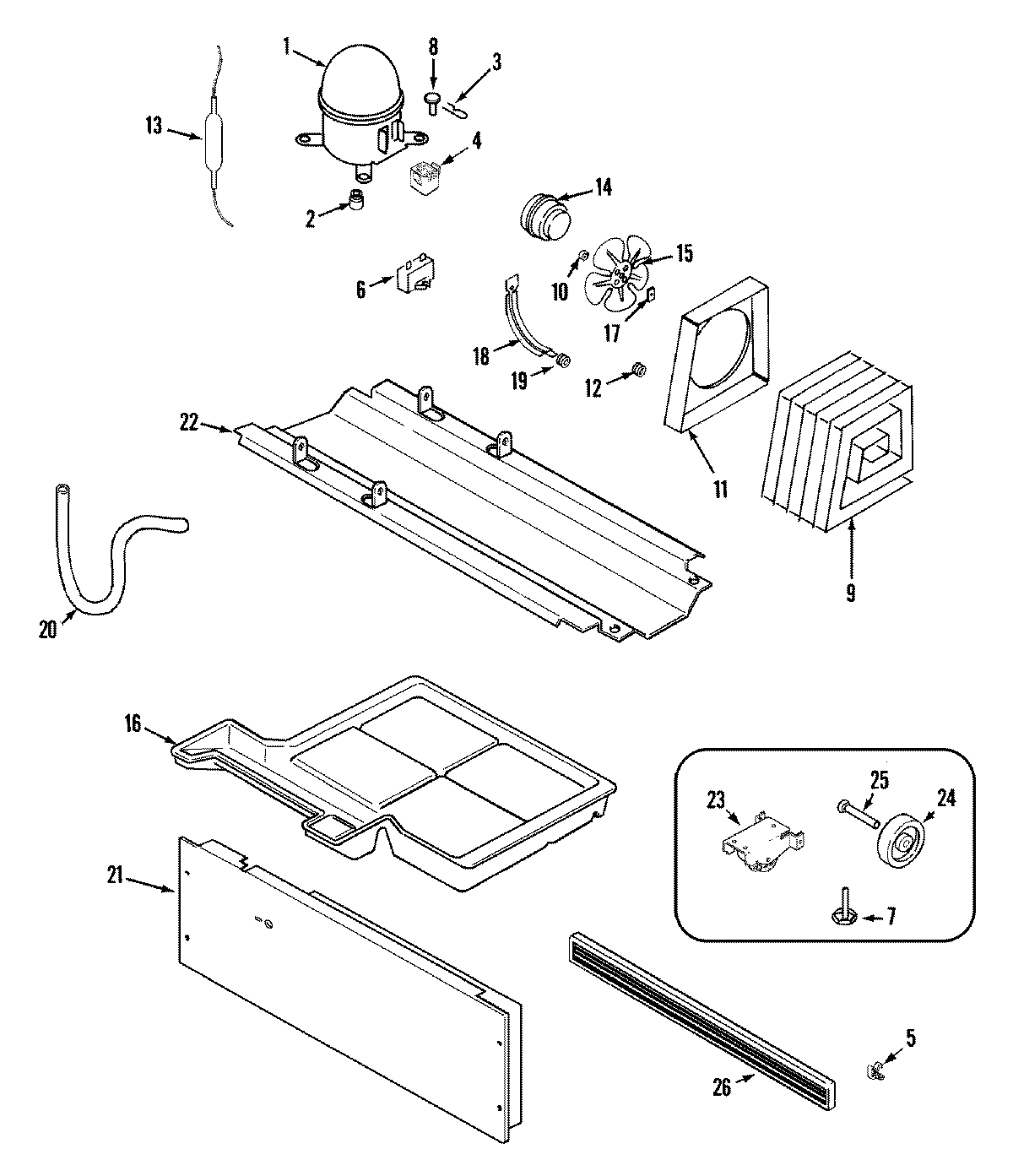

CT15G4W 05 – COMPRESSOR (REV 17)

Products

Position	Product
NI	MAY 12001492
NI	MAY 61003420
NI	MAY 16008421
1	MAY 61004917
1	W10160407 Whirlpool Refrigerator Compressor
2	GROMMET (SERVICE)
3	MAY 61005561
4	MAY 61006187
4	12002794 Whirlpool Refrigerator Overload Relay Kit
5	MAY 61001975
6	WP65889-4 Whirlpool Refrigerator Capacitor
7	MAY 61002014
8	MAY 52656-2
9	MAY 61005427
9	MAY 61004378
10	MAY 61001686
11	MAY 61001941
12	MAY 61002033
13	WPW10143759 Whirlpool Dryer Filter
14	MAY 65275-33
14	833697 Whirlpool Condenser Fan Motor
15	MAY 60683-1
16	MAY 61004095
16	WP489478 Whirlpool Refrigerator Screw
17	WP486692 Whirlpool Refrigerator Nut
18	MAY 69181-1
19	GROMMET, BRACKET
20	MAY 61002214
21	MAY 61005388
21	MAY 61004653
21	MAY 65275-1
22	MAY 61005242
22	WP67006715 Whirlpool Refrigerator Screw
23	MAY 61005216
23	SCREW
24	WP61003826 Whirlpool Wheel
25	WP61002104 Whirlpool Refrigerator Pin Wheel
26	MAY 61002680
