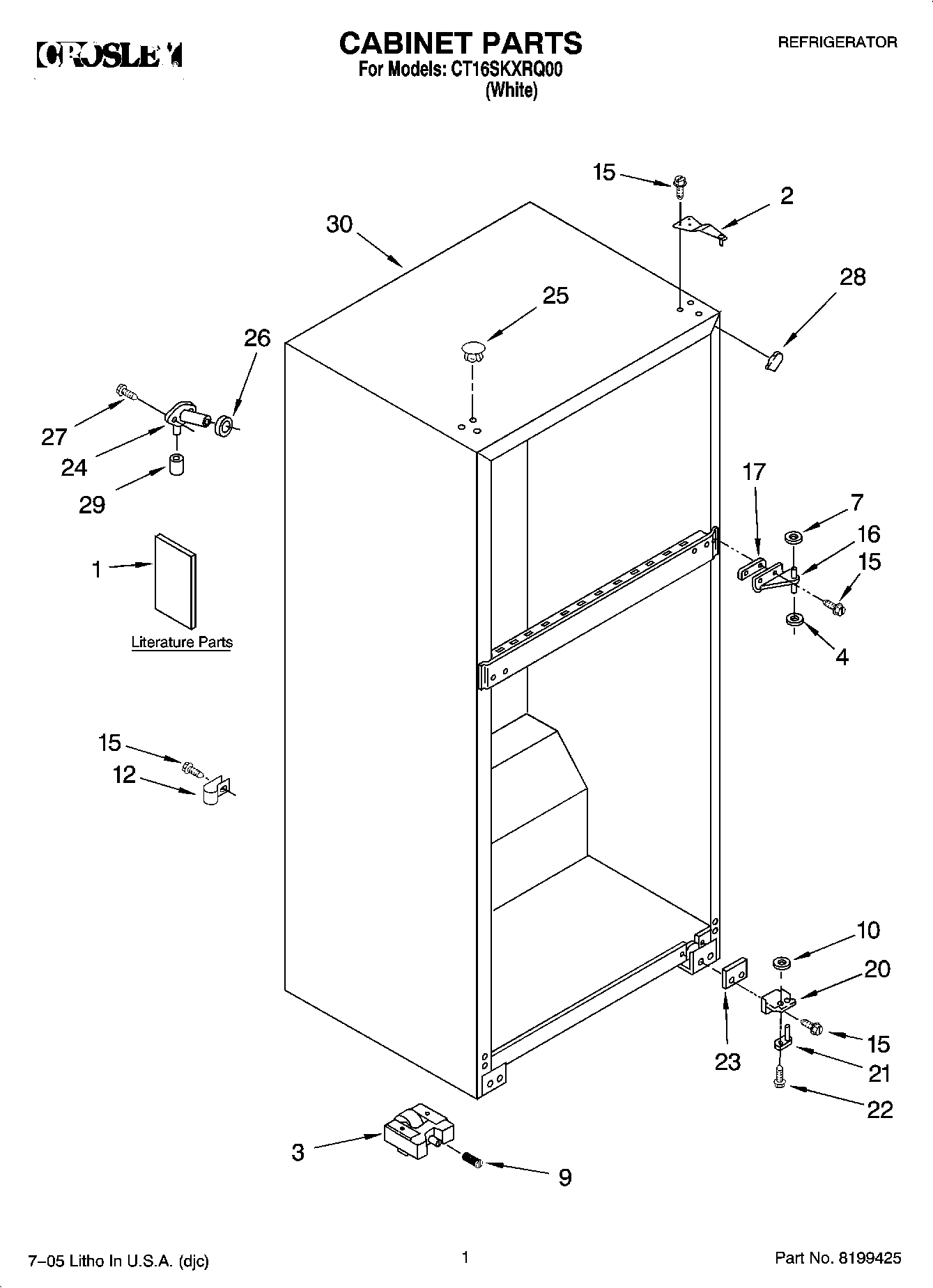

CT16SKXRQ00 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Service & Wiring Sheet
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	WP489467 Whirlpool Hinge Shim
7	WP487802 Whirlpool Refrigerator Washer
9	2222100 Whirlpool Refrigerator Screw
10	WP488296 Whirlpool Washer Refrigerator
12	549193 Whirlpool Refrigerator Power Clamp
15	WP489497 Whirlpool Screw
16	WP2166037 Whirlpool Refrigerator Door Hinge
17	2166043 Whirlpool Refrigerator Shim
20	WP2325482 Whirlpool Bottom Hinge
21	Hinge-Pin Bott.
22	WP3428970 Whirlpool Refrigerator Screw
23	WP2201567 Whirlpool Hinge Shim
24	WP2196157 Whirlpool Fill Tube
25	WP2151652 Whirlpool Refrigerator Button Plug
26	WP1106508 Whirlpool Refrigerator Gasket
27	WP488729 Whirlpool Refrigerator Door Screw
28	W10859322 Whirlpool Refrigerator Filler
29	WP487996 Whirlpool Refrigerator Cap Tube
30	Cabinet (Not A Serviceable Part)
