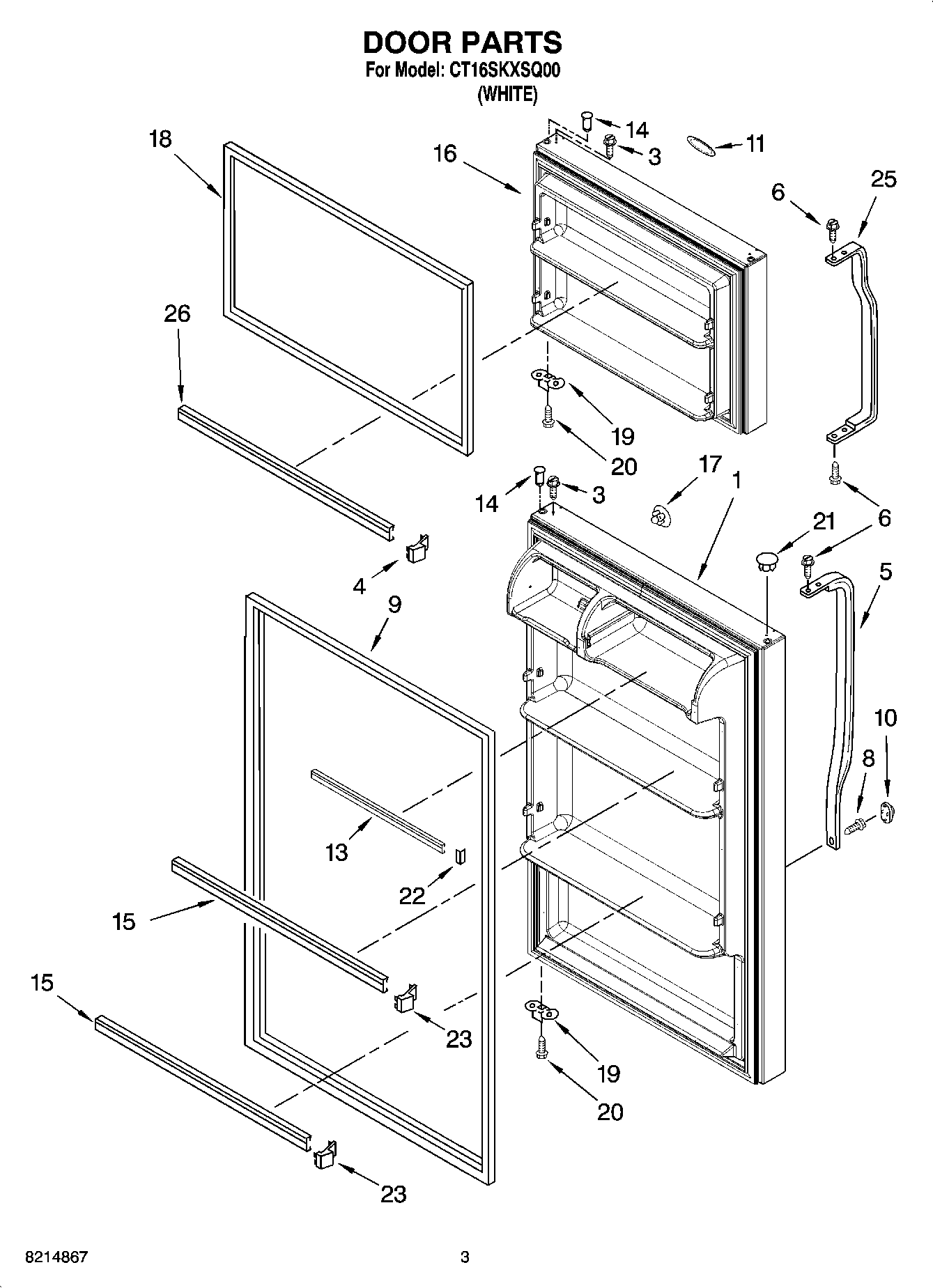

CT16SKXSQ00 02 – DOOR PARTS

Products

Position	Product
1	L2316145W Whirlpool Refrigerator Door FIP WH
3	WP8281206 Whirlpool Refrigerator Screw
4	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
5	HANDLE
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	WP2319266T Whirlpool Refrigerator FIP Gasket
10	WP2202819W Whirlpool Refrigerator Cover
11	Nameplate (White)
13	W11129820 Whirlpool Refrigerator Door Trim
14	WP2183003 Whirlpool Thimble
15	WP2266738 Whirlpool Refrigerator Door Trim
16	Freezer Door (Includes Illus. 14,18 & 24)
17	WP2189000 Whirlpool Refrigerator Handle Plug
18	WP2319263T Whirlpool Refrigerator FIP Gasket
19	W11745278 Whirlpool Bracket
20	WP488921 Whirlpool Refrigerator Screw
21	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
22	ENDCAP-TRM
23	ENDCAP
25	HANDLE
26	WP2266727 Whirlpool Refrigerator Door Trim
