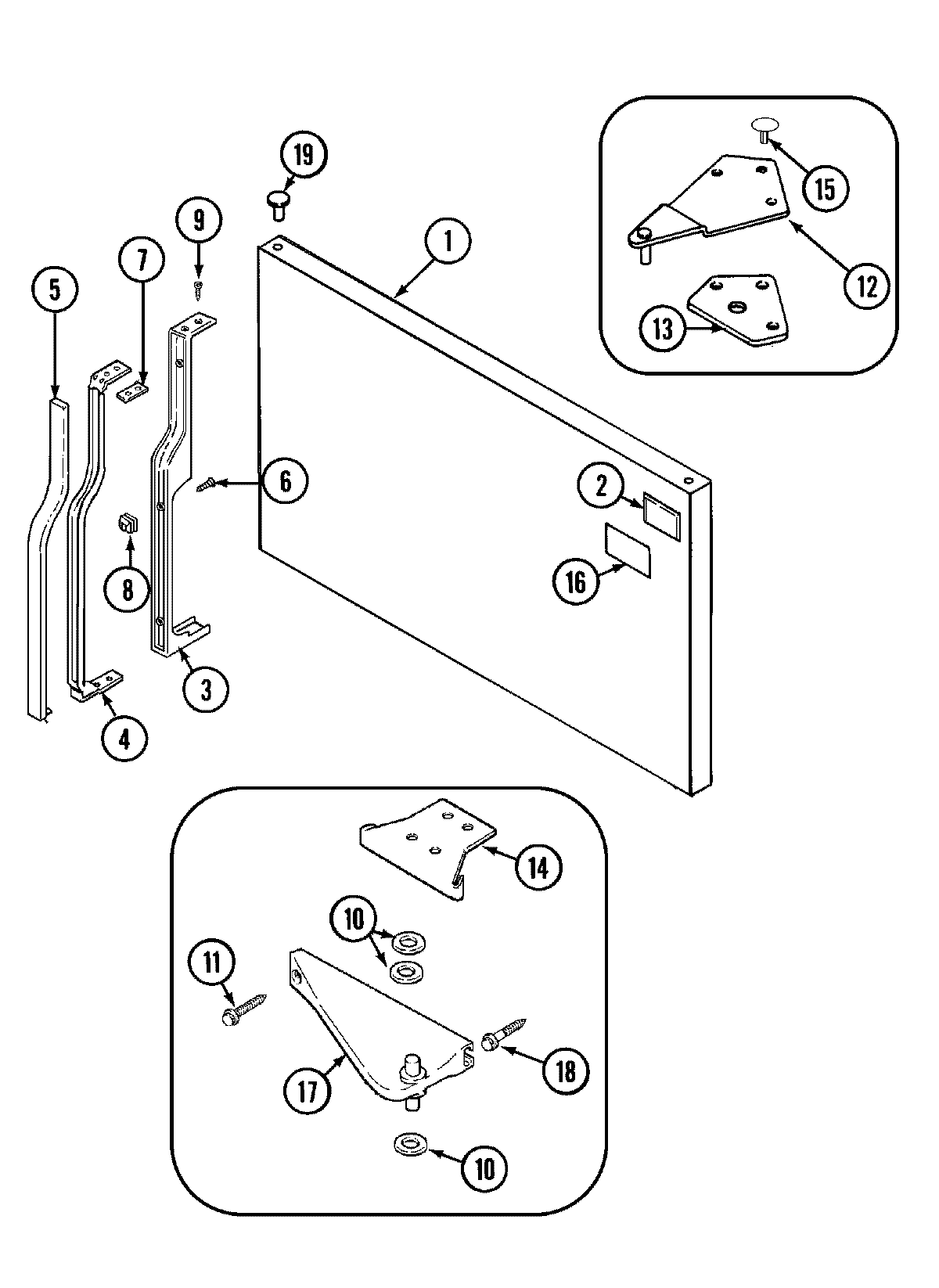

CT17B3W 05 – FREEZER OUTER DOOR

CT17B3W 05 – FREEZER OUTER DOOR

Written by

in

CT17B3W 05 – FREEZER OUTER DOOR

Products

PositionProduct
1MAY 61002201
2BEZEL, NAMEPLATE (WHT)
3MAY 61001795
361005399 Whirlpool Refrigerator White Door Handle
4MAY 61002247
5MAY 61002248
6MAY 415033-1
7MAY 67934-1
8MAY 69743-1
9MAY 61002924
10WP61002231 Whirlpool Refrigerator Washer Hinge
123400112 Whirlpool Refrigerator Screw
12MAY 61001971
13MAY 61001922
14MAY 61004481
14W10856122 Whirlpool Refrigerator Screw
15MAY 61001923
16MAY 61002078
17MAY 61001920
18MAY 61002025
19MAY 61001908
