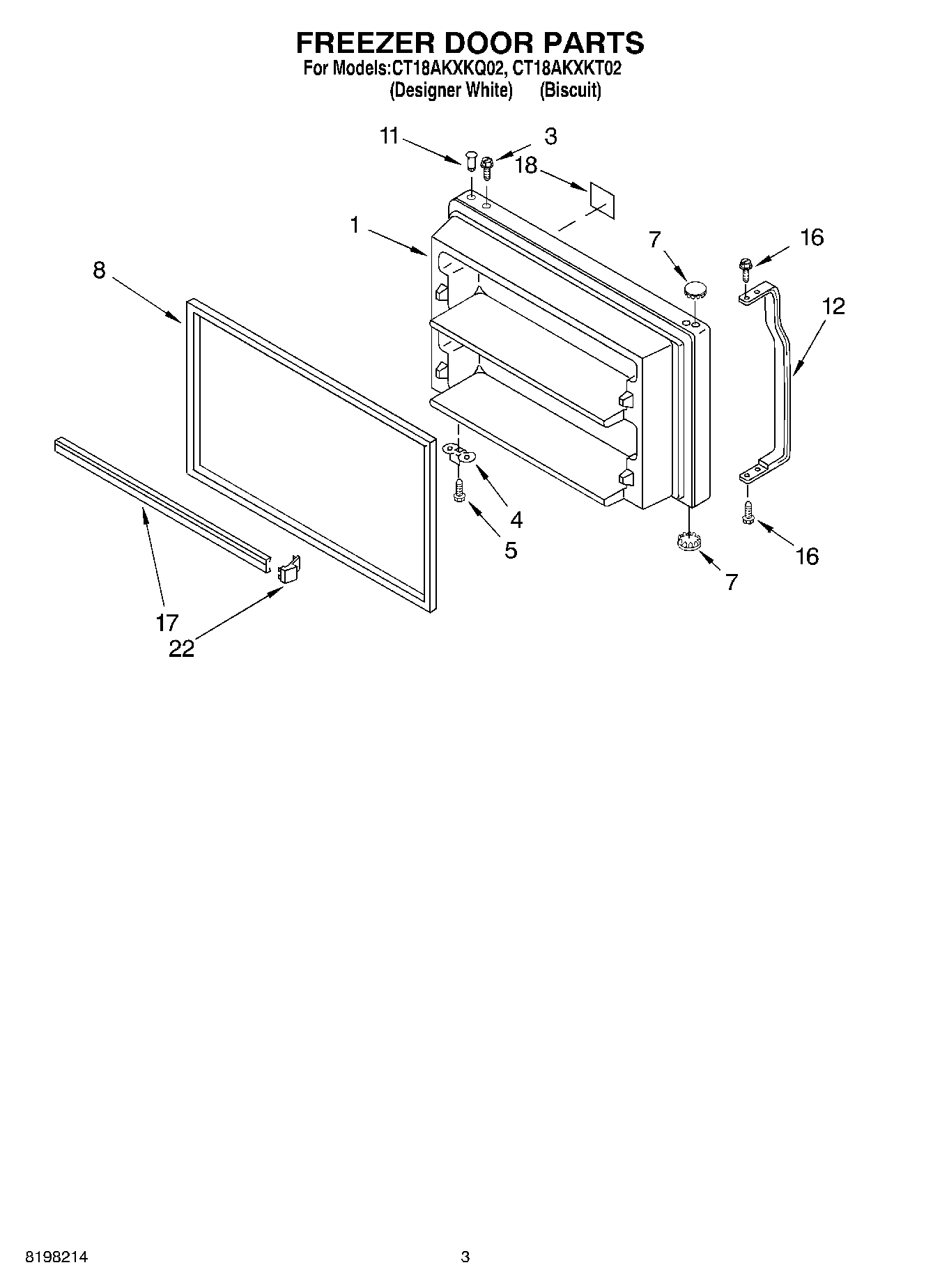

CT18AKXKQ02 02 – FREEZER DOOR

CT18AKXKQ02 02 – FREEZER DOOR

Written by

in

CT18AKXKQ02 02 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
1Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82159327 Whirlpool Refrigerator Door Gasket
11WP2183003 Whirlpool Thimble
12Handle, F.C. (Biscuit)
12WP2202806W Whirlpool Refrigerator Handle
16WP489357 Whirlpool Recessed Screw
17Trim-Door (2)
18Clip, Snap-In (2)
18Nameplate
22WP2156003 Whirlpool Refrigerator Door Shelf End Cap
