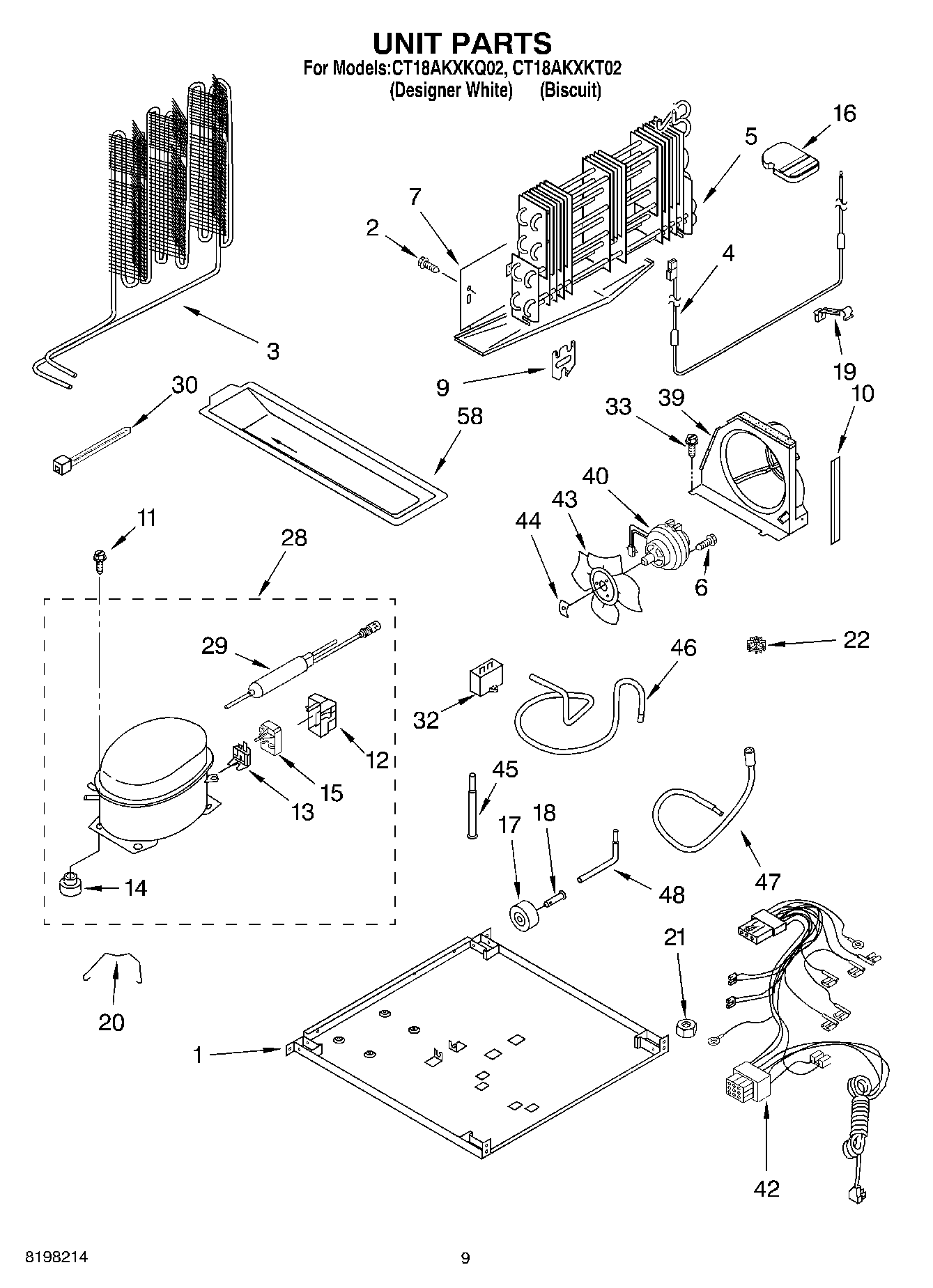

CT18AKXKQ02 06 – UNIT, OPTIONAL

CT18AKXKQ02 06 – UNIT, OPTIONAL

Written by

in

CT18AKXKQ02 06 – UNIT, OPTIONAL

Products

PositionProduct
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WP8281196 Whirlpool Screw
7Drain Pan
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP4387938 Whirlpool Refrigerator Overload
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
158201769 Whirlpool Refrigerator Compressor Relay Overload Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
20Bale Strap, Compressor
21Nut (Not Serviced)
22Grommet
28W10823815 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WPW10662129 Whirlpool Refrigerator Run Capacitor
333400518 Whirlpool Oven Foot Mount Screw
39Air Baffle
40W10822259 Whirlpool Refrigerator Condenser Fan Motor
42Wire Assy. Unit
43Blade, Fan
44WP486692 Whirlpool Refrigerator Nut
45Tube, Transition
46Tube, Discharge
472205293 Whirlpool Refrigerator Tube
48W11676464 Whirlpool Tube
58Torx Key
58VALVE, ACCESS (5/8“)
5872032 Whirlpool Touch Up Paint Black
58285006 Whirlpool Spray
58WP503695 Whirlpool Refrigerator Sealer
58876370 Whirlpool Refrigerator Insulation
58833938 Whirlpool Refrigerator Terminal
58606755 Whirlpool Refrigerator Bag
58511873 Whirlpool Refrigerator Paint
58350942 Whirlpool Spray Paint
58212643 Whirlpool Refrigerator Permagum Sealer
58Almond (Uncut)
58WP72107 Whirlpool Touchup
58799344 Whirlpool Refrigerator Paint
5872017 Whirlpool Appliance Touch-Up Paint White
58350956 Whirlpool Spray Assembly
58876764 Whirlpool Refrigerator Primary Valve
58978026 Whirlpool Refrigerator Primary Valve
58WPL 876029
58WPL 799833
58WPL 799832
58CEMENT, ALUMILASTIC (1 1/4 OZ.)
58TAPE, VINYL (3/4 X 108“)
58VALVE, ACCESS (1/2“)
58WP978025 Whirlpool Refrigerator Valve
58Evaporator Tray
58978030 Whirlpool Refrigerator Valve
58WP542638 Whirlpool Refrigerator Grease
58978027 Whirlpool Refrigerator Primary Valve
58WP505587 Whirlpool Refrigerator Sealer
58350930 Whirlpool White Spray Paint
