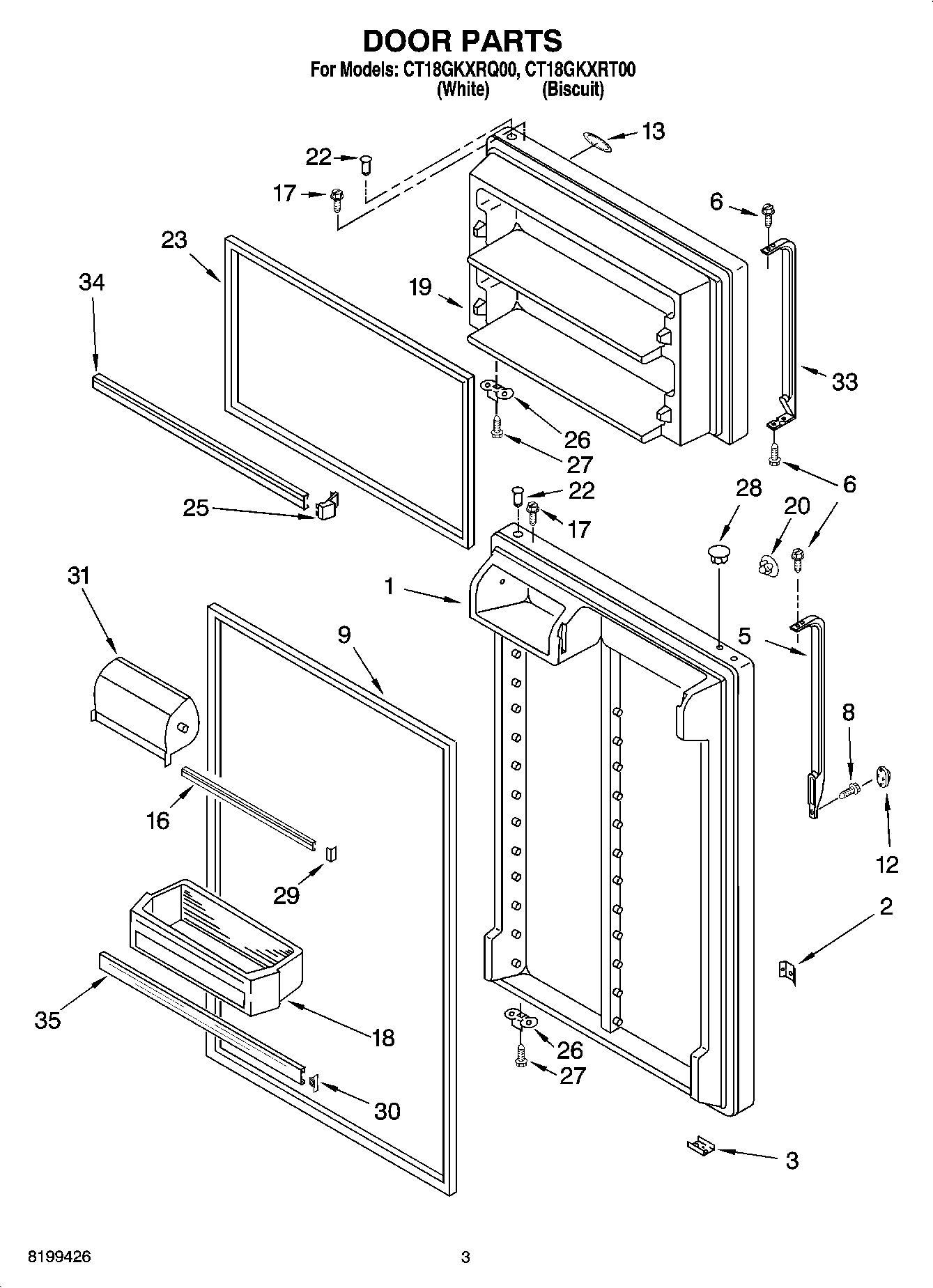

CT18GKXRQ00 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (White)
1	Refrigerator Door (Includes Illus. 3,4, 9 & 17) (Biscuit)
2	WP939101 Whirlpool Refrigerator Plate
3	W10833053 Whirlpool Refrigerator Plate
5	WP2202807W Whirlpool Handle Door
5	Handle Center (Biscuit)
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	2159057 Whirlpool Refrigerator Fresh Food Door Gasket
12	Cover, Screw (Biscuit)
12	WP2202819W Whirlpool Refrigerator Cover
13	Nameplate (Biscuit)
13	Nameplate (White)
16	TRIM-DOOR
17	WP8281206 Whirlpool Refrigerator Screw
18	WP2204810 Whirlpool Refrigerator Cantilever Bin
19	Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
19	Freezer Door (Includes Illus. 4, 17 & 18) (White)
20	WP2200936 Whirlpool Refrigerator Handle Plug
20	WP2189000 Whirlpool Refrigerator Handle Plug
22	WP2183003 Whirlpool Thimble
23	2159327 Whirlpool Refrigerator Door Gasket
25	ENDCAP
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28	WP2212649 Whirlpool Refrigerator Button Plug
29	ENDCAP-TRM
30	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
31	WP2218113 Whirlpool Dairy Door
33	WP2202806W Whirlpool Refrigerator Handle
33	Handle, F.C. (Biscuit)
34	Trim-Door (2)
35	WPW10421484 Whirlpool Refrigerator Door Trim
