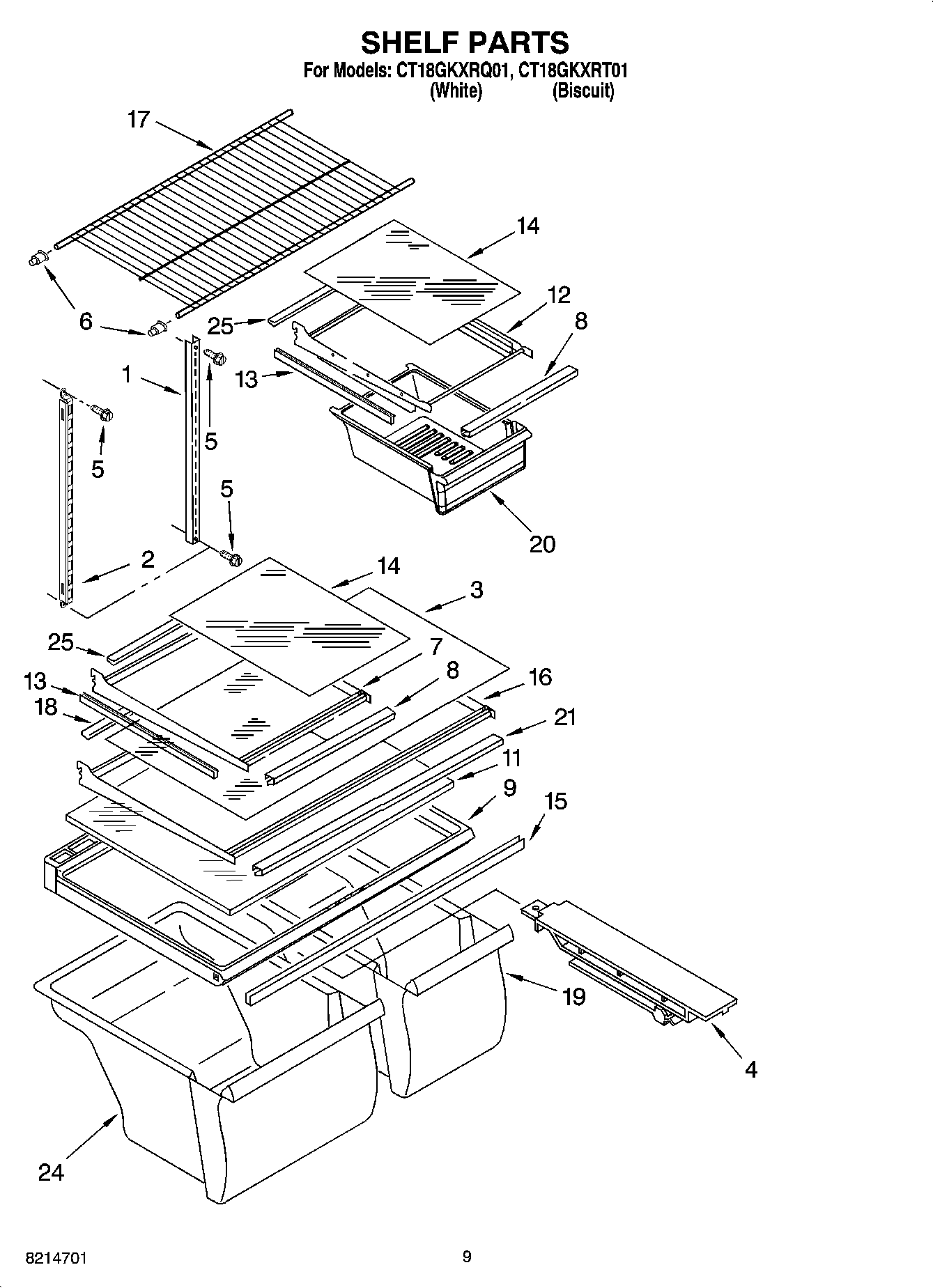

CT18GKXRQ01 05 – SHELF PARTS, OPTIONAL PARTS

CT18GKXRQ01 05 – SHELF PARTS, OPTIONAL PARTS

Written by

in

CT18GKXRQ01 05 – SHELF PARTS, OPTIONAL PARTS

Products

PositionProduct
350930 Whirlpool White Spray Paint
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
WPL ARI22325A8
WPL ARI22324A4
WPL ARI22323A7
WPL ARI22322A6
WPL ARI22326A4
Torx Key
WP542638 Whirlpool Refrigerator Grease
799344 Whirlpool Refrigerator Paint
212643 Whirlpool Refrigerator Permagum Sealer
72017 Whirlpool Appliance Touch-Up Paint White
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
1Shelf, Ladder (2)
2Shelf, Ladder Center
3Glass, Full Shelf
4WP2163835 Whirlpool Track Assembly
5WP489478 Whirlpool Refrigerator Screw
62163762 Whirlpool Refrigerator Cup Assembly
7Shelf, Cantilever (Complete)
7Shelf, Catnilever
8Trim, Shelf Front
9WP2314548 Whirlpool Refrigerator Cover
11WP2169921 Whirlpool Refrigerator Glass Shelf
12Shelf, Cantilever Meat Pan (Complete)
12Shelf, Cantilever Meat Pan
13Trim, Shelf Side
14Glass, Half Shelf
15WP2172748 Whirlpool Drawer Support
16(Complete Shelf Not Shown Includes Items 3,13,16,18 & 21)
16Shelf, Full Cantilever
17Shelf, Freezer
19W10856580 Whirlpool Crisper Pan
20PAN-MEAT
21Trim, Shelf (Front)
24W10854037 Whirlpool Refrigerator Crisper Pan
25WP2188689 Whirlpool Refrigerator Shelf Trim
